4Up Computer To Plate CTP Offset Pre-Printing Solution

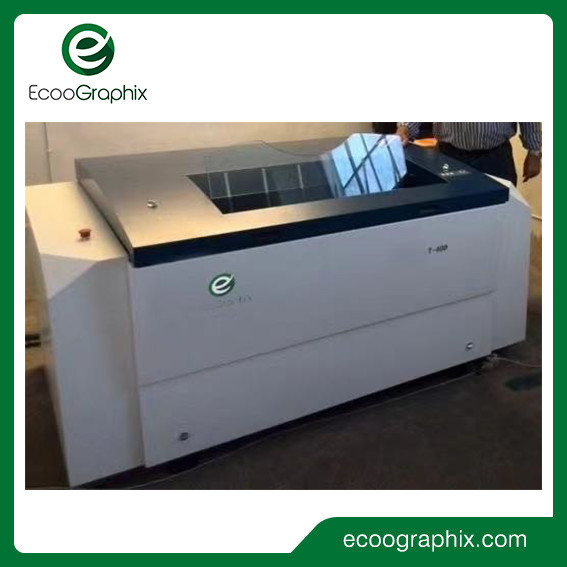

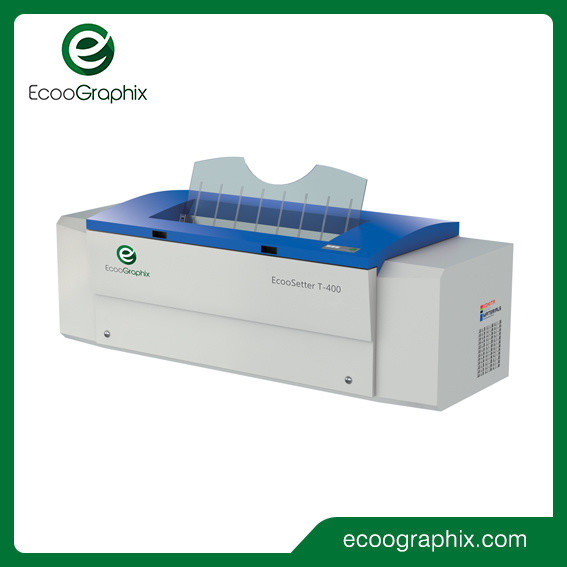

ECOO T-400 Series Thermal CTP Specifications
Model
T-400F, T-400S, T-400E
Exposing Method
External Drum
Imaging System
48-channel, 32-channel, 24-channel,
Discrete 830nm laser diode
Throughput
28plates/hour, 22plates/hour, 16plates/hour,
800mm x 660mm, 2400dpi
Plate Sizes
Max. 800mm x 690mm, Min. 400mm x 300mm
Exposing Size
Max. 800mm x 646mm, Min. 260mm x 284mm
Media Type
Positive 830nm thermal CTP plate
Plate Thickness
0.15mm to 0.30mm
Resolution
2400dpi
Repeatablity
±5μm (Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0
Plate Loading
Semi automatic
Net Weight
800kg
Machine Size (WxLxH)mm
1900x1200x1000
Power Supply
Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
| ECOO T-400 Series Thermal CTP Specifications | |||
| Model | T-400F | T-400S | T-400E |
| Exposing Method | External Drum | ||
| Imaging System | 48-channel | 32-channel | 24-channel |
| Discrete 830nm laser diode | |||
| Throughput | 28plates/hour | 22plates/hour | 16plates/hour |
| 800mm x 660mm, 2400dpi | |||
| Plate Sizes | Max. 800mm x 690mm, Min. 400mm x 300mm | ||
| Exposing Size | Max. 800mm x 646mm, Min. 260mm x 284mm | ||
| Media Type | Positive 830nm thermal CTP plate | ||
| Plate Thickness | 0.15mm to 0.30mm | ||
| Resolution | 2400dpi | ||
| Repeatablity | ±5μm (Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%) | ||
| Interface | USB 2.0 | ||
| Plate Loading | Semi automatic | ||
| Net Weight | 800kg | ||
| Machine Size (WxLxH)mm | 1900x1200x1000 | ||
| Power Supply | Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW | ||
| Environment | Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70% | ||
|
1) What are your main products ?
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.
|
|
2) Where is your factory ?
You are warmly welcome to visit our factory! |
|
3) What is your warranty for the CTPs ?
|
|
4) What is the lead time ?
|
|
5) Can you also supply the Workflow and RIP ?
|
|
6) What about the installation and after-sales technician support ?

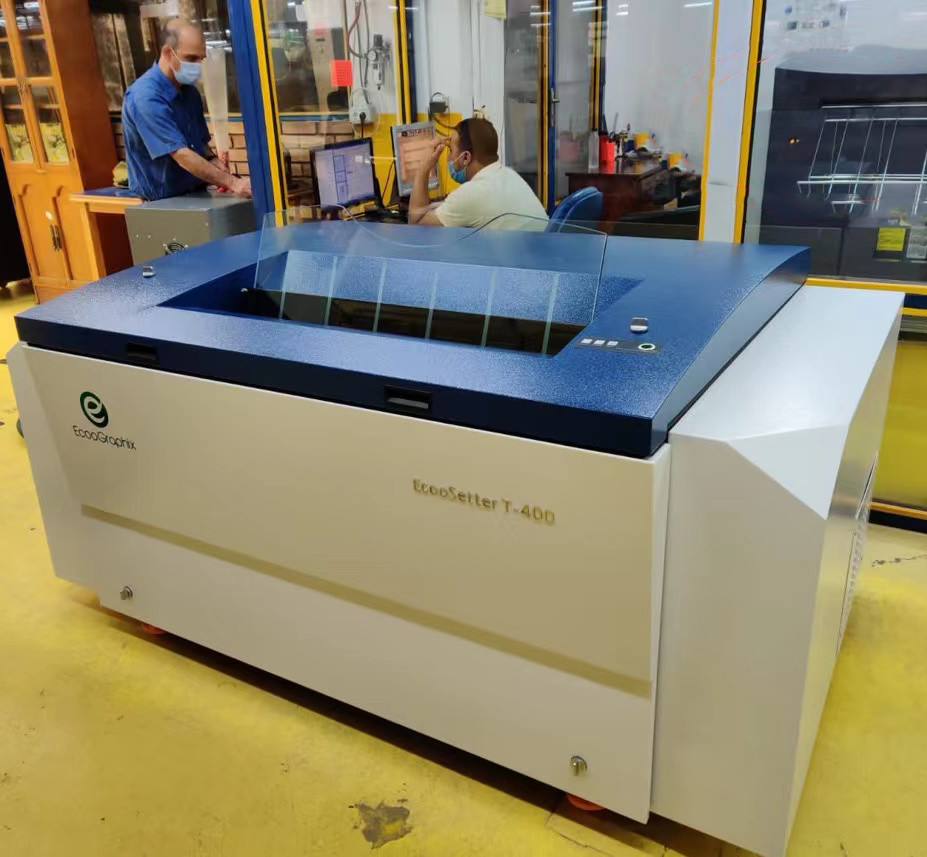

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
|
