External Drum 825nm Laser CTP Plate Machine With Punching System

1 set
MOQ
Negotiable
Price
External Drum 825nm Laser CTP Plate Machine With Punching System
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Thermal CTP Machine
Laser Walve: 830 Nm
Speed: 25 Pcs Per Hour
Max Plate Size: 800mm*660mm
Min. Plate Size: 270mm*270mm
Interface: Optical Fiber(Fiberway)
Repeatibility: 0.01 Mm
Highlight:

External Drum CTP Plate Machine

,

825nm Laser CTP Plate Machine

,

Punching CTP Plate Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: Ecoographix
Certification: ISO9000, ISO20001, CE
Model Number: T 400 QS
Payment & Shipping Terms
Packaging Details: Wooden case with standard protective layers
Delivery Time: 25 DAYS
Payment Terms: L/C, T/T
Supply Ability: 300 SET PER YEAR
Product Description



Automatic CTP plate imaging system 256 laser valve plate setter with autoloader and puching system



T-400 Q S Specifications
Model T400 QS
Exposing Method External Drum
Imaging System 825nm laser



Throughput



25plates/hour
800 x 660mm, 2400dpi, Plate sensitivity 120mj/cm²
Plate Sizes Max.800mm x 660mm
Min.270mm x 270mm
Plate Thickness 0.15mm, 0.30mm
Resolution Standard: 2400 dpi or 1200 dpi
Repeatability 0.01mm
Interface Optical Fiber(Fiberway)
Plate Loading Standard: single cassette autoloader with manual plate insert function
Inline punching System Optional feature (available upon request): Internal punching (maximum four sets of punch holes)
Machine Size
(W x Lx H)mm
1450x1950x1290 (additional 600mm length for conveyor to wash unit)
Power Supply

CTP(single phase:220V, Max power(Peak Value): 4KW)

Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W))

Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W))

Operation
Environment
recommended:21-25℃, allowable temperature: 15-30℃,relative humidity:40-70%

External Drum 825nm Laser CTP Plate Machine With Punching System 0

Main features



Linear motor
In addition to high acceleration, linear motor drive offers extremely stable operation and high positioning accuracy.

External Drum 825nm Laser CTP Plate Machine With Punching System 1

Motor direct drive drum
The application of direct motor driving drum technology makes start-up time accelerated and greatly improves production efficiency.

External Drum 825nm Laser CTP Plate Machine With Punching System 2

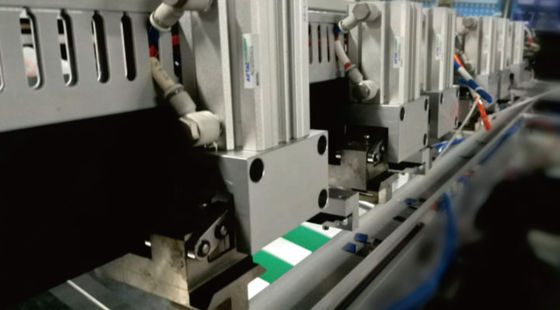

Full-automatic plate making with Inline punch option
Equipped with automatic plate loading and unloading, automatic feeding and automatic punching function (as an option), it can work continuously without interruption to maximize the performance.
​​External Drum 825nm Laser CTP Plate Machine With Punching System 3
Automatic plate loading cassette
Large capacity automatic plate loading system can load 100 plates at the same time, and also a manual plate insert path is Included.

External Drum 825nm Laser CTP Plate Machine With Punching System 4



FAQ:
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, blankets, postpress Packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers),positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.


2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!


3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.If you use our plate, we will offer lifetime warranty for the CTP machine.


4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.


5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9. The software for CTP operation is free but the workflow should be surcharged.


6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.







Machine structure or outlet

External Drum 825nm Laser CTP Plate Machine With Punching System 5
