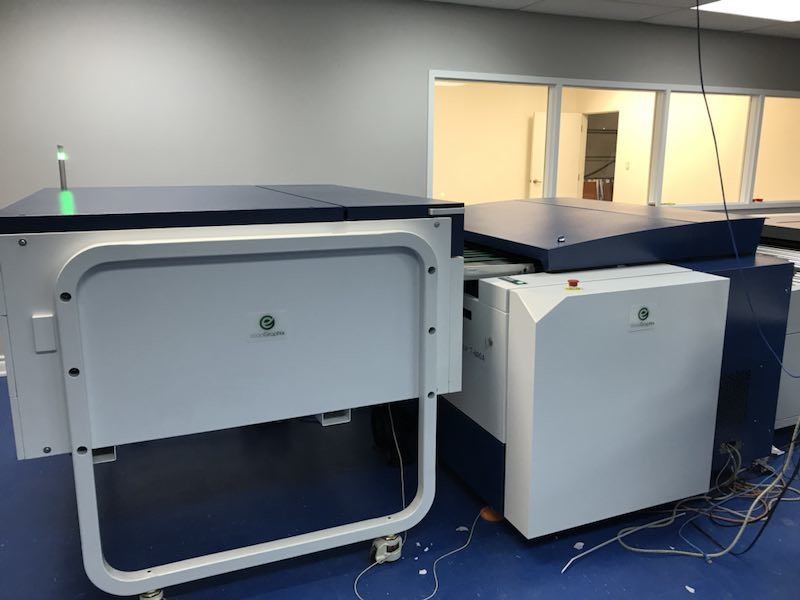

45PPH UV-CTP Plate Machine Automatic CTCP Platesetter 0.15mm Thick

 45PPH Automatic UV-CTP Platesetter Online CTCP Plate Making Machine

♫  APPLICATION

EcooGraphix Conventional CTP(UV-CTP/CTCP) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.

By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.

♬  SPECIFICATION

ECOO UV-800XA Automatic CTP Machine(Online System)

Model       UV-800XA

Exposing Method       External Drum

Imaging System       128-channel, Discrete 400-410nm laser diode

Throughput       45PPH, 1030mm x 800mm, 2400dpi

Plate Sizes        Max. 1163mm x 940mm, Min. 300mm x 400mm

Exposing Size       Max. 1130mm x 884mm

Media Type        Positive UV-CTP plate, High-sensitive PS plate

Plate Thickness       0.15mm to 0.30mm

Resolution        2400dpi

Repeatablity       ± 5μm(Continuous exposing for 4 times or above on the same plate with

a temperature of 23ºC and humidity of 60%)

Interface       USB 2.0

Plate Loading       Semi automatic

Net Weight       1200kg

Machine Size(WxLxH)mm       2127 x 1610 x 1058

Power Supply       Single phase: 220AC, +6%, -10%, Power Consumption: 4KW

Environment       Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%

​

​

♪  MAJOR HIGHLIGHTS

1) Superior dot quality reproduction proven by worldwide market:

1%-99% dot reproduction; Up to 250lpi screening, 2400 dpi or 1200dpi optional.

2) Fully qualified: for any thermal non-process plate and process plates.

3) Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.


♩  SUCCESS CASES

♭  PRODUCING AND PACKAGING

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

♯  CERTIFICATES

♮  FAQ

1) What are your main products ?
A: Our main products are the Prepress CTP System(4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor) and Post Press Packing Equipments(Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter).
Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance. You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.


2) Where is your factory ?
A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai.
You are warmly welcome to visit our factory!


3) What is your warranty for the CTPs ?
A: Three years' laser head and main spare parts for the CTPs, one year for the processor.


4) What is the lead time ?
A: Usually 20-30 days, and we will try our best to meet your demands.


5) Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.


6) What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount CTP installiations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.

These end users printers all run the CTP system with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
