16PPH Online CTCP Plate Machine For 1470*1180mm Positive UV Plate
EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick
short-run offset printing. It can output the images on the computer to printing CTP plate directly through the
CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less
space occupied with more flexibility.

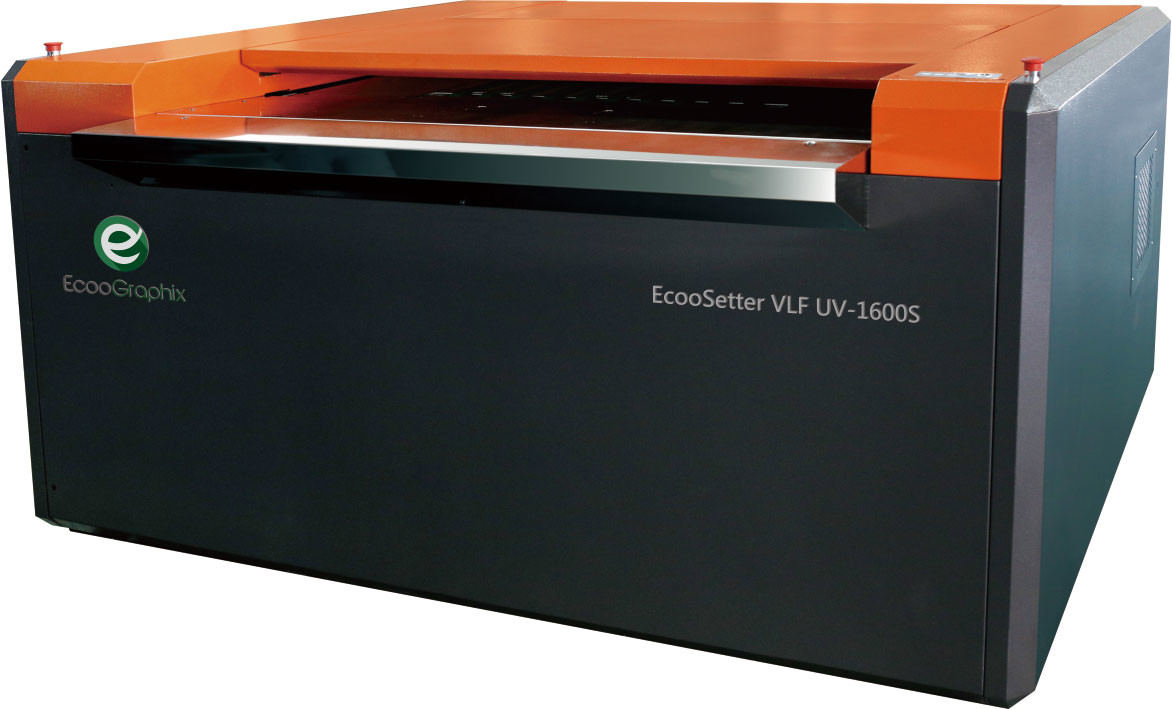

ECOO VLF(Very Large Format) UV-1600S CTP Specifications
64-channel, Discrete 400-410nm laser diode
16 plates/hour, 1470mm x 1180mm / 2400dpi
Max. 1470mm x 1180mm; Min. 300mm x 400mm
Max. 1454mm x 1164mm

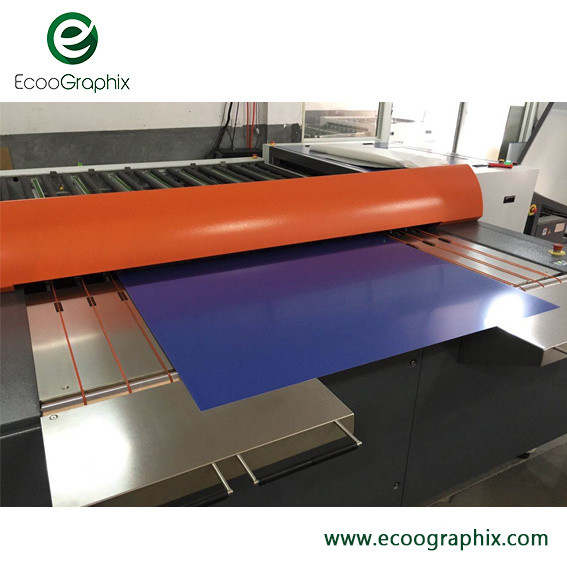

Positive UV-CTP plate Plate
0.15mm to 0.30mm or 0.25mm to 0.40mm (Alternative)
±5μm (Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
USB 2.0 or USB3.0 (USB2.0 is recommended)
Semi automatic (Alternative autoloader system)
Machine Size (WxLxH)mm
2355 x 1910 x 1217
Single phase: 220V-240V, Power Consumption (peak value): 5.5KW
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%RH
|ECOO VLF(Very Large Format) UV-1600S CTP Specifications|
|Exposing Method||External Drum|
|Discrete 400-410nm laser diode|
|Output Speed||16 plates/hour|
|1470mm x 1180mm / 2400dpi|
|Plate Sizes||Max. 1470mm x 1180mm; Min. 300mm x 400mm|
|Exposing Size||Max. 1454mm x 1164mm|
|Media Type||Positive UV-CTP plate|
|Plate Thickness||0.15mm to 0.30mm or 0.25mm to 0.40mm (Alternative)|
|Repeatability||±5μm (Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)|
|Interface||USB 2.0 or USB3.0 (USB2.0 is recommended)|
|Plate Loading||Semi automatic (Alternative autoloader system)|
|Machine Size (WxLxH)mm||2355 x 1910 x 1217|
|Power Supply||Single phase: 220V-240V, Power Consumption (peak value): 5.5KW|
|Environment||Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%RH|
Maximum Plate Size: 1470mm x1180mm
Features: Less manpower, high stability and perfect output quality.
UV plates are available for you to lower production cost.
♣ Major Highlights
1) Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction; Up to 250lpi screening, 2400 dpi or 1200dpi optional
2) Fully qualified: for any thermal non-process plate and process plates.
3) Robustness and simplicity: robust machine and easy to use. User friendly and simple design to
avoid human error.
4) Worldwide top class components and parts supplied by international well known suppliers from
Japan, USA, and Germany.
5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours.
(Approximately 20,0000 plates)
6) Long warranty of the machine: 3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 years' warranty, very low cost of parts. for example, laser diode at US$250 per piece.
7) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring
best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month.
Proactively revisit by engineers to be conducted. 7x24 hours service response.

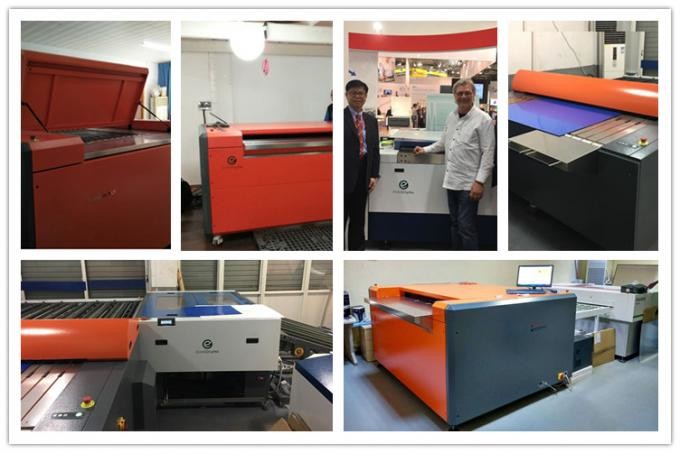

♥ Producing and Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
1. What are your main products ?
Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing Equipments (Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter) .
Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance. You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.
4. What is the Lead Time ?
Usually 20-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP ?
Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.
