64CH 14PPH Online Vlf Large Format
Thermal Offset Printing CTP
♥ Application
EcooGraphix Thermal CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.
EcooGraphix VLF(Very Large Format) Thermal CTP Machine T-1600M can be used for B0 paper size Posters or Wall-charts, Large Books, Catalogue, Yellow pages, Packaging processing and Plate-making center etc., with the output speed 14 plates per hour.
♠ Specification

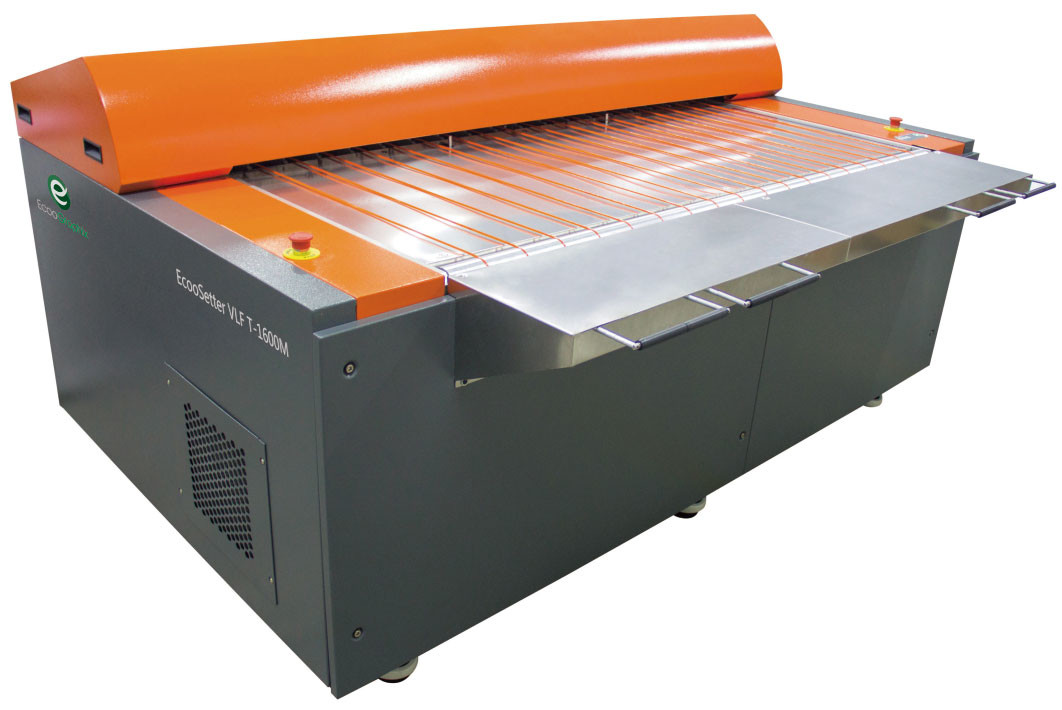

ECOO VLF (Very Large Format) T-1600M CTP Machine
Model
T-1600M
Exposing Method
External Drum
Imaging System
64-channel Discrete 830nm laser diode
Output Speed
14 plates/hour, 1630mm x 1325mm/ 2400dpi
Plate Sizes
Max. 1680mm x 1350mm; Min. 650mm x 550mm
Exposing Size
Max. 1680mm x 1336mm
Media Type
Thermal plate
Plate Thickness
0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative)
Resolution
2400dpi
Repeatability
± 5μm(continuous exposing for 4 times or above on the same plate with
a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0 or USB3.0(USB2.0 is recommended)
Plate Loading
Semi automatic
Net Weight
1800kg
Machine Size(WxLxH)mm
2400 x 1760 x 1110
Power Supply
Triple-phase: 380V, Max. power(peak value): 5.5KW
Operation Environment
Recommended temperature: 21-25ºC, Allowed temperature: 15-30ºC, Humidity: < 70%RH
| ECOO VLF(Very Large Format) T-1600M CTP Machine | |
| Model | T-1600M |
| Exposing Method | External Drum |
| Imaging System | 64-channel |
| Discrete 830nm laser diode | |
| Output Speed | 14 plates/hour |
| 1630mm x 1325mm/ 2400dpi | |
| Plate Sizes | Max. 1680mm x 1350mm; Min. 650mm x 550mm |
| Exposing Size | Max. 1680mm x 1336mm |
| Media Type | Thermal plate |
| Plate Thickness | 0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative) |
| Resolution | 2400dpi |
| Repeatability | ±5 μm(continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%) |
| Interface | USB 2.0 or USB3.0(USB2.0 is recommended) |
| Plate Loading | Semi automatic |
| Net Weight | 1800kg |
| Machine Size (WxLxH)mm | 2400 x 1760 x 1110 |
| Power Supply | Triple-phase: 380V, Max. power(peak value): 5.5KW |
| Operation Environment |
Recommended temperature: 21-25ºC, Allowed temperature: 15-30ºC, Humidity: < 70%RH |
♦ Characteristic
Maximum Plate Size: 1680mm x 1350mm
Features: Less manpower, high stability and perfect output quality.
Thermal plates are available for you to lower production cost.
♣ Major Highlights
1) Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction; Up to 250lpi screening, 2400 dpi or 1200dpi optional.
2) Fully qualified: for any thermal non-process plate and process plates.
3) Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.
4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA and Germany.
5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (Approximately 200,000 plates)
6) Long warranty of the machine: 3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 years' warranty, very low cost of parts. For example, laser diode at US$250 per piece.
7) Guaranteed service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 months. Proactively revisit by engineers to be conducted. 7x24 hours service response.
♥ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
♠ Certificates
♦ FAQ
|
1. What are your main products ?
A: Our main products are the Prepress CTP System(4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing equipments(Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter).
Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance. You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company. |
|
2. Where is your factory ?
A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
|
|
3. What is your warranty for the CTPs ?
A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.
|
|
4. What is the Lead Time ?
A: Usually 20-30 days, and we will try our best to meet your demands.
|
|
5. Can you also supply the Workflow and RIP ?
|
|
6. What about the installation and after-sales technician support ?
|
