Name: 1470mm*1180mm Automatic Prepress CTP Plate Machine 16 Plates/H
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: EcooSetter VLF T-1600S
Price: 150000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Media Type: Thermal CTP Plate

Imaging System: 64CH

Throughout: 16 Plates/Hour

Resolution: 2400dpi

Plate Size: Max. 1470mm X 1180mm; Min. 300mm X 400mm

Net Weight: 1400kg

Interface: USB 2.0 Or USB3.0 (USB 2.0 Is Recommended)

Repeatablity: ± 5µm (Continuous Exposing For Four Times Or Above On The Same Plate With A Temperature Of 23℃ And Humidity Of 60%)

Highlight:

Automatic Prepress CTP Plate Machine

1470mmX1180mm CTP Plate Machine

16 Plates/H CTP Plate Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: EcooSetter VLF T-1600S

Payment & Shipping Terms

Packaging Details: Standard export packing

Delivery Time: 30 Days

Payment Terms: T/T

Supply Ability: 1000 Sets/year

Gallery

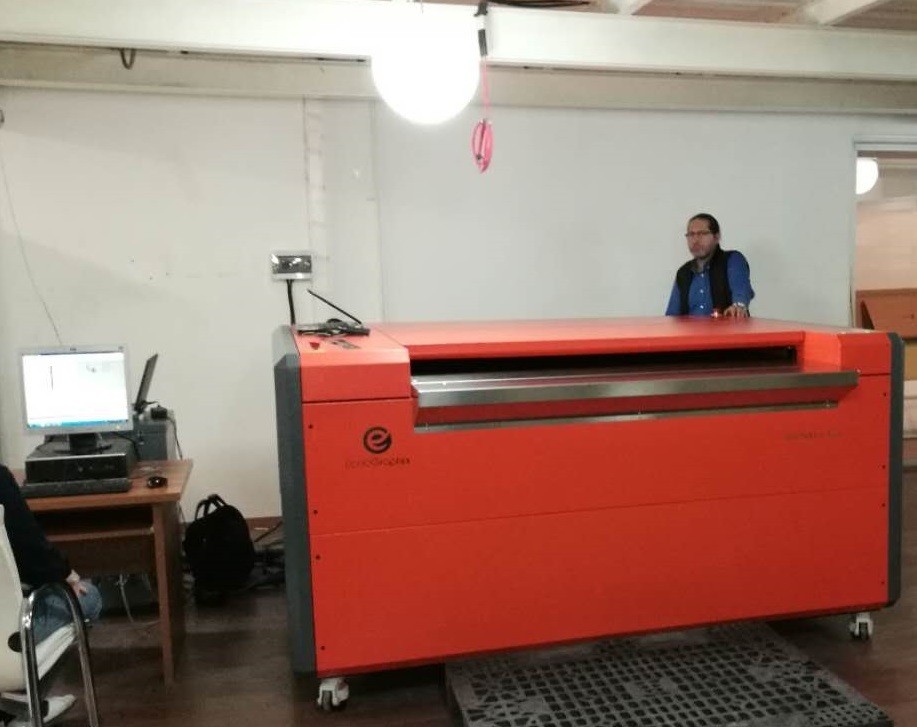

1470mm*1180mm Automatic Prepress CTP Plate Machine 16 Plates/H

Product Description

1470mm*1180mm Automatic Prepress Plate Making Machine Thermal CTP

♠. Application

EcooGraphix Thermal CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.

By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.

♥. Specification

ECOO VLF (Very Large Format) T-1600S CTP Machine

Model
T-1600S

Exposing Method
External drum

Imaging System
64-channel, Discrete 830nm laser diode

Output Speed
16plates/hour, 1470mm x 1180mm/ 2400dpi

Plate Sizes
Max. 1470mm x 1180mm; Min. 300mm x 400mm

Exposing Size
Max. 1470mm x 1164mm

Media Type
Thermal CTP plate

Plate Thickness
0.15mm to 0.30mm or 0.25mm to 0.40mm(alternative)

Resolution
2400dpi

Repeatability
± 5μm(Continuous exposing for 4 times or above on the same plate with

a temperature of 23ºC and humidity of 60%)

Interface
USB 2.0 or USB3.0(USB2.0 is recommended)

Plate Loading
Semi automatic

Net Weight
1400kg

Machine Size(WxLxH)mm
2355 x 1910 x 1217

Power Supply
Single phase: 220V-240V, Power consumption(peak value): 5.5KW

Environment
Recommended: 21-25ºC; Max. 15-30ºC, Humidity: 40%-70%RH

ECOO VLF(Very Large Format) T-1600S CTP Machine
Model	T-1600S
Exposing Method	External drum
Imaging System	64-channel
Imaging System	Discrete 830nm laser diode
Output Speed	16plates/hour
Output Speed	1470mm x 1180mm/ 2400dpi
Plate Sizes	Max. 1470mm x 1180mm; Min. 300mm x 400mm
Exposing Size	Max. 1470mm x 1164mm
Media Type	Thermal CTP plate
Plate Thickness	0.15mm to 0.30mm or 0.25mm to 0.40mm(alternative)
Resolution	2400dpi
Repeatability	± 5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface	USB 2.0 or USB3.0(USB2.0 is recommended)
Plate Loading	Semi automatic
Net Weight	1400kg
Machine Size (WxLxH)mm	2355 x 1910 x 1217
Power Supply	Single phase: 220V-240V, Power consumption(peak value): 5.5KW
Environment	Recommended: 21-25ºC; Max. 15-30ºC, Humidity: 40%-70%RH

♣. Details

1470mm*1180mm Automatic Prepress CTP Plate Machine 16 Plates/H 0

1470mm*1180mm Automatic Prepress CTP Plate Machine 16 Plates/H 1

♦. Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

♠. Certificates

♥. FAQ

1. What are your main products ?
A: Our main products are the Prepress CTP System(4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor) and Post Press Packing Equipments(Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter). Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory ?
A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai.
You are warmly welcome to visit our factory!

3. What is your warranty for the CTPs ?
A: Three years' laser head and main spare parts for the CTPs, one year for the processor.

4. What is the lead time ?
A: Usually 20-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.

6. What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
