Flexographics Computer To Plate CTP Machine For Steel Based Digital Plate
EcooGraphix Flexo CTP machine is used for Label, Trade Mark or Package Printing. It can expose the Heat corrosive film, Digital relief printing plate (water-wash), Digital flexo plate (water-wash), Digital flexo plate (solvent based), or Thermal PS plate and Steel based digital plate(water/alcohol washable).
ECOO Flexo CTP Series Technical Specifications
2.5 m2/h; 1.25 m2/h ;
800mm x 660mm; 680mm x 430mm
High power semiconductor laser diode
Digital relief flexo plate(water-wash), Digital flexo plate (water-wash), Digital flexo plate(solvent-wash), Steel based digital plate(water/alcohol washable) are applied for EM/SM series
0.15mm - 1.7mm
Label and Trademark
Manual load and unload
Device Size (WxDxH)mm
1087 x 770 x 1000
220V/50Hz, 60Hz, Mainframe 1.5KW + Vacuum 1.1KW
Recommended temperature: 18-30ºC, Humidity: 10%- 80%
|ECOO Flexo CTP Series Technical Specifications|
|Output Speed||2.5 m2/h||1.25 m2/h|
|Max. Breadth||800mm x 660mm||680mm x 430mm|
|Laser Power||High power semiconductor laser diode|
|Plate Type||Digital relief flexo plate(water-wash), Digital flexo plate (water-wash),
Digital flexo plate(solvent-wash), Steel based digital plate(water/alcohol washable)
are applied for EM/SM series
|Plate Thickness||0.15mm - 1.7mm|
|Application||Label and Trademark|
|Plate Loading||Manual load and unload|
|Focus Adjust||Dynamic autofocus|
|Device Size (WxDxH)mm||1087 x 770 x 1000|
|Power||220V/50Hz, 60Hz, Mainframe 1.5KW + Vacuum 1.1KW|
|Environment||Recommended temperature: 18-30ºC, Humidity: 10%- 80%|

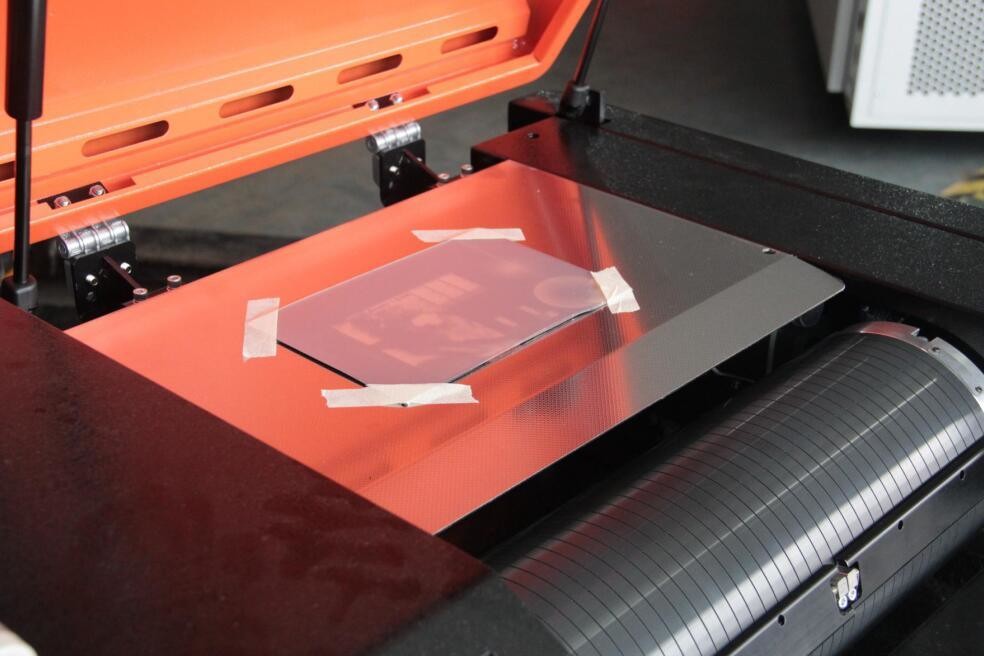

♥ Easy to use : After placing plate, the only step you need to do is to press a button to finish the plate loading within seconds.
♣ Automatic Focusing: The machine can be used for different thickness plate from 0.15mm to 1.7mm. Dynamic autofocus system keeps accurate focus constantly to ensure sharp dot.

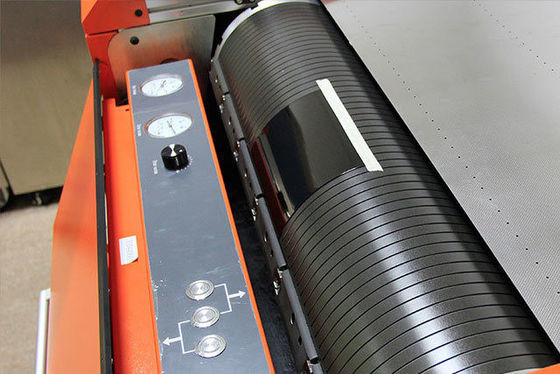

♦ Auto balance system of drum takes no more than 5 seconds to adjust drum balance block to a position, make the drum stable in high speed rotation.
♠ Auto switch of laser channel: When any laser channels breaks down, laser channel auto switch system can continue output through the longest consecutive channel that remains working to ensure non-stop production.
♥ Linear motor: More accurate, more simple and more reliable.
♣ Long lifetime and warranty of spare parts: Laser Lifetime: >10000h

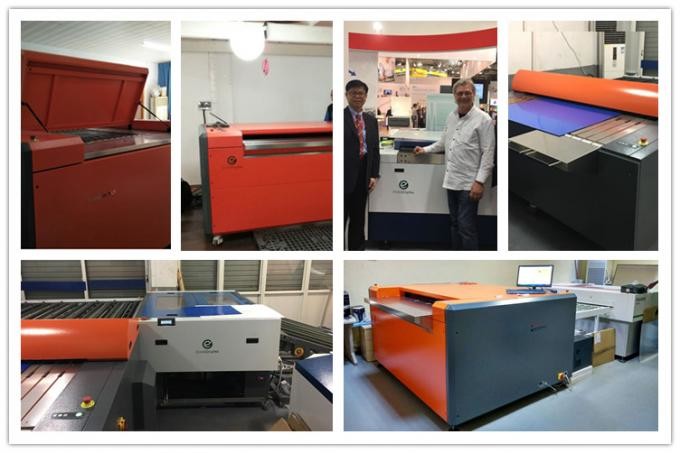

▶ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP machine factory is in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
Q3: Is there any certification for your CTP machine ?
A: Yes, all our CTP machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
