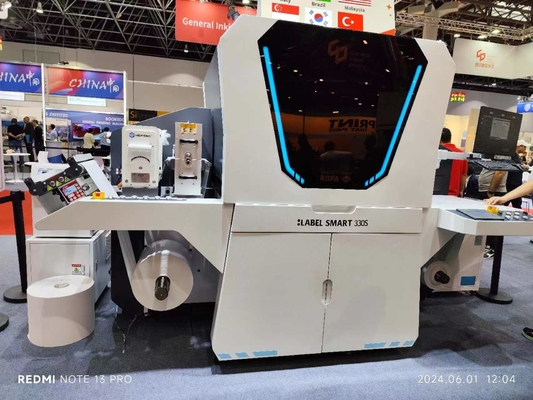

6 Colors Digital Label Machine Uv Inkjet Label Printer
Label Smart is specially designed for small batch, multi-batch, personalized variable data label printing, with low investment cost and the best efficiency and effectiveness.
It has a wide range of applications, whether it is film (PET, BOPP, PE, BOPA), label paper (PE label), pre-pressed material (PET, ALU, PE) or paper and other materials, Label Smart 216S can easily handle it, helping customers win diversify the label market.
Label Smart has the Large roll feeding, anti-collision induction, web guide, double-sided dust removal, corona unit, mark tracking electric eye, LED curing, intelligent industrial control, water cooling system are all available; it is equipped with imported high-precision industrial nozzles, which can be used in four colors according to the actual needs of customers.
On the basis of adding white ink configuration, it achieves a maximum full-color printing speed of 50m/min and a maximum resolution of 600×1200dpi. The colors are accurate and stable, and can be adapted to a variety of printing materials; using Agfa environmentally friendly ink, the printed matter is rich and colorful No odor.
2 ) The advantages of UV Inkjet Printing Press
● 6-color digital printing, covering 95% of Pantone colors
● New upgraded design, simple operation
● Fully automatic integrated program to improve efficiency
● Built-in quality inspection device, real-time color inspection and quality control
● Support remote operation and maintenance
● Upgrade printing control software to optimize production process
| Model |
Label Smart 108S |
Label Smart 216S |
Label Smart 330S |
| Printing Technology |
Piezoelectric Inkjet |
| Print Method |
Roll to Roll, One – Side |
| Color Configuration |
CMYK/W+CMYK/W+W+CMYK |
| Number Of Channels |
6 |
| Maximum Speed |
50 m/min (CMYK); 25 m/min (CMYK + W) |
| Resolution |
600×600dpi ; 600×1200dpi |
| Ink Type |
UV Ink |
| Curing Method |
UV LED |
| Media Width |
80-330mm |
| Maximum Print Width |
108mm |
216mm |
324mm |
| Media Thickness |
50-400 μm |
| Media Type |
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc |
| Maximum Media Roll Diameter |
600mm |
| Power Supply |
380V |
| Power |
15kW |
30kW |
| Compressed air |
| Compressed air |
＞6.5MPa |
| Air consumption |
＞10L/min |
| Environment |
| Operation Temperature |
20 – 27°C |
| Operation Humidity |
40 – 70% Relative humidity |
