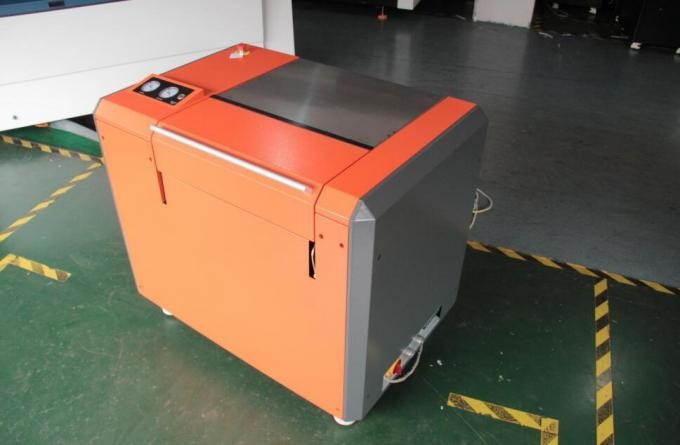

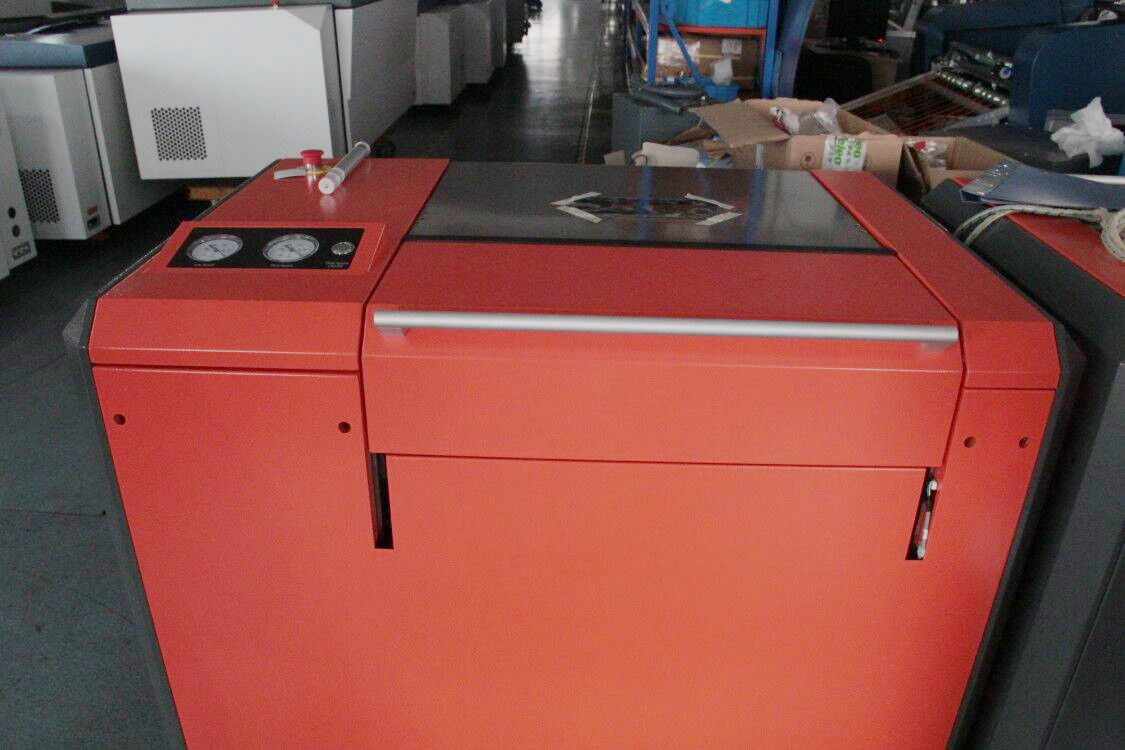

1.25Sqm/H Flexographic Plate Making Machine Flexo CTP Machine FL-400E CTP
Characteristics

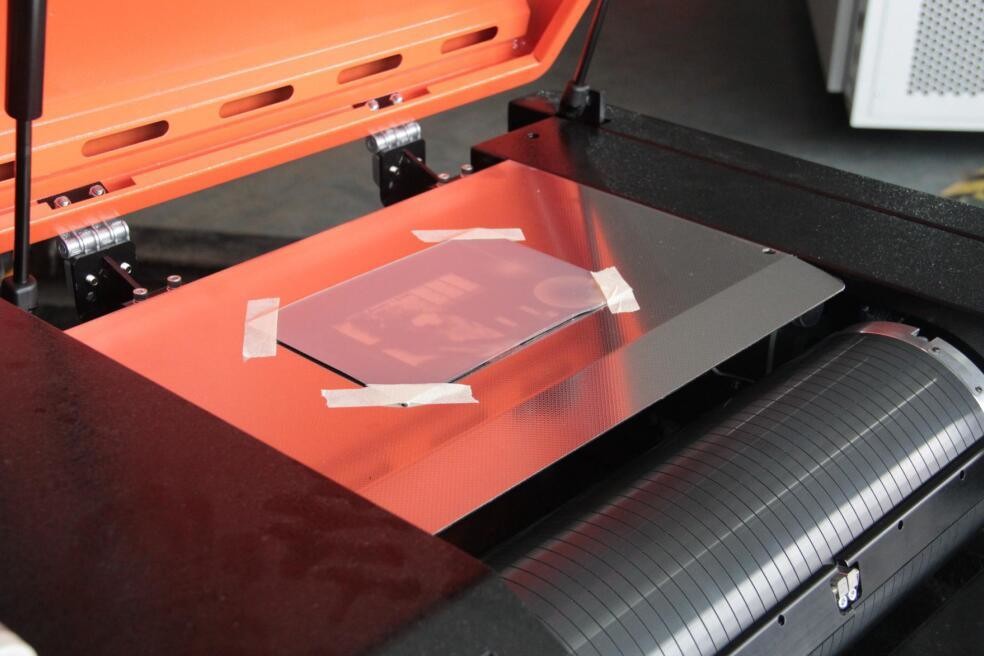

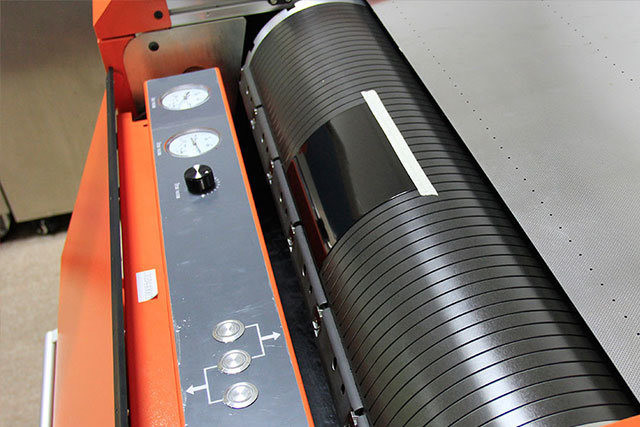

Easy to use: After placing the plate, the only step you need to do is to press a button to finish the plate loading within seconds.
Automatic focusing: The machine can be used for different thickness plates from 0.14mm to 1.14mm. Dynamic autofocus system keeps accurate focus constantly to ensure sharp dot.
The auto balance system of the drum takes no more than 5 seconds to adjust the drum balance block to a position, making the drum stable in high-speed rotation.
Auto switch of laser channel: When any laser channel breaks down, the laser channel auto switch system can continue output through the longest consecutive channel that remains working to ensure non-stop production.
Linear motor: More accurate, more simple, and more reliable.
Long lifetime and warranty of spare parts: Laser Lifetime: > 10000h
Specification
ECOO Flexo 400 Series CTP Specifications
Model
FL-400
Exposing Method
External Drum
Imaging System
16-channel
Throughput
1.25 m²/hour
Max. Breadth
430mm x 330mm
Laser Power
High-power semiconductor laser diode
Media Type
Digital Relief Printing Plate(water-wash), Digital Flexo Plate(water wash), Heat Corrosive Film, Digital Flexo Plate(solvent-based)
Plate Thickness
0.14mm to 1.7mm
Resolution
4000dpi
Repeatability
± 5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0
Plate Loading
Manual load and unload
Net Weight
Approximately 280kg
Machine Size(WxLxH)mm
830 x 630 x 1055mm
Power Supply
220V/50Hz, 60Hz, Flexo machine: 0.5kw + Vacuum1.5kw
Operation Environment
Recommended Temperature: 18-30ºC, Humidity: 10%-80%
| Model | FL-400 | FL-600E(EM) | FL-600S(SM) | FL-800E | FL-800S | FL-1500 | |
| Laser Channel | 16-channel | 16-channel | 32-channel | 16-channel | 32-channel | 32-channel | |
| Output Speed | 1.25m²/h | 1.25m²/h | 2.5m²/h | 1.25m²/h | 2.5m²/h | 1.8-2.0m²/h | |
| Max. Breadth | 430mm x 330mm | 680mm x 430mm | 800mm x 660mm | 800mm x 660mm | 800mm x 660mm | 1524mm x 1067mm | |
| Plate Thickness | 0.14mm-1.7mm | 0.15mm-1.7mm | 0.15mm-1.7mm | 0.15mm-1.7mm | 0.15mm-1.7mm | 0.95mm-3.84mm | |
| Laser Power | High-power semiconductor laser diode | Light valve laser | |||||
| Plate Type | Digital relief flexo plate(water-wash), Digital flexo plate(water-wash), Digital flexo plate(solvent-wash), Steel-based digital plates(water/alcohol washable) are applied for the EM/SM series |
Digital relief flexo plate(water-wash), Digital flexo plate (water-wash), Digital flexo plate(solvent-wash), Steel based digital plates(water/alcohol washable) | Digital flexo plate(water-wash and solvent-wash) | ||||
| Application | Label and Trademark | Trademark | |||||
| Resolutions | 4000dpi | 2540 or 5080 dpi | |||||
| Plate Loading | Manual load and unload | ||||||
| Interface | USB 2.0 | ||||||
| Focus Adjust | Dynamic auto-focus | ||||||
| Device Size ( WxDxH ) |
830x630x1055mm | 1087x770x1000mm | 1630x1170x965mm | 2410x1240x1120mm | |||
| Net Weight | Approximately 280kg | 400kg | 800kg | 1300kg | |||
| Power | 220V/50Hz, 60Hz, Flexo machine 0.5KW + Vacuum 1.5KW | 220V/50Hz, 60Hz, mainframe 1.5KW + Vacuum 1.1KW |
220V/50Hz, 60Hz, mainframe 0.6KW + Vacuum 1.1KW |
||||
| Environment | Recommended temperature: 18-30ºC, Humidity: 10%-80% | ||||||
Major Highlights
Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction up to 250lpi screening, 4000dpi resolution.
Robustness and simplicity: robust machine and easy to use. User-friendly and simple design to avoid human error.
Worldwide top-class components and parts supplied by internationally well-known suppliers from Japan, USA, and Germany.
Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
Long warranty of the machine: 3 years warranty (free replacement of all parts)
Low Cost of Parts: after a 3-year warranty, very low cost of parts. For example, laser diode at US$ 250 per piece.
Guaranteed Service: Installation and training conducted by a technical engineer from the factory, ensuring the best setup and training to be achieved. Regular remote maintenance is to be conducted every 2 months. Proactively revisited by engineers to be conducted. 7x24 hours service response.
Proven Worldwide market leader:
Over 6000 units installed worldwide over the past 10 years.
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics.
Installations in other countries: UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria, etc.
Producing And Packaging
From production to delivery, we make every detail very carefully to guarantee good product quality and service to customers.
Certificates
FAQ
Q1: What are your main products?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory?
A: Our CTP machine factory is in Hangzhou City, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
Q3: Is there any certification for your CTP machine?
A: Yes, all our CTP machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support?
A: Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets, the service charge, and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and the EcooGraphix technical service team supports these installations remotely with regular onsite visits.
These end users' printers all run the CTP systems with satisfaction due to our robust quality, seamless remote service, thorough training, and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle with installations, training, and after-sales service. We guarantee your satisfaction.
