Prepress Offset Printing Plate Making Machine UV-CTP
♥ Applications
EcooGraphix UV-CTP/CTCP(CTP) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTCP plate directly through the UV-CTP machine and save the film and labor. By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility. EcooGraphix UV 800 series Conventional CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual, very easy to use.
♠ Specifications
ECOO UV-800 Series CTP Specifications
Model
UV-800F; UV-800S; UV-800E
Exposing Method
External Drum
Imaging System
64-channel; 48-channel; 32-channel, Discrete 405nm laser diode
Throughput
28plates/hour; 22plates/hour; 16plates/hour, 1030mm x 800mm, 2400dpi
Plate Sizes
Max. 1163mm x 940mm, Min. 400mm x 300mm
Exposing Size
Max. 1130mm x 884mm, Min. 260mm x 284mm
Media Type
Positive UV-CTP/CTCP plate or high sensitive PS plate
Plate Thickness
0.15mm to 0.30mm
Resolution
2400dpi
Repeatability
± 5μm(Continuous exposing for 4 times or above on the same plate with
a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0
Plate Loading
Semi automatic
Net Weight
900kg
Machine Size(WxLxH)mm
2320 x 1080 x 960
Power Supply
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW
Operation Environment
Recommended: 21-25ºC, Max. 18-26ºC, Humidity: 40-70%
| ECOO UV-800 Series CTP Specifications | |||
| Model | UV-800F | UV-800S | UV-800E |
| Exposing Method | External Drum | ||
| Imaging System | 64-channel | 48-channel | 32-channel |
| Discrete 405nm laser diode | |||
Throughput |
28plates/hour | 22plates/hour | 16plates/hour |
| 1030mm x 800mm, 2400dpi | |||
| Plate Sizes | Max. 1163mm x 940mm, Min. 400mm x 300mm | ||
| Exposing Size | Max. 1130mm x 884mm, Min. 260mm x 284mm | ||
| Media Type | Positive UV-CTP/CTCP plate or high sensitive PS plate | ||
| Plate Thickness | 0.15mm to 0.30mm | ||
| Resolution | 2400dpi | ||
| Repeatability |
± 5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%) |
||
| Interface | USB 2.0 | ||
| Plate Loading | Semi automatic | ||
| Net Weight | 900kg | ||
| Machine Size (WxLxH)mm | 2320 x 1080 x 960 | ||
| Power Supply | Single phase: 220AC, +6%, -10%, Power Consumption: 4KW | ||
| Operation Environment |
Recommended: 21-25ºC, Max. 18-26ºC, Humidity: 40-70% | ||

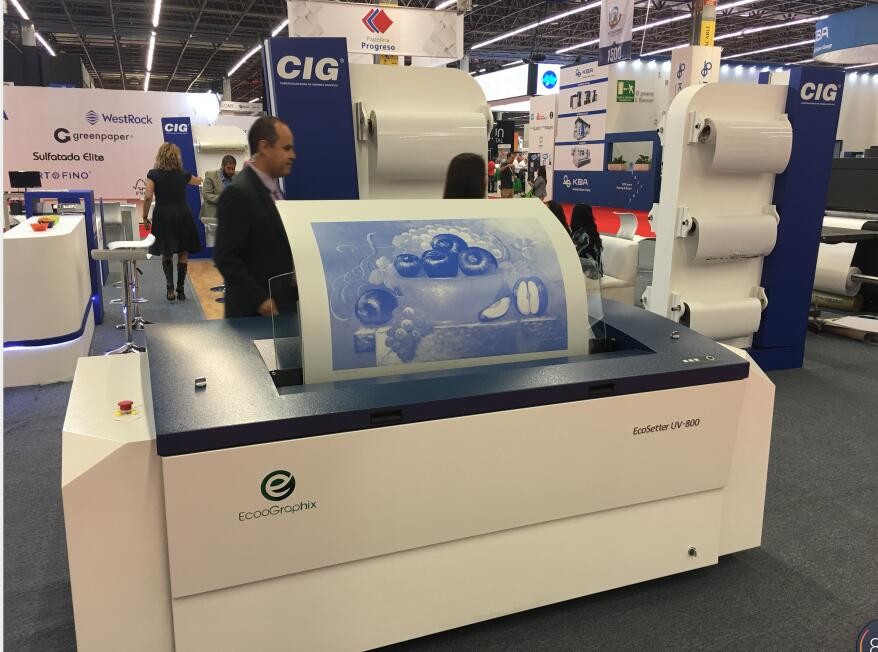

♦ Success Cases

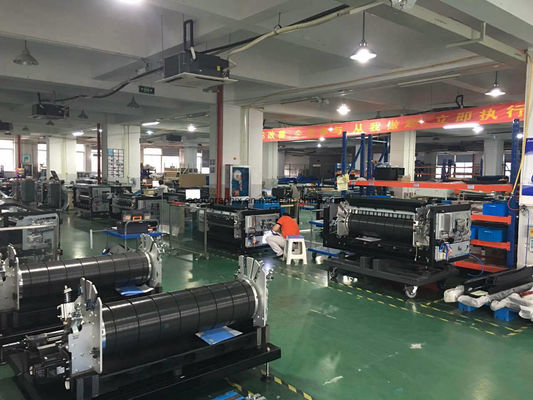

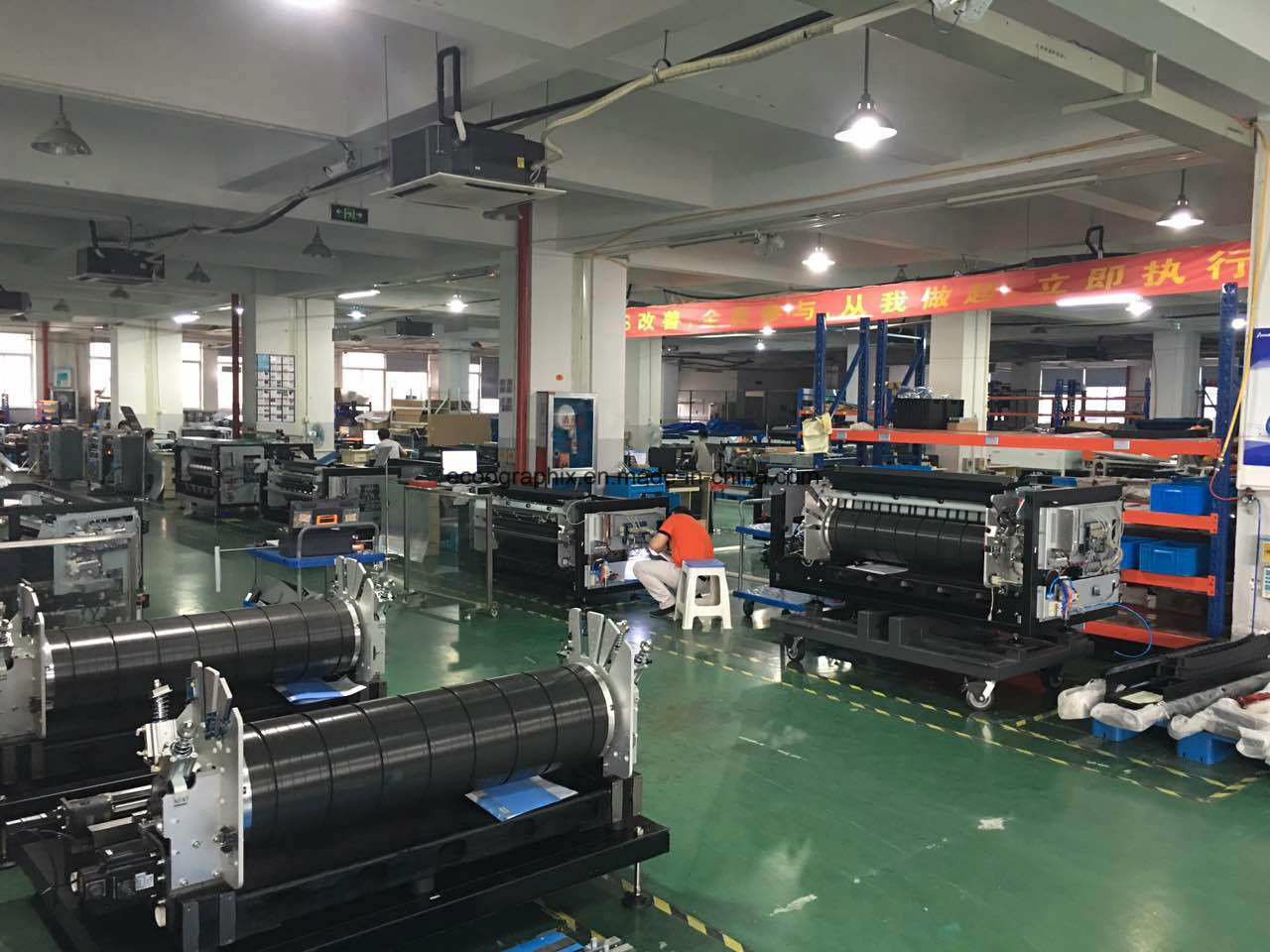

♣ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
