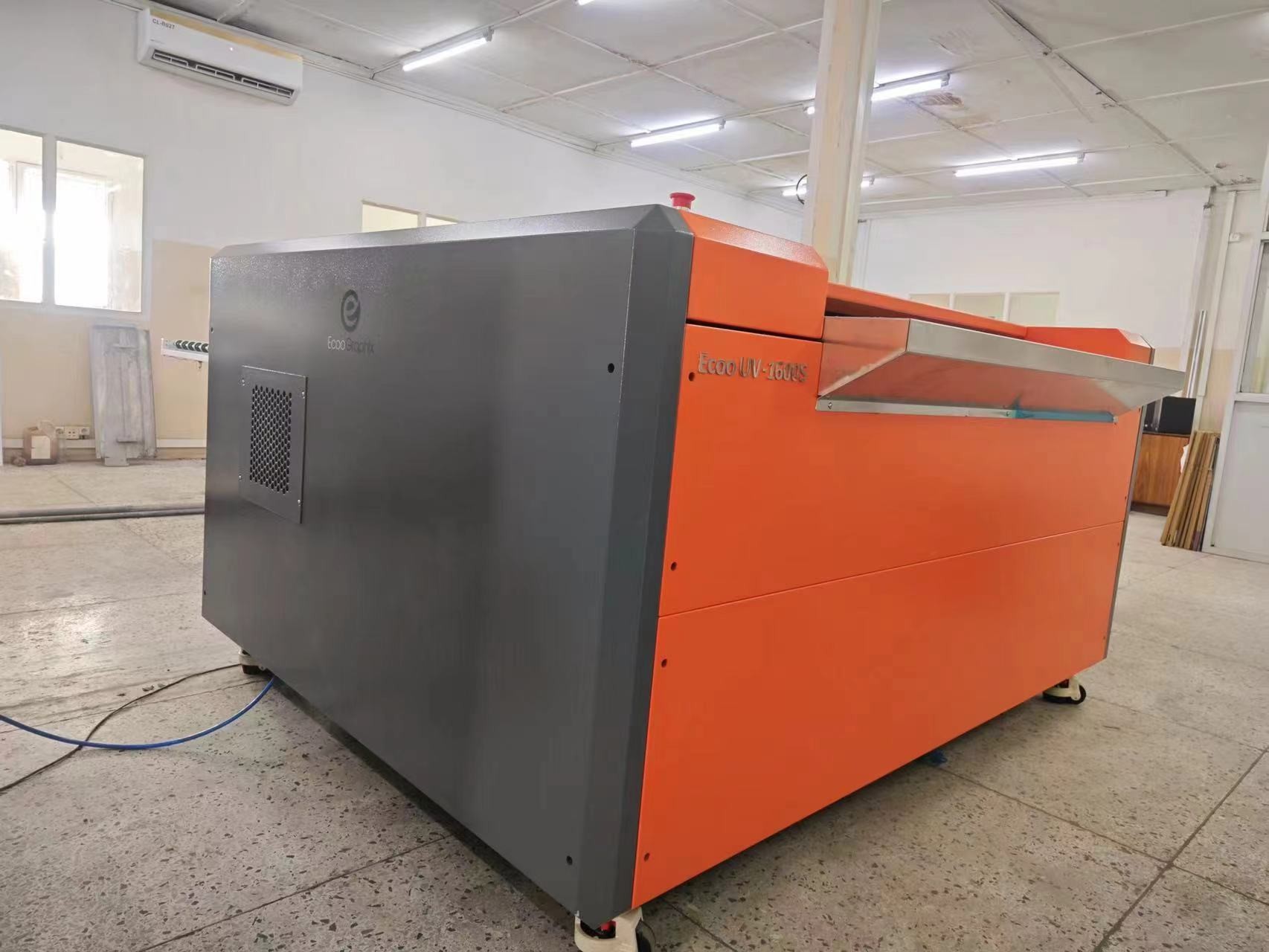

Wide Format Dynamic Autofocus Flexo CTP Plate Making Machine
------ Application ------
EcooGraphix Flexo CTP machine is used for Label, Trade Mark or Package Printing. It can expose the Heat corrosive film, Digital relief printing plate (water-wash), Digital flexo plate (water-wash), Digital flexo plate (solvent based), or Thermal PS plate and so on.
------ Specification ------
ECOO Flexo CTP Series Technical Specifications
Model
FL-800E; FL-800S
Laser Channel
16CH; 32CH
Output Speed
1.25 m2/h; 2.5 m2/h
Max. Breadth
26"x31"/ 660mm x 800mm
Laser Power
High power semiconductor laser diode
Plate Type
Digital relief flexo plate(water-wash), Digital flexo plate(water-wash), Digital flexo plate(solvent-wash), Steel based digital plate(water/alcohol washable) Plate
Thickness
0.15mm - 1.7mm
Application
Label and Trademark
Resolutions
4000dpi
Plate Loading
Manual load and unload
Interface
USB 2.0
Focus Adjust
Dynamic autofocus
Laser Lifetime
> 10000h
Device Size (WxDxH)mm
1,630 × 1,170 × 965
Net Weight
800KG
Power
220V/50Hz, 60Hz, Mainframe 0.6KW + Vacuum 1.1KW
Environment
Recommended temperature: 18-30ºC, Humidity: 10%- 80%
| ECOO Flexo CTP Series Technical Specifications | ||
| Model | FL-800E FL-800S | |
| Laser Channel | 16CH | 32CH |
| Output Speed | 1.25 m2 /h | 2.5 m2 /h |
| Max. Breadth | 26"x31"/ 660mm x 800mm | |
| Laser Power | High power semiconductor laser diode | |
| Plate Type | Digital relief flexo plate(water-wash), Digital flexo plate(water-wash), Digital flexo plate(solvent-wash), Steel based digital plate(water/alcohol washable) | |
| Plate Thickness | 0.15mm - 1.7mm | |
| Application | Label and Trademark | |
| Resolutions | 4000dpi | |
| Plate Loading | Manual load and unload | |
| Interface | USB 2.0 | |
| Focus Adjust | Dynamic autofocus | |
| Laser Lifetime | > 10000h | |
| Device Size (WxDxH)mm | 1,630 * 1,170 * 965 | |
| Net Weight | 800KG | |
| Power | 220V/50Hz, 60Hz, Mainframe 0.6KW + Vacuum 1.1KW | |
| Environment | Recommended temperature: 18-30ºC, Humidity: 10%- 80% | |
------ Characteristic ------
♥ Easy to use:
After placing plate, the only step you need to do is to press a button to finish the plate loading within seconds.
♣ Automatic Focusing: The machine can be used for different thickness plate from 0.15mm to 1.7mm. Dynamic autofocus system keeps accurate focus constantly to ensure sharp dot.
♦ Auto balance system of drum takes no more than 5 seconds to adjust drum balance block to a position, make the drum stable in high speed rotation.
♠ Auto switch of laser channel: When any laser channels breaks down, laser channel auto switch system can continue output through the longest consecutive channel that remains working to ensure non-stop production.
♥ Linear motor: More accurate, more simple and more reliable.
♣ Long lifetime and warranty of spare parts: Laser Lifetime: >10000h
------ Producing and Packaging ------
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
