Stripping Blanking Flatbed Die Cutting Machine For Carboard Embossing

Stripping Blanking Flatbed Die Cutting Machine For Carboard Embossing
Features Gallery Product Description Request A Quote
Max. Die Cutting Size: 1060x760mm
Max. Machine Speed(s/h): 6500
Max. Stamping Speed(s/h): 5000
Application: Paper Cup ,Paper Box,Carboard Embossing
Printing Materials: Paper Box,paper Cups,PVC,plastics
Warranty: One Year
Min.gripper Margin(mm): 9
Delivery Pile Height(mm): 1400
High Light:

Blanking Flatbed Die Cutting Machine


Stripping Flatbed Die Cutting Machine


Cardboard Embossing Die Cutting Machine

Basic Infomation
Place of Origin: CHINA
Certification: CE
Model Number: DS106
Payment & Shipping Terms
Packaging Details: plywood cases
Delivery Time: 20days
Payment Terms: L/C, T/T
Product Description

Flatbed Automatic Die Cutting Machine with Stripping Blanking DS106

DS106 Die Cutter with stripping




The new design of the stripping process brings the highest productivity, and the convenient operation decreases the workload significantly.

  1. Perfect design, fine assembly, good stability, strong safety and low noise
  2. Worm gear, worm, crankshaft transmission technology, high die-cutting pressure and long service life.
  3. High-precision clearance mechanism, high die-cutting accuracy and stable operation.
  4. Adopting European technology feeder head, the suction paper is adjustable, stable and accurate, and the paper has strong applicability.
  5. Non-stop paper feeding, pre-coded paper stacks and paper payment and collection mechanisms can shorten auxiliary time and improve work efficiency.
  6. Die-cutting plate frame and bottom plate mechanism, humanized design, quick and convenient plate loading and adjustment.
  7. (Optional) Three-frame linkage mechanism with waste removal function, humanized design, installation of waste removal plate and adjustment removal plate fast and convenient.
  8. Pneumatic plate locking device makes the plate frame more firm, accurate and time-saving.
  9. The front gauge, side gauge, and paper feeder fine-tuning device make paper positioning more accurate.
  10. The photoelectric level control of double sheets, crooked sheets, and empty sheets ensures the accuracy and stability of the paper and reduces waste.
  11. The electrical control modular design adopts imported electrical components to ensure accurate control and good reliability.
  12. Touch screen man-machine interface, real-time dynamic monitoring and display of running status, convenient and quick machine adjustment and troubleshooting.
  13. The circulating cooling oil supply system ensures that the moving parts of the machine have good lubrication and are durable.
  14. The timing and quantitative automatic oil supply system ensures that other moving parts of the machine are fully lubricated and have a long service life.
Model DS 106
Max. Sheet size(mm) 1060 x 760
Min. Sheet size(mm) 400 x 350
Max. Die cutting size(mm) 1060 x 746
Cutting plate thickness (mm) 4
Height of cutting rules (mm) 23.8
Inter-platen distance 54
Max.pressure(N) 260x104
Stock range Cardboard 157-2000g/m2; E, B flute
Min.gripper margin(mm) 9
Max.machine speed(s/h) 6500
Feeding pile height (mm) 1400
Delivery pile height (mm) 1200
Rated power (kw) 28
Air supply 0.8-1.0MPa, ≥ 0.6 m3/min
Overall dimension (mm) 7400x5600x2550
Weight of machine (kg) 22000

Stripping Blanking Flatbed Die Cutting Machine For Carboard Embossing 0


Feeding/delivery unit

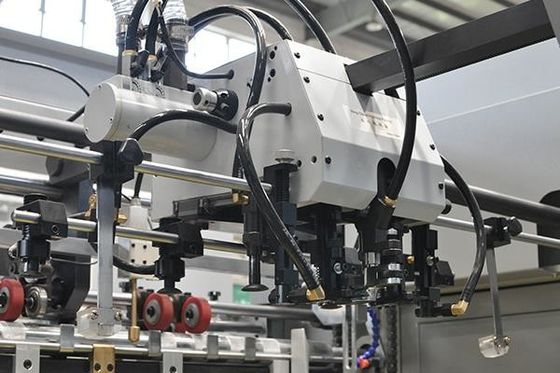

  1. Automatic feeder rolls back quickly to give easy access for make ready and locks up in seconds
  2. One feeding bar for suitable paper infeed

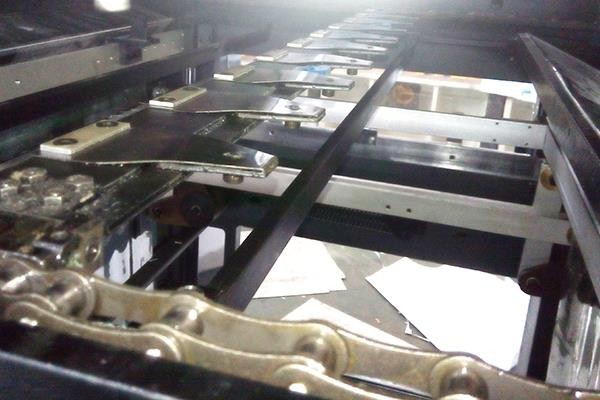

  3. One delivery hand with 6 delivery fingers, adjustable according to paper size
  4. Automatic elevated feeding pile

Main machine

  1. Delivers accurate, adjustable impression for foil stamping, embossing and die cutting
  2. Two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economy
  3. Air blast system helps to separate foil from stock on critical jobs
  4. Micrometer adjustment on side guide and front guide
  5. Adjustable dwell on impression
  6. Honeycomb base is convenient for loading
  7. Missed sheet detector
  8. 4 heating zones with digital control
  9. 24 hours preheating device
  10. Control system with touch screen HMI, PLC and servo system.

About our factory

EcooGraphix Die Cutters are produced by the leading manufacture in China ,which has a long history more than 90years. It is the first factory to produce and supply the Die Cutting ,Foil Stamping and Automatic Gluing machines .There are thousands of Die Cutting Machines installed worldwide. And two units EcooGraphix TDS790 were installed in Hungary in 2017.



Stripping Blanking Flatbed Die Cutting Machine For Carboard Embossing 1


Stripping Blanking Flatbed Die Cutting Machine For Carboard Embossing 2

Stripping Blanking Flatbed Die Cutting Machine For Carboard Embossing 3


Stripping Blanking Flatbed Die Cutting Machine For Carboard Embossing 4Stripping Blanking Flatbed Die Cutting Machine For Carboard Embossing 5

Stripping Blanking Flatbed Die Cutting Machine For Carboard Embossing 6


Quality Control

Professional control department which is responsible for all the machines.

Full checking list including mechanical and electrical detection on the machine.

Strict standard for registration and over 24 hours non-stop running on each machine.

Follow the policy of ‘One person responsible for one machine’ ,‘Claim responsibility if machine has assemble problem’.



All of our technicians have over 10-20 years experience.

Rich experience in installation, repairing and maintenance overseas.

After-sales staff Whatsapp/Wechat on line 24/7.

Guarantee to provide after-sales service for any machine for whole using life.


1. What are your main products ?

EcooGraphix is a leading and professional Supplier for Prepress Solution , Printing Materials and Post Packing Equipment.

Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packaging equipments and so on.
There are thousands CTPs installed worldwide. Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
We can also supply the thermal CTP plate(single and double layers),positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
If the customer uses Ecoographix CTP plate with the CTP machine,we will provide the Lifetime Warranty.

4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
