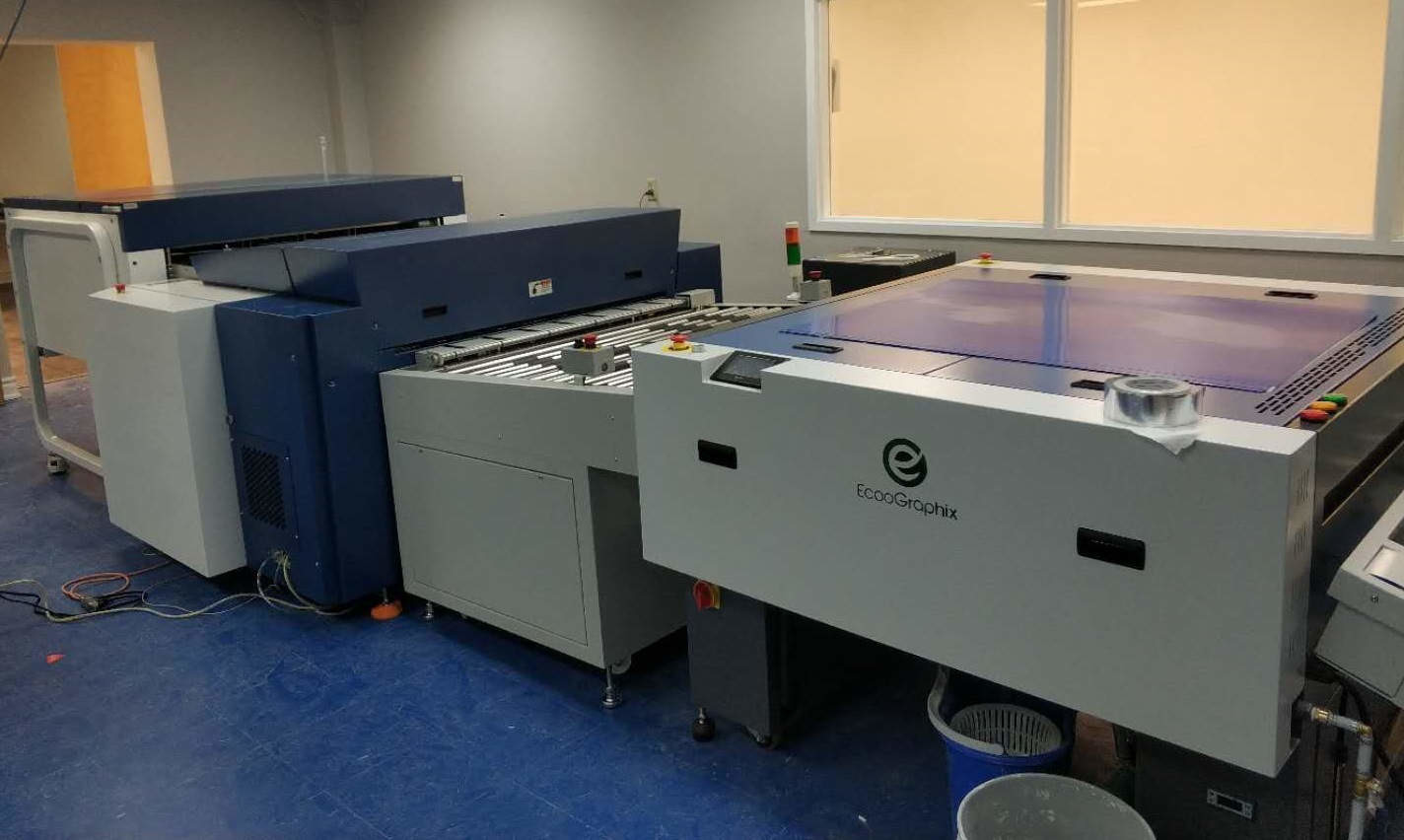

Automatic 64 Diodes CTCP Machine UV Conventional CTP Machine
1. Application
EcooGraphix Conventional CTP(UV-CTP/CTCP) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing UV-CTP plate directly through the CTP machine and save the film and labor.
By the EcooGraphix UV-CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.
EcooGraphix UV-800 A series Conventional CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The A series are automatic online UV-CTP machines, can be connected with Autoloader, Bridge and Processor.
2. Specification
ECOO UV-800 Series Automatic CTP Machine(Online System)
Model
UV-800FA, UV-800SA, UV-800EA
Exposing Method
External drum
Imaging System
64-channel, 48-channel, 32-channel, Discrete 400-410nm laser diode
Throughput
28PPH, 22PPH, 16PPH, 1030mm × 800mm, 2400dpi
Plate Sizes
Max. 1163mm × 940mm, Min. 400mm × 300mm (300mm × 250mm is available)
Exposing Size
Max. 1130mm × 884mm
Media Type
Positive UV-CTP plate, high-sensitive PS plate
Plate Thickness
0.15mm to 0.30mm
Resolution
2400dpi (Option:1200dpi)
Repeatability
± 5μm (Continuous exposing for 4 times or above on the same plate with
a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0
Plate Loading
Semi automatic
Net Weight
1200kg
Machine Size(W×L×H)mm
2127 × 1610 × 1058
Power Supply
Single phase: 220AC, +6%, -10%, Power consumption: 4KW
Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
| ECOO UV-800 Series Automatic CTP Machine(Online System) |
| Model |
UV-800FA |
UV-800SA |
UV-800EA |
| Exposing Method |
External drum |
| Imaging System |
64-channel |
48-channel |
32-channel |
| Discrete 400-410nm laser diode |
Throughput |
28PPH |
22PPH |
16PPH |
| 1030mm × 800mm, 2400dpi |
| Plate Sizes |
Max. 1163mm × 940mm
Min. 400mm × 300mm (300mm × 250mm is available) |
| Exposing Size |
Max. 1130mm × 884mm |
| Media Type |
Positive UV-CTP plate, high-sensitive PS plate |
| Plate Thickness |
0.15mm to 0.30mm |
| Resolution |
2400dpi (Option:1200dpi) |
| Repeatability |
± 5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
|
| Interface |
USB 2.0 |
| Plate Loading |
Semi automatic |
| Net Weight |
1200kg |
| Machine Size (W×L×H)mm |
2127 × 1610 × 1058 |
| Power Supply |
Single phase: 220AC, +6%, -10%, Power consumption: 4KW |
| Environment |
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70% |
3. Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
4. Certifications
5. FAQ
1) What are your main products ?
A: Our main products are the Prepress CTP System(4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor) and Post Press Packing Equipments(Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter).
Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.
2) Where is your factory ?
A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
3) What is your warranty for the CTPs ?
A: Three years' laser head and main spare parts for the CTPs, one year for the processor.
4) What is the lead time ?
A: Usually 20-30 days, and we will try our best to meet your demands.
5) Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.
6) What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
