Paper Polishing Overall Coating UV Varnishing Machine 1200mm
The Ecoo JMS1200 UV coating machine can do spot UV and overall UV coating on printed matter and packaging products such as the books, posters, adhesive stickers etc. This machine is consist of Auto feed system, vanishing system, curing system and auto delivery system. It not only improves the quality of printed materials, but also increases the value of the products, makes more profits to printing companies. Because of the high speed and efficiency, it is getting very good reputations from clients all over the world.
PRODUCT DESCRIPTION
* The machine is suitable for using water-based glue, solvent-based glue, and thermal film.
* Cold-water non-curling system: The paper will be non-curling after separated.
* Low cost: Ceramic anilox roller coating, minimize gluing amount to 5g/sqm.
* The heating energy cycle drying system makes the whole machine power consumption about 15kw/h.
* High efficiency:The machine working speed reaches to 70m/min, 9000sheets/h.
Remarks:
Laminating speed depend on paper weight, film thickness and gule material quality.
Subject to change without notice.
Standard Configuration: Selectable Configuration:
Auto Feeder
Multifunctional Coating Unit
UV Curing System
Auto Delivery Unit
Auto Control
| Model | Ecoo JMS-1200 | Ecoo JMS-1450 |
| Max.sheet size | 1450x1200mm | 1650x1450mm |
| MIN.sheet size | 330X406mm | 330X406mm |
| Max.coating size | 1200mm | 1450mm |
| Sheet thickness | 250-600gsm | 250-600gsm |
| Coating registration accuracy | ±0.2mm | ±0.2mm |
| Production speed | 25-80 m/min | 25-80 m/min |
| Weight | 4300kg | 4800kg |

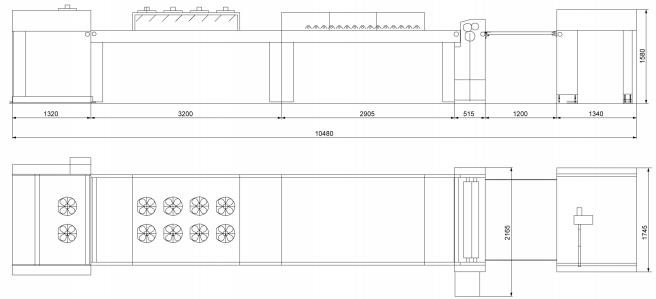

| Dimension | 10480x2165x1580mm | 10780x2465x1580mm |
| Power | 28KW | 34KW |
| Remark: Production speed depending on sheet weight, size and quality | ||
