Roll to Roll Digital Label Die Cutter with Slitter and Lamination
Introduction:
With the development of society and people's pursuit of product diversification, more and more products need to be labeled and customized. Label printing company and some enterprises need digital label printers to save printing costs and time costs. Lack of labor force, the operators who are professional for traditional printing machine are becoming less and less, The advantage of digital products are that easy to operate and maintain gradually enter the label printing market, it will replace the traditional printing press step by step. Ecoo Digital Label Printer meets the different needs of various customers with suitable printing costs and lower product prices.

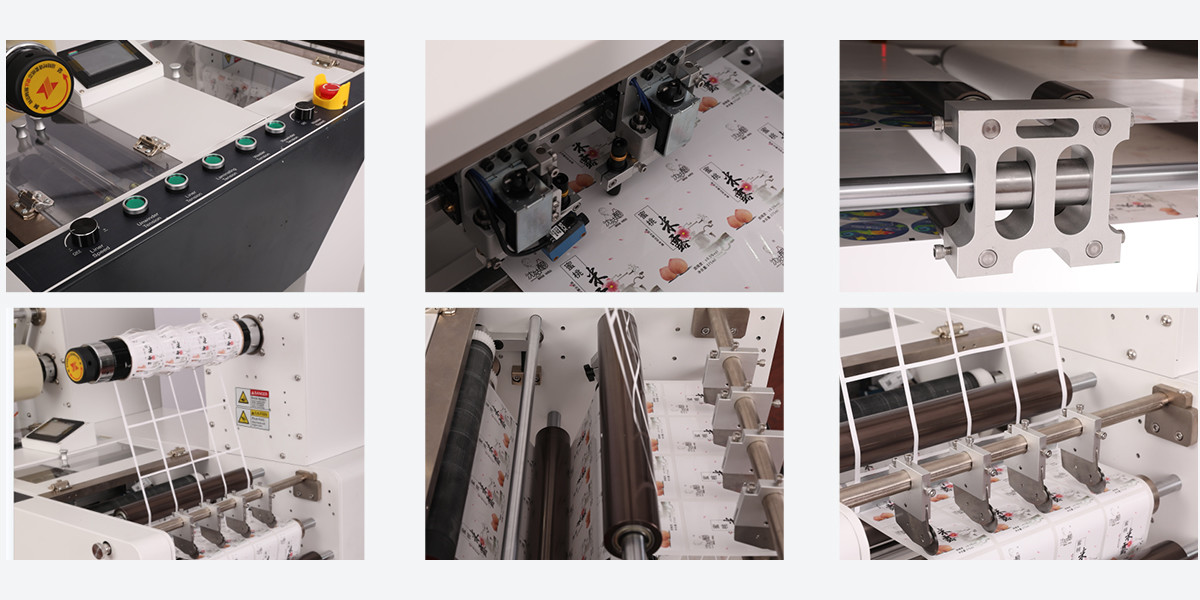

Machine highlights:
Fast and high precision with full-servo motor
Intergrate lamination,die-cutter,waste removal,slitter and rewinder togther
Dual head design automatically adjusts and distributes the cutter
Sick track sensor can track single eye mark or double eye marks
Qr code or digital automatic switch file,automatic access to cut files
Intelligent cutting with trajectory optimization
| Specification | |

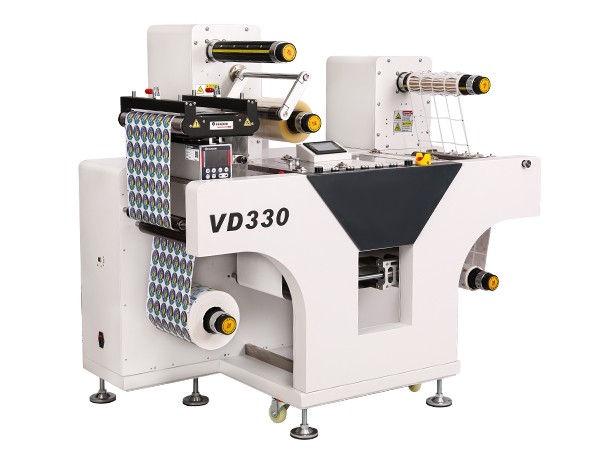

| Name | VD330 AI digital die cutter |
| Model | VD330 |
| Technology | Tungsten steel rotary blade |
| Cut mode | Roll to roll fly |
| Max.roll dia. | 450mm |
| Cut speed | 8m/minute(7cm *15cm) SS |
| Cut Precision | 0.1mm(repeat) |
| Media width | 40-340mm |
| Max.Label width | 320mm |
| Max.Label length | 500mm(multicut up to 4000mm) |
| Cut track | CCD camera,sensor black mark/blank |
| Cut head qty | 2set |
| Laminate Width | 330mm |
| Film roll diameter | 250mm |
| Max. waste roll Dia. | 200mm |
| Slit speed | same with cut speed |
| Slit width | 10-310mm |
| Slit precision | 0.1mm |
| Slitter qty | 4sets (up to 15sets ) |
| Rewinder qty | 1set 3'' |
| Machine size | 1150*925*1300mm/1150*925*1420mm |
| Machine weight | 460kgs |
| Power supply | 110-240VAC, 2000W |
| Data transfer port | USB2.0/Ethernet 10/100Base-T/GPIO |
| Software | Vorey AI SW (S version) |
| File format | PLT,DXF |
| Other functions and device | Auto change cut job(digital number) |
| Auto adjust head distance | |
| Web guide(range +25mm) | |
| Auto optimize file and set blade dropping point | |
| Based quantity label can be completed at one time | |
| Waste remover | |
| Options | Built-in Film liner remove |
| sheet cutter (out) | |
