Network Transmission CTP Plate Printing Densitometer

1 set
Network Transmission CTP Plate Printing Densitometer
Features Gallery Product Description Request A Quote
Touch Screem: Android OS With HD 720
Dimension: 180*70*55
Image Format: BMP
Measuring Time: 1 Second
Net Weight: 300 G
High Light:

CTP Plate Printing Densitometer


Network Transmission Printing Densitometer


720P LCD Printing Densitometer

Basic Infomation
Place of Origin: CHINA
Brand Name: Ecoographix
Certification: ISO9000, ISO20001, CE
Model Number: ECOO Densitometer
Payment & Shipping Terms
Packaging Details: carton with protecitive frame
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Product Description

Ecoographix Densitometer Dot Detector Of Printing CTP Plate




Dot mainly expresses hue and gradation in printing industry. They are foundation of copy and color reproduction of printed products. The advanced dot measurement technology is used for detecting and controlling plate and quality of dot. It supports all kinds of screening technologies used at present including amplitude screening, frequency modulation screening, specialized screening and hybrid screening technology.

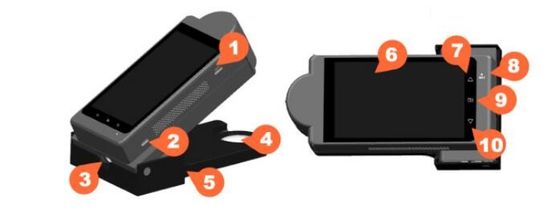

Network Transmission CTP Plate Printing Densitometer 0
Performance characteristics


1.Android OS with HD 720 capacitive touching screen, storage of shooting and measured data and wireless network transmission.

2.Real time HD shooting of micro image dots for reveal reduction quality of dots in detail.

3.Measurement APP is equipped with advanced image processing technology that ensures precise measure data, and eight measuring instruments for satisfying measurement of not only daily dot ratio and screening lines, but also measuring of length, angle and area of dots and lines.

4.Electronic precise focusing with step motor to coordinate lens for a sharply clear focusing.

5.Convenient data storage through built-in one-button shoot


Model Ecoo Densitometer
Magnification 5-200
Screen 720P HD LCD touchable screen
Operation system Android 5.0
Digital zoom 2
Image format BMP
Net weight 300g
Set weight 500g
Image size 1280*720
Lighting White light LTD*8pcs
Measuring time 1 s
Repeatability ±0.02 D(density),±1%(dot area)
Interface Micro USB 2.0, HDMI
Storage 16GB
Battery capability 3200mAh
Battery type Rechargeable lithium battery
Network WIFI
Dimension 185*70*55 mm
Sensor CMSO 1.3 megapixel

Working conditions: temperature 0~40ºC, relatively humidity ≤ 85%, avoid violent collision, heavy dust ;
Storage conditions:temperature:-20~40ºC in dry and cool place


* Android system, with photo taking, data measuring & saving, wifi connection functions;
* 720P high resolution touch-screen can represent print image dots clearly;
* Auto-focusing camera can easily realize two different scopes magnifying representation;
* Advanced image processing technology, ensures the data measurement accuracy;
* Eight built-in measurement tools can fulfill not only dot percentage and image screening measuring, but also measure length, angle, area, etc.

Scan by wechart to see the video for more specification


1. Do you have other accompanying products to make an easy purchase for some end users?
Yes, we offer full range of prepress and postpress products for offest printing, including CTP/CTcP plates at most favourite price. In addition, blanket, ink, developer, processors, cutting machine and binding machines..

2. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping.

3. What are your main products ?
Generally, we manage two types of products: prepress equipments and consumables, postpress equipments and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.

4. How do you delivery the goods?
For small quantity, we delivery the cargo by express service. For large quantity, any kinds are available as customers require.
