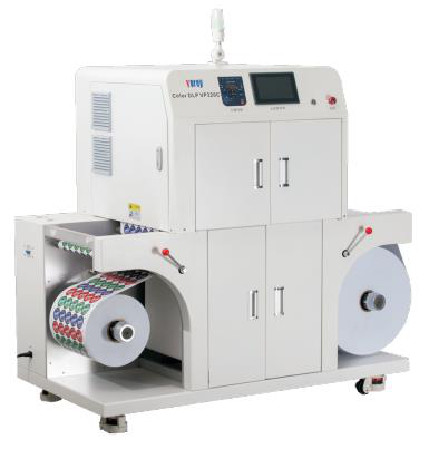

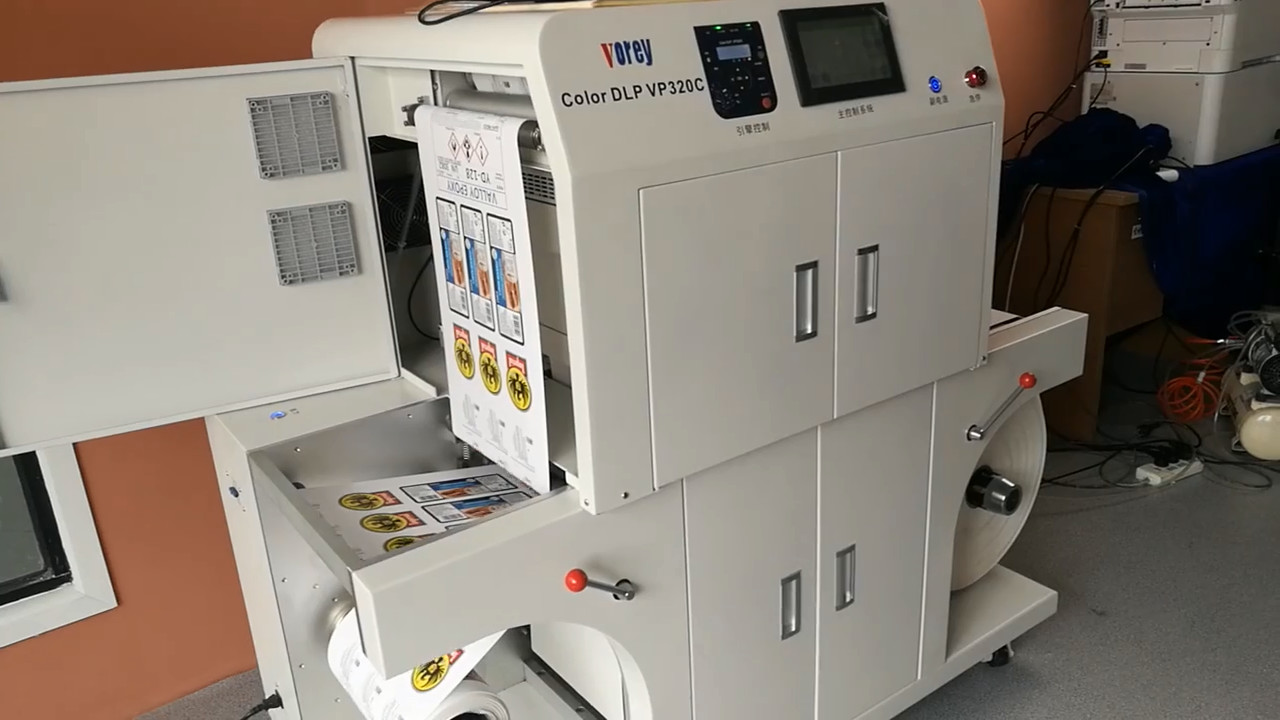

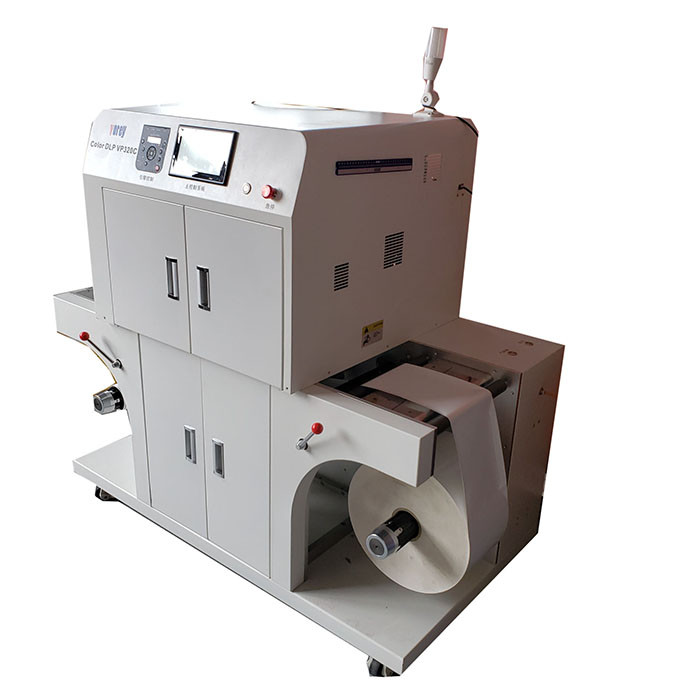

308mm Format Digital UV LED Flexo Label Printing Machine

1 set
MOQ
Negotiable
Price
308mm Format Digital UV LED Flexo Label Printing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Speed: 7.26 M/min
Technology: 4 Color (CMYK) LED Technology
Printing Width: Min 210mm Max 308mm
Printing Length: Max 1200mm Min 98mm
Applicated Substance: Paper: Paper, High Glossy Paper,Matt Paper; Film: PET, PP, PE, GHS
Resolution: 1200x2400dpi
Monthly Running Length: Max.20000sqm
Warranty: 1 Year
High Light:

UV LED Flexo Label Printing Machine

,

308mm Format Label Printing Machine

,

Programmatic Flexo Label Printing Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: Ecoographix
Certification: ISO9000, ISO20001, CE
Model Number: DLP VP320C
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T
Supply Ability: 300 SET PER YEAR
Product Description

308 mm format Automatic digital UV LED label printing machine

Digital label printing machine



Brief introduction

This machine automatically edits jobs together, integrated with programmatic printing. PhaserMatch 5 color management system was nested to printing software. You can get best image label and finish the jobs easily.

It running must be with connecting machine

Technical data


Print speed:

Up to 7.26 meters/min (30ft/min)





Feeder system:
Max. roll media diameter
Roll media core diameter
Print technology: 4 Color (CMYK) LED technology Max. weight roll media
Preparing time: 533MHz Auto tension adjustment system

Printer processor:

less than 28s
Connect media table
Media processing system
Data port :
(Standard)10BASE-T/100BASE-TX, USB2.0
Printing cooling system
Feeding adjustment system
(Options) internet 1000BASE-T, IEEE1284-B Size: 1400*810*1600mm



Media width: 304mm Weight: Print engine:423KGS
Print width: Min 210mm Max 308mm
Operating environment:
Temperature:20ºC-23ºC
Print length: Max 1200mm Min 98mm Humidity: 45-55% RH

Substratetypes:
Paper: Paper, High glossy paper,Matt paper
Power supply:
110-127 VAC,50-60Hz@2800W
Film: PET, PP, PE, GHS.. 220-240 VAC ,50-60Hz@2800W
All of media was tested in special environment, not tested media possible can't be used

Power consumption:
(AC220-240V) sleep 75W
Print quality: 1200*2400 dpi waiting 100W

Toner supplies:
CMY-18500sheets (A4,5% coverage rate) K-26000sheets (A4, 5% coverage rate) running 1100W
( Rated according to ISO/IEC 19798 guidelines) Monthly running job: Max.20000sqm (advice)
Drum supplies: CMYK-100000(print runs according to the operating cycle,Medium size and the direction to change) Warranty 1 year (excluding high consumable parts)

308mm Format Digital UV LED Flexo Label Printing Machine 0
Tips

  1. Published performance results based on laboratory testing. Individual results may vary.
  2. This product is designed and engineered to operate only with genuine iSys Label consumables and certified media substrates. Please contact iSys for the most currentCertified Media List of substrates available.
  3. Letter-size sheets at 5% coverage. Printer ships with a 7,500 page set of starter toners,
  4. Based on 500 cut-sheet pages/job. iSys Label reserves the right to change product specifications without notice. Trademarks are the property of their respective manufacturer.
