Sleeve Technology High Quality Integrated Automatic Rotary PP Offset Flexo Printing Machine
☽ Features
☾ Specifictions
Automatic Rotary Offset Printing Machine
Model
ECOO-ZP 480/ ECOO-ZP 680
Max. printing speed
180m/min; 180m/min
Printing color
4-12 colors; 4-12 colors
Max. web width
480mm; 680mm
Max. printing width
460mm; 660mm
Max. unwinding diameter
1000mm; 1000mm
Max. rewinding diameter
1000mm; 1000mm
Printing length
380-690mm; 430-630mm
Dimensions(L×W×H)
15.2m × 3.7m × 2.1m
Unwinder + Flexo unit with cold stamping + 5; Offset units + Flexo(varnishing) + Die-cutting unit + Rewinder
| Automatic Rotary Offset Printing Machine | ||
| Model | ECOO-ZP 480 | ECOO-ZP 680 |
| Max. printing speed | 180m/min | 180m/min |
| Printing color | 4-12 colors | 4-12 colors |
| Max. web width | 480mm | 680mm |
| Max. printing width | 460mm | 660mm |
| Max. unwinding diameter | 1000mm | 1000mm |
| Max. rewinding diameter | 1000mm | 1000mm |
| Printing length | 380-690mm | 430-630mm |
| Dimensions(L*W*H) | 15.2m * 3.7m * 2.1m | |
|

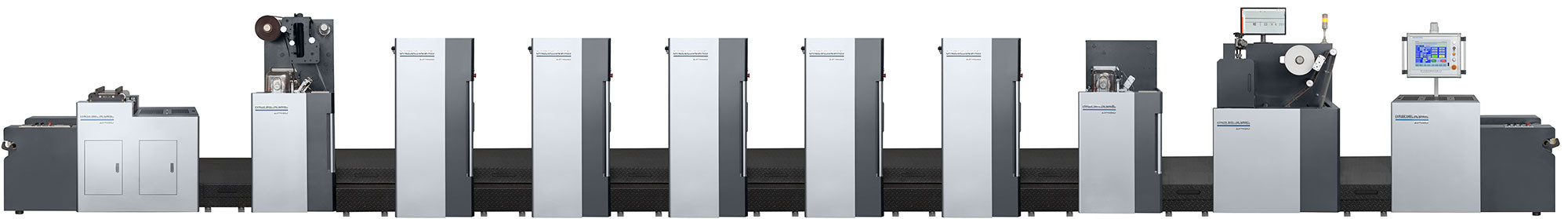

Unwinder + Flexo unit with cold stamping + 5; Offset units + Flexo(varnishing) + Die-cutting unit + Rewinder |
||
☽ Details
 |
|
|
| Heavy Offset Printing Unit | Variable Printing Sleeve | Automatic Ink Control System |
Heavy Offset Printing Unit
High quality heavy offset printing unit with well-designed inking system which can transfer ink fast & evenly, avoids gear mark and ghost image effectively. The printing quality can be highly improved.
Variable Printing Sleeve
When the printing job with different repeat length, just change both plate and blanket sleeve accordingly the sleeve changing is very fast and efficient.
Automatic Ink Control System
One-button setting, ink control is automatically, because of ink supply automation and precision, it improves the printing efficiency & quality, and reduces wastage.
|
|
|
| *Flexo Unit | *Cold Stamping Unit | *Die-cutting Unit |
*Flexo Unit
In order to print more shining, the flexo unit can do spot varnishing or full varnishing or drip off, can be installed according to user's requirement.
*Cold Stamping Unit
Cold stamping with registration and hologram transfer, can be installed according to user's requirement.
*Die-cutting Unit
Adopts magnetic roller, the printing and die-cutting can be finished at one time. It can be installed according to user's requirement.

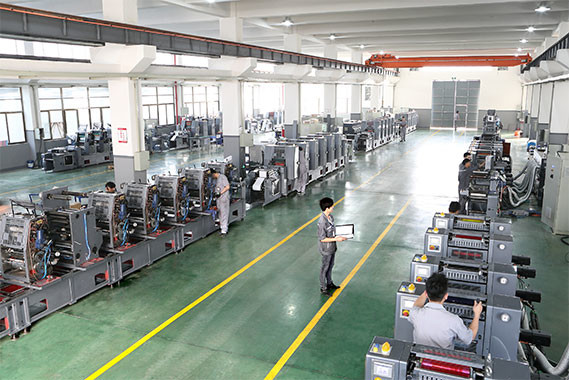

☾ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
☽ Certificates
☾ FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency cases.
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.
Q6: What is your normal payment term ?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
Q7: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
