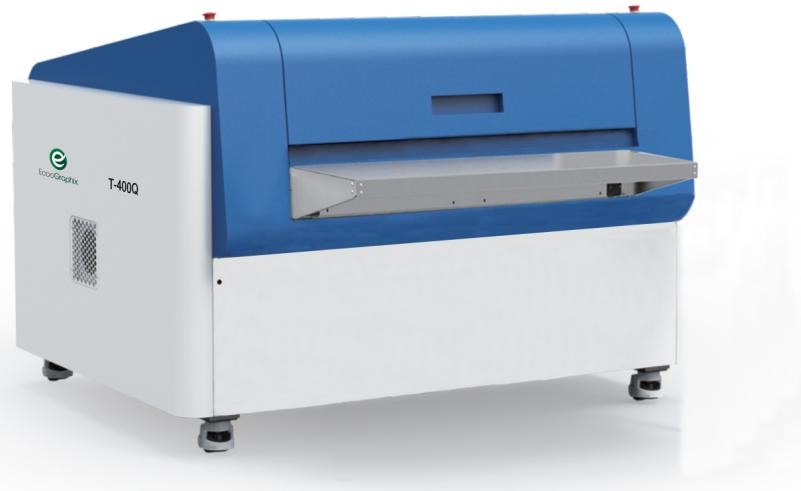

Ctp Plate Making Machine 2400dpi For Newspaper Printing

4up A2 B2 Online CTP Plate Offset Printing Platesetter Machine

For Newspaper , Commercial Packaging Printing


Features:

1) Superior dot quality reproduction proven by worldwide market:

a) 1%-99% dot reproduction

b) Up to 250lpi screening

c) 2400 dpi, 1200dpi optional

2) Production speed:  speed at 55 plates per hour, 1030X800 size at 2400 dpi

3)Fully qualified: for any thermal non-process plate and process plates.

4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany

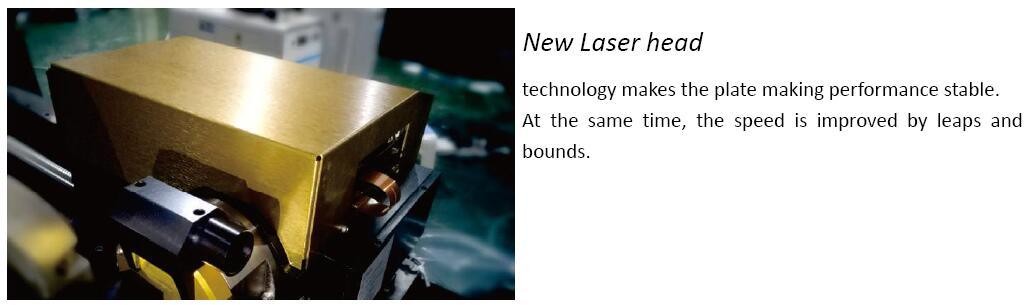

5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)

6) Long warranty of the machine: 3 years warranty (free replacement of all parts)

7) Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.

A New Era of Top end CTP
--- Super fast, Supreme Imaging Quality, Full Automation (Inline punch built in)
