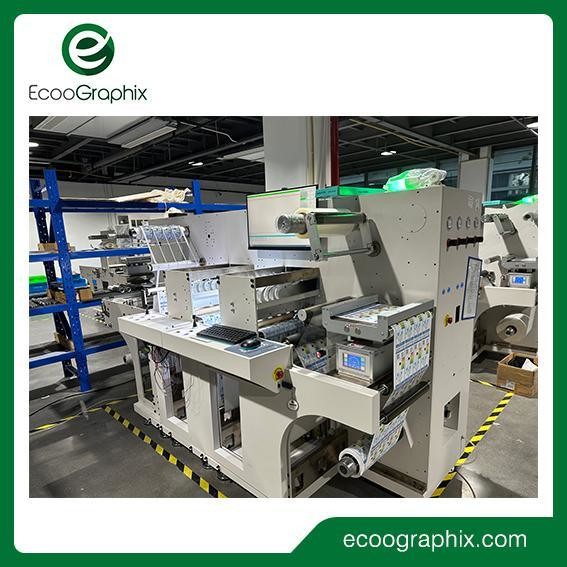

4PCS Digital Label Die Cutting and Slitting Machine

1 SET
MOQ
Negotiable
Price
4PCS Digital Label Die Cutting and Slitting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Cutting Speed: Max. 9m Per Minute(Depend On Label Shape And Size)
Slitting Precision: 0.1mm
Cutting Media Width: 40-350mm
Max. Label Width: 330mm
Min. Label Length: 10mm
Cutting Tracking: CCD Camera
High Light:

Servo Paper Straw Making Machine

,

Intelligent Paper Straw Making Machine

,

Dia 5mm Paper Straw Making Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-VD3350
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



 4PCS Digital Label Die Cutting And Slitting Machine









 ❶. Specifictions

Digital Label Die Cutting Machine

Model
ECOO-VD3350


Max. media roller
Diameter 450mm


Cutting media width
40-350mm


Max. label width
330mm


Min. label length
10mm


Max. label length
600mm


Cutting speed
Max. 9m per minute (Depend on label shape and size)


Cutting blades
(Standard) 4 pcs


Slitting blades
(Standard 4 pcs) Max. 15pcs


Cutting tracking
CCD camera


Die-cutting technology
With tungsten steel rotary blades


Cutting precision
0.1mm (Duplicate)


Slitting speed
Max. 100m per minute


Slitting width
10-330mm


Slitting precision
0.1mm


Machine size(W*D*H)
2100*1195*1575CM


Machine weight
1200kg


Power
110-127VAC 50-60HZ, 1000WATTS/ 220-240VAC 50-60HZ, 1000WATTS


Warranty
1 year (Besides high consumable parts)


Options
Cutting head/ Slitting unit/ Film back liner removal/ Sheet paper cutter



Digital Label Die Cutting Machine
Model ECOO-VD3350
Max. media roller Diameter 450mm
Cutting media width 40-350mm
Max. label width 330mm
Min. label length 10mm
Max. label length 600mm
Cutting speed Max. 9m per minute (Depend on label shape and size)
Cutting blades (Standard) 4 pcs
Slitting blades (Standard 4 pcs) Max. 15pcs
Cutting tracking CCD camera
Die-cutting technology With tungsten steel rotary blades
Cutting precision 0.1mm (Duplicate)
Slitting speed Max. 100m per minute
Slitting width 10-330mm
Slitting precision 0.1mm
Machine size(W*D*H) 2100*1195*1575CM
Machine weight 1200kg
Power 110-127VAC 50-60HZ, 1000WATTS/ 220-240VAC 50-60HZ, 1000WATTS
Warranty 1 year (Besides high consumable parts)
Options

Cutting head/ Slitting unit/ Film back liner removal/

Sheet paper cutter






 ❷. Introduction
The VD3350 high-speed digital label machine, which incorporates more A intelligent elements, adopts a unit design and can install up to 3 working units. Unique intelligent digital die-cutting software that automatically recognizes and extracts cutting files, and automatically adjusts tool spacing. Use a four blade*3 unit to work on different labels simultaneously. With the latest intelligent software, automated die-cutting runs through the entire workflow, making equipment operation easier than ever, greatly improving work efficiency while reducing manual intervention.







 ❸Producing And Packaging


From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



4PCS Digital Label Die Cutting and Slitting Machine 4



4PCS Digital Label Die Cutting and Slitting Machine 5



4PCS Digital Label Die Cutting and Slitting Machine 6



4PCS Digital Label Die Cutting and Slitting Machine 7



4PCS Digital Label Die Cutting and Slitting Machine 8



4PCS Digital Label Die Cutting and Slitting Machine 9









 . Certificates



4PCS Digital Label Die Cutting and Slitting Machine 10



4PCS Digital Label Die Cutting and Slitting Machine 11









 . FAQ







 Q1: What are your main products ?


A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.





 Q2: Where is your factory ?


A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!





 Q3: How long is the lead time ?


A: The lead time is normally 30 days. We can accelerate for emergency cases.





 Q4: Is there any certification for your machine ?


A: Yes, all our machines have been certified by SGS and CE.





 Q5: How long is the warranty period ?


A: EcooGraphix guarantees 1 year of warranty.





 Q6: What is your normal payment term ?


A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.







 Q7: What about the installation and after-sales technician support ?


A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.



These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
