Aluminum Offset Printing Punching CTP Plate Machine

Aluminum Offset Printing Punching CTP Plate Machine
Features Gallery Product Description Request A Quote
Max.Plate Size: 280-1550mm
Condition: New
Machine Size: 1500x1400x1100mm
Net Weight: 350KGS
Power Supply: 220V
Warranty: One Year
Application: Online CTP Platesetter
High Light:

Punching CTP Plate Machine


Offset Printing CTP Plate Machine


Aluminum CTP Plate Machine

Basic Infomation
Place of Origin: CHINA
Certification: CE
Model Number: EcooGraphix SDS100
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 20days
Payment Terms: T/T, L/C
Supply Ability: 500SETS
Product Description

Aluminum Offset Printing Plate Hole Register Punching Machine

for Online or Offline Offset Printing Thermal CTP/CTCP Platesetter



Other description

CTP Online Punch;

Printing punching equipment,

PS plate puncher,

CTP plate puncher

Offset plate punch system


Brief introduction

Mordern offset presses are equipped with motorized circumferential, lateral and axial register controls. Continuous use of the axial register control will cause premature wear to your press cylinder bearings and journals, leading to print quality problems.


Use this punch system to achieve plate-to-plate register before mounting the plates onto your press. This will avoid causing damage to your heavy investment. Perfect print register on your press is obtained in the shortest time.


This SDS 200 offset plate register punch system is specially designed for use with all makes of sheet-fed offset presses including: Heidelberg, Man-Roland, KBA, Komori, Mitsubishi, Akiyama, Ryobi, Hamada and many others.


Model SDS 200
Machine dimension 1270mm*820mm*1360mm
Net weight 250 kg
Power supply

208-240v, single phase, 50/60 Hz

100-120V, single phase, 50/60 Hz

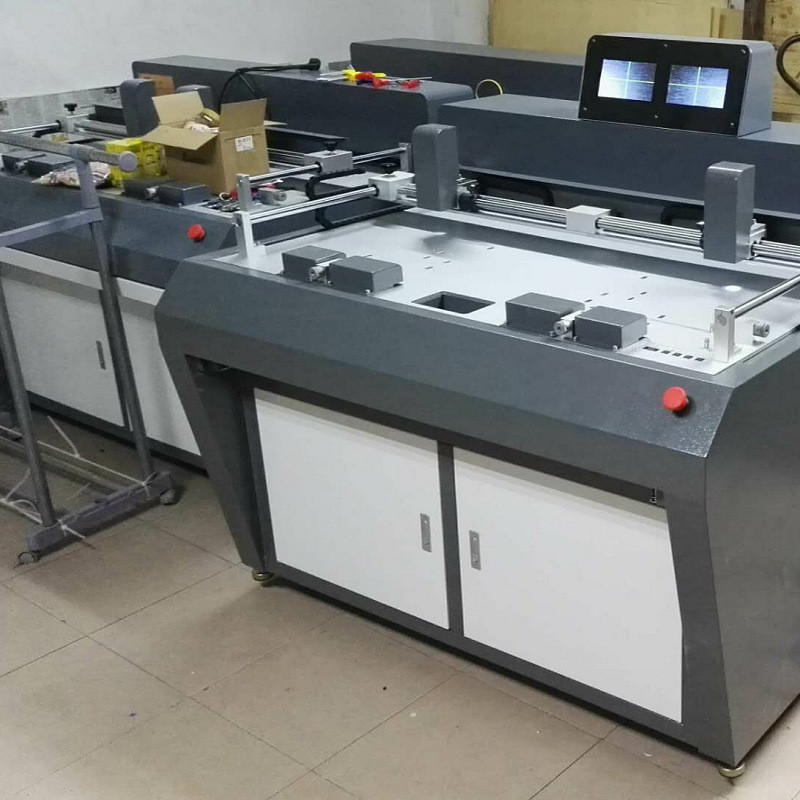

Aluminum Offset Printing Punching CTP Plate Machine 0

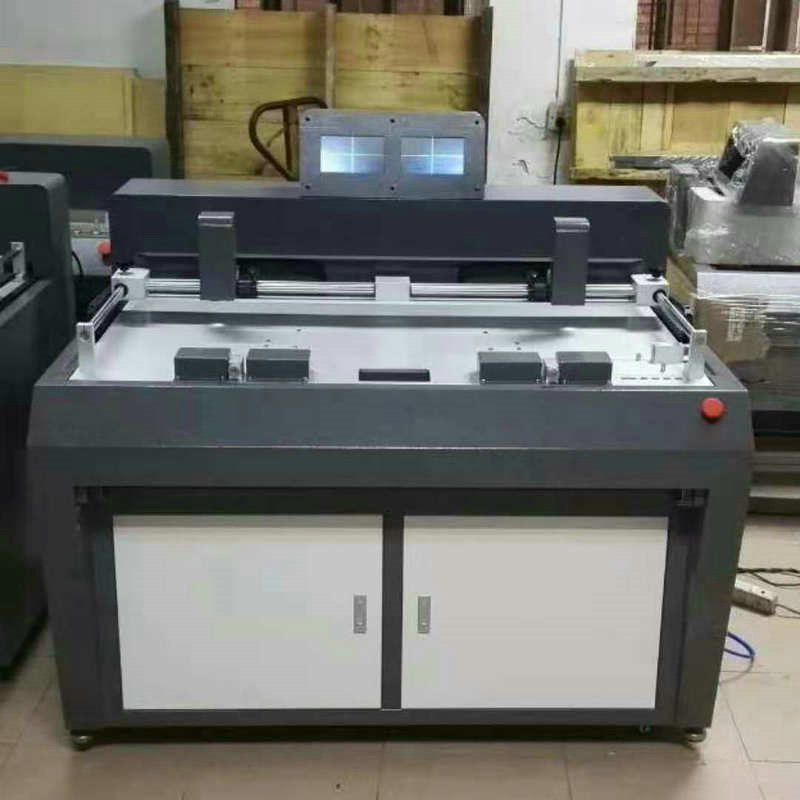

Aluminum Offset Printing Punching CTP Plate Machine 1


- Suitable for all sheet-fed offset presses up to 40”
- Can be custom built for larger formats
- Dual CCD camera system with 40 times magnification of cross mark targets
- Pneumatic punching AND bending action in one step
- Reduce make ready time and wastage
- Reduce machine wear and tear by eliminating cocking mis-register



This machine will ensure:

-increase in efficiency

-reduction in make-ready wastage

-Zero plate re-makes due to zero plate punching and/or plate bending (where required) registration errors


Optional Equipment:

-Register bar for film mounting

-Register bar for plate exposure

-Built-in plate bending system


Specifications of the CTP Processor

ECOOGRAPHIX CTP Processor Series Specifications
Machine Type ECOO-P900E ECOO-P1150E ECOO-P1250E
Page Size 280-895 mm 280-1150 mm 290-1250 mm
Plate thickness 0.15-0.4mm 0.15-0.4mm 0.15-0.4mm
Processor Power 10-60 seconds 10-60 seconds 10-60 seconds
Temperature 10 to 45 ºC can be adjusted (automatic temperature control, cooling system)
Developing Capacity 46L 58L 70L
Drying Temperature 20-65 ºC can be adjusted
Electricity Source 220 V (210V-240 V)single-phase50-60hz
Work Rate 4.5KW 5KW   5.5KW
Net.Weight 320kg 340kg 512kg






Aluminum Offset Printing Punching CTP Plate Machine 2


Aluminum Offset Printing Punching CTP Plate Machine 3

Aluminum Offset Printing Punching CTP Plate Machine 4


1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTP machine, One year for the CTP Processor.

4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.

6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
