Thermal Foil Stamping Automatic Die Cutter 5500s/h

Thermal Foil Stamping Automatic Die Cutter 5500s/h
Features Gallery Product Description Request A Quote
Max. Sheet Size: 790 X 560mm
Min. Sheet Size: 310 X 260mm
Inside Chase Size: 780 X 530mm
Max. Machine Speed (s/h): 5500
Inter-platen Distance: 51.5mm
Rated Power: 26kw
The Thickness Of Stamping Plate: 5(Optional 4+1)mm
Electric Heating System: 8 Zones
High Light:

Thermal Foil Stamping Die Cutter


5500s/H Automatic Die Cutter


26kw Automatic Die Cutter

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-TDS790
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description


 Automatic Online Die Cutter With Thermal Foil Stamping TDS790





 Brief Introduction



TDS790 automatic die cutting & hot foil printing machine is consisted of feeding unit, main unit and delivery unit. Non-stop feeding and delivery, electrical control system are available with the machine. The inserter, pre-stack, stripping unit, BECKER pump and thermal embossing are all for you options. It is used for automatic stamping roll material, after printing, lamination.







Suitable for the production of paper boxes, paper cups, wrapping labels, cardboard embossing, portable paper bags, paper covers, PVC, various plastics, etc.








Model      TDS790

Max. Sheet size(mm)      790x560

Min. Sheet size(mm)      310x210

Max. Die cutting size(mm)      760x520

Max. Stamping size(mm)      760x525

Inside chase size(mm)      780x530

Height of cutting rules(mm)      23.8

Inter-platen distance(mm)      51.5

Max. Pressure (N)      120x104

Stock range      Min. Sheet 90g/m2, Cardboard 157-2000g/m2, E, B flute

Min. Gripper margin(mm)      6

Max. Machine speed(s/h)      5500

Max. Stamping speed(s/h)      5000

The thickness of stamping plate(mm)      5(optional 4+1)

Longitudinal feeding shafts      3

Transversal feeding shafts      2

Feeding pile height(mm)      1200

Delivery pile height(mm)      950

Electric heating system      8 zones

Min. Foil width(mm)      40

Foil reel core(mm)      25(1'') 76(3'')

Rated power(kw)      26

Air supply      0.8-1.0MPa, ≥0.6m³/min

Overall dimension(mm)      3855x3650x2210

Weight of machine(kg)      8500


Model TDS790
Max. Sheet size(mm) 790x560
Min. Sheet size(mm) 310x210
Max. Die cutting size(mm) 760x520
Max. Stamping size(mm) 760x525
Inside chase size(mm) 780x530
Height of cutting rules(mm) 23.8
Inter-platen distance(mm) 51.5
Max. Pressure (N) 120x104
Stock range Min. Sheet 90g/m2, Cardboard 157-2000g/m2, E, B flute
Min. Gripper margin(mm) 6
Max. Machine speed(s/h) 5500
Max. Stamping speed(s/h) 5000
The thickness of stamping plate(mm) 5(optional 4+1)
Longitudinal feeding shafts 3
Transversal feeding shafts 2
Feeding pile height(mm) 1200
Delivery pile height(mm) 950
Electric heating system 8 zones
Min. Foil width(mm) 40
Foil reel core(mm) 25(1'') 76(3'')
Rated power(kw) 26
Air supply 0.8-1.0MPa, ≥0.6m³/min
Overall dimension(mm) 3855x3650x2210
Weight of machine(kg) 8500






♥ Gripper Bar
Adopting high-strength aluminum alloy to prolong the endurance and lighten the weight, and the design is especially suitable for thin paper.

♣ Gearbox Clutch
Intermittent system protects the machine from overload, and torque transfer system adopts the ball-filling groove design. Asymmetrical design can transfer the force perfectly, and also be reset easily after overload.






 Main Features



1) Main unit drive is using AC inverter control. The air clutch is imported for machine's running and break.


2) Micro-processor composed of PLC and program to monitor running of whole machine. More visual sketch plus word trouble indications in touch screen on the main unit to enable you to find trouble caused in shortest time to reduce machine down time.






 Die Cutting Section


· Precision worm gear crank toggle driving system ensures smooth and dynamic lower platen movement

· Precision stationery upper platen

· Chase locking by hand

· High quality gripper bar driving chain

· State-of-the-art 2 cam index gripper bar driving system to ensure smooth and precise gripper bar intermittent movement





 Foil Stamping System


· Five servo motor driven foil pull shafts, each individually programmable for short step and long foil stepping 3 axes in longitudinal directions; 2 axes in transversal direction

· Stamping console with industrial pc, Pro-Face touch screen and 6 thermometers for foil setting and temperature control with machine pre-heating timer

· Heating base with 6 heating zone each temperature individually adjustable

· Warning system for foil length





 Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

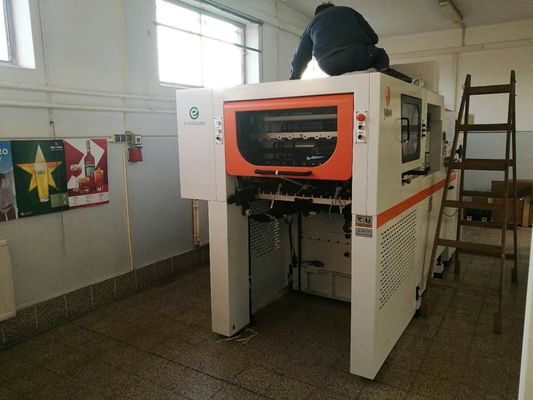

Thermal Foil Stamping Automatic Die Cutter 5500s/h 0
