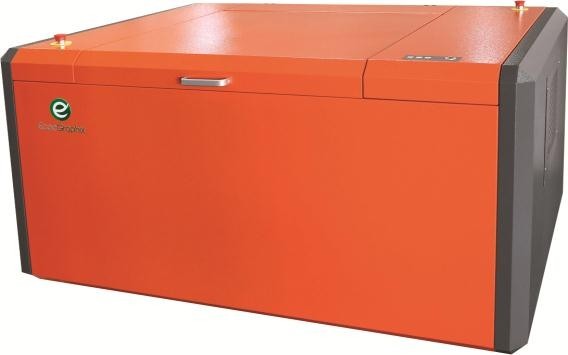

1.7mm Thickness 660mmX800mm Digital Flexo CTP Plate Machine
1. Application
As an advanced computer-to-plate solution, our EcooGraphix Flexo CTP system delivers exceptional plate quality for the most demanding flexographic applications across multiple industries.
Primary Applications:
High-definition label printing (including prime labels, security labels, and specialty labels)
Premium trademark reproduction with precise color matching
Sophisticated package printing for folding cartons, flexible packaging, and corrugated materials
Comprehensive Plate Compatibility:
1. Heat-Sensitive Corrosive Film Plates
Ideal for high-resolution applications requiring ultra-fine lines and micro-text
Exceptional dot reproduction for smooth gradients
Suitable for extended print runs

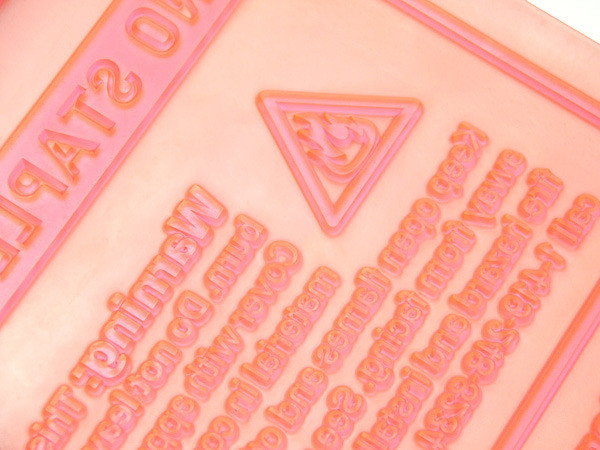

2. Digital Relief Printing Plates (Water-Washable)
Environmentally friendly processing
Fast washout times for improved productivity
Excellent ink transfer characteristics
3. Digital Flexo Plates - Water-Washable
Low VOC emission solution
Reduced water consumption in processing
Superior highlight reproduction
4. Digital Flexo Plates - Solvent-Based
Optimal for challenging printing conditions
Enhanced durability for abrasive substrates
Wide chemical resistance for specialty inks
5. Thermal PS Plates
Consistent performance across long runs
Excellent dimensional stability
Broad ink compatibility
6. Technical Advantages:
Industry-leading imaging resolution up to 5080 dpi
Precise exposure control for each plate type
Automated plate handling for consistent results
Integrated quality control systems
Workflow Integration:
Seamless connectivity with all major prepress workflows
Support for industry-standard file formats
Automated plate calibration and linearization
This expanded version maintains all original specifications while providing:
Detailed application scenarios
Technical benefits for each plate type
System capabilities
Workflow integration features
2. Characteristic
ⅠEasy to use:
After placing plate, the only step you need to do is to press a button to finish the plate loading within seconds.
Ⅱ Automatic Focusing:
The machine can be used for different thickness plate from 0.15mm to 1.7mm. Dynamic autofocus system keeps accurate focus constantly to ensure sharp dot.
Ⅲ Auto balance system of drum:
takes no more than 5 seconds to adjust drum balance block to a position, makes the drum stable in high speed rotation.
Ⅳ Auto switch of laser channel:
When any laser channels breaks down, laser channel auto switch system can continue output through the longest consecutive channel that remains working to ensure non-stop production.
Ⅴ Linear motor:
More accurate, more simple and more reliable.
Ⅵ Long lifetime and warranty of spare parts:
Laser Lifetime: >10000h
3. Specification
Model | FL-400 | FL-600E(EM) | FL-600S(SM) | FL-800E | FL-800S | FL-1500 | |
Laser Channel | 16-channel | 16-channel | 32-channel | 16-channel | 32-channel | 32-channel | |
Output Speed | 1.25m²/h | 1.25m²/h | 2.5m²/h | 1.25m²/h | 2.5m²/h | 1.8-2.0m²/h | |
Max. Breadth (mm) |
430 x 330 | 680 x 430 | 800 x 660 | 800 x 660 | 800 x 660 | 1524 x 1067 | |
Plate Thickness(mm) | 0.14–1.14 | 0.15–1.7 | 0.15–1.7 | 0.15–1.7 | 0.15–1.7 | 0.95–3.84 | |
Laser Power | High power semiconductor laser diode | Light valve laser | |||||
Plate Type |
Digital relief flexo plate(water-wash), Digital flexo plate(water-wash), Digital flexo plate(solvent-wash), Steel based digital plates (water/alcohol washable) are applied for EM/SM series |
Digital relief flexo plate(water-wash), Digital flexo plate (water-wash), Digital flexo plate (solvent-wash), Steel based digital plates(water/alcohol washable) |
Digital flexo plate(water-wash and solvent-wash) | ||||
Application | Label and Trademark | Trademark | |||||
Resolutions | 4000dpi | 2540 or 5080 dpi | |||||
Plate Loading | Manual load and unload | ||||||
Interface | USB2.0 | ||||||
Focus Adjust | Dynamic auto-focus | ||||||
Device Size (WxDxH mm) |
830x630x1030 | 1087x770x1000 | 1630x1170x965 | 2410x1240x1120 | |||
Net Weight | 280Kg | 400Kg | 800Kg | 1300Kg | |||
Power | 220V/50Hz, 60Hz, mainframe 0.6KW+Vacuum 1.5KW | 220V/50Hz, 60Hz, mainframe 1.5KW+Vacuum 1.1KW |
220V/50Hz, 60Hz, mainframe 0.6KW+Vacuum 1.1KW |
||||
Environment | Recommended temperature: 18-30℃, Humidity: 10%-80% |
4. Major Highlights
ⅠSuperior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction Up to 250lpi screening, 4000dpi resolution.
Ⅱ Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.
Ⅲ Worldwide top class components and parts supplied by international well known suppliers from Japan, USA and Germany.
Ⅳ Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
Ⅴ Long warranty of the machine: 3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 year warranty, very low cost of parts. For example, laser diode at US$250 per piece.
Ⅵ Guaranteed Service: Installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 months. Proactively revisit by engineers to be conducted. 7x24 hours service response.
Ⅶ Proven Worldwide market leader:
Over 6000 units installed worldwide over past 10 years.
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics.
Ⅷ Installations in other countries: UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.

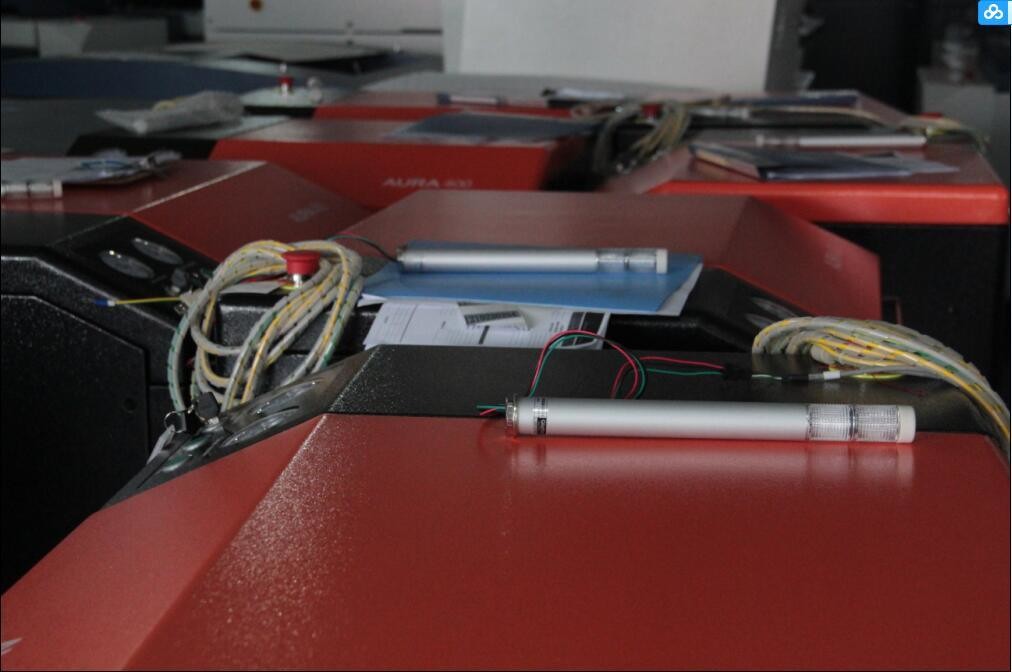

5. Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
6. Certifications
7. FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP machine factory is in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
Q3: Is there any certification for your CTP machine ?
A: Yes, all our CTP machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
