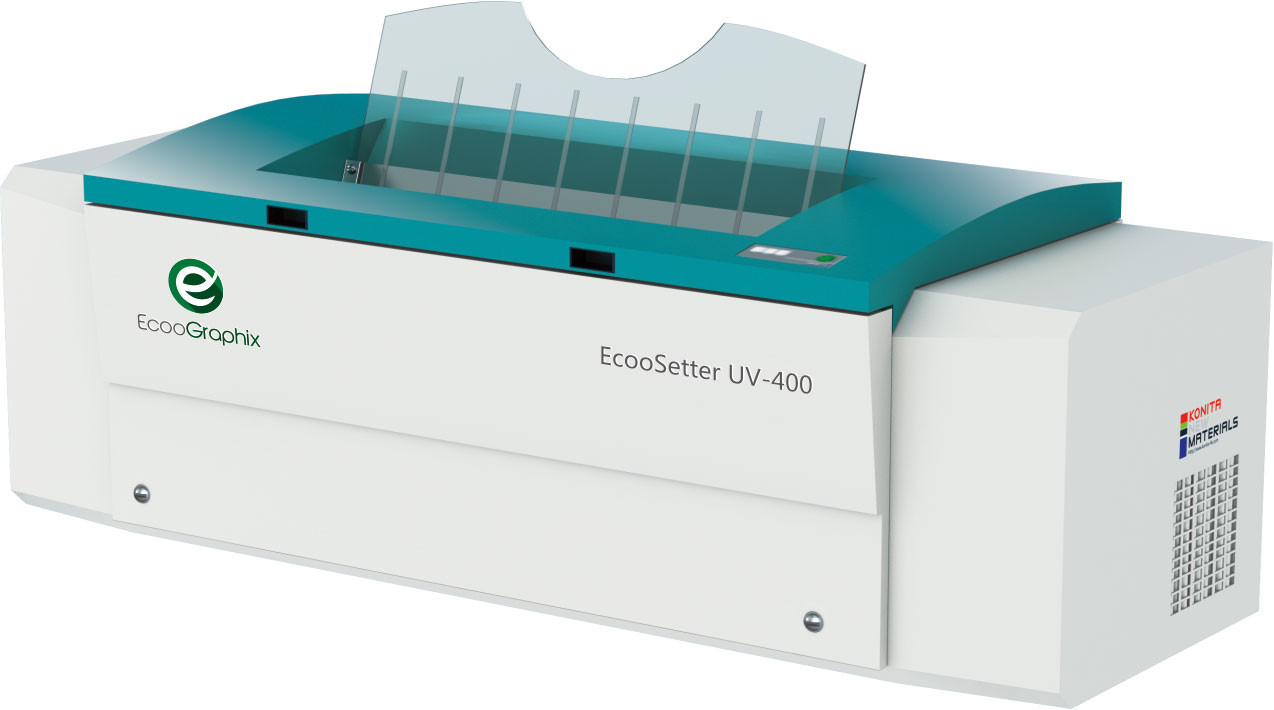

UV-400 CTP Offset Printing Computer To Plate CTCP Making Machine
► Specifications
| EcooGraphix UV Series UV-400 CTP Machines |
| Model |
UV-400F |
UV-400S |
UV-400E |
| Exposing Method |
External Drum |
| Imaging System |
48-channel |
32-channel |
24-channel |
| |
Discrete 405nm laser diode |
|
Throughput
|
28 plates/hour |
22 plates/hour |
16 plates/hour |
| |
800mm x 660mm, 2400dpi |
| Plate Sizes |
Max. 800mm x 690mm
Min. 400mm x 300mm |
| Exposing Size |
Max. 800mm x 646mm
Min. 260mm x 284mm |
| Media Type |
Positive UV-CTP/CTCP plate or high sensitive PS plate |
| Plate Thickness |
0.15mm to 0.30mm |
| Resolution |
2400dpi |
| Repeatability |
± 5μm(Continuous exposing for 4 times or above on the same plate with
a temperature of 23℃ and humidity of 60%)
|
| Interface |
USB 2.0/ USB 3.0(USB 2.0 is recommended) |
| Plate Loading |
Manual |
| Net Weight |
800 KG |
Machine Size
(WxLxH) |
1900 x 1200 x 1000mm |
| Power Supply |
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW |
| Environment |
Recommended: 21-25℃, Max. 15-30℃, Humidity: 40-70% |

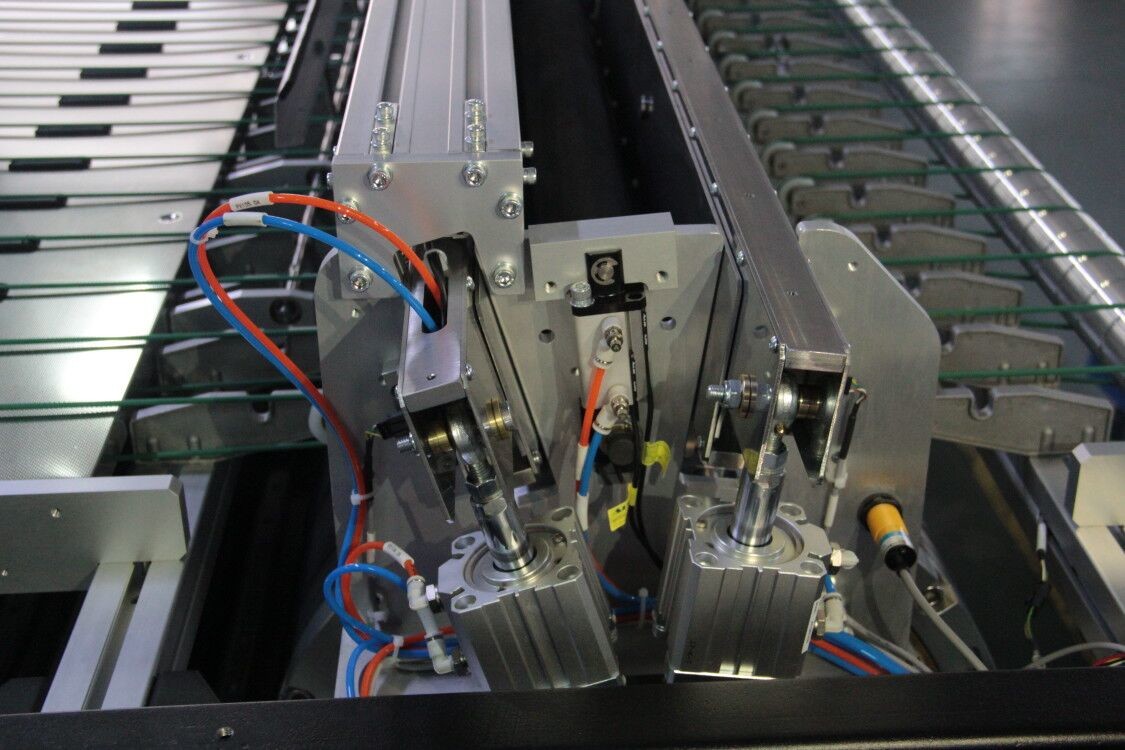

► Technical Details
► Installations In Other Countries
UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.
► Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
► Certificates
► FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP machine factory is in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
Q3: Is there any certification for your CTP machine ?
A: Yes, all our CTP machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
