A1 A2 UV Offset 128CH Laser Diode 44pph CTP Plate Machine

1SET
MOQ
Negotiable
Price
A1 A2 UV Offset 128CH Laser Diode 44pph CTP Plate Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Laser Channels: 32CH,48CH,64CH,128CH
Output Speed: 16pph,22pph,28pph
Max.Plate Size: 800X690(mm)
Condition: New Or Used Available
Resolution: 2400dpi,1200dpi Optional
Machine Size: 1900×1200×1000mm(W×D×H)
Warranty: 3years Or Lifetime
Machine Type: Automatic Loading And Unloading Offline CTCP
High Light:

128CH CTP Plate Machine

,

44pph CTP Plate Machine

,

UV Offset CTP Plate Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE
Model Number: UV800E /S/ F
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: about 20days
Payment Terms: L/C, T/T
Supply Ability: 500SET
Product Description
A1 A2 size UV Plate Offset Ctcp Platesetter Machine 128 CH Laser Diode 44pph

for offset commercial or newspaper printing


1.Application

  EcooGraphix Conventional CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.

EcooGraphix UV400series thermal CTP are for A2 or B2 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual,very easy to use.

  By EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.



2.Characteristic

Maximum size of plate: 800×690mm



Features: Small Volume, high stability and perfect output quality.



UV plate and thermal plate are available for you to lower production cost.






1. Specification

Model: EcooSetter UV-400S CTcP
Laser wavelength: 400-410nm
Plate: UV plate, high-sensitive PS plate
Exposing Method: External Drum

Imaging System: 32-channel

Throughput: 22 plates per hour, 800mmx660mm 2400dpi

Plate Size: Max. 800x690mm min. 400x300mm

Plate Thickness:0.15mm to 0.3mm

Resolutions:2,400dpi, 1200dpi optional

Repeatability:±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface:USB2.0
Weight:800KG
Size:1900×1200×1000mm(W×D×H)
Power Supply:Single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%

2. Other Similar Models:
Model UV-800F UV-800S UV-800E UV-400F UV-400S UV-400E
Exposing Mothod External Drum
Imaging System 64-channel 48-channel 32-channel 48-channel 32-channel 24-channel
  Discrete 405nm laser diode
Throughput 28plates/hour 22plates/hour 16plates/hour 28plates/hour 22plates/hour 16plates/hour
  1030mm x 800mm, 2400dpi 800mm x 660mm ,2400dpi
Plate Sizes Max.1163mm x 940mm
Min.400mm x 300mm
Max.800mm x 690mm
Min. 260mm x 300mm
Exposing Size Max.1160mm x 934mm
Min.260mm x 284mm
Max.800mm x 646mm
Min. 260mm x 284mm
Media Type positive UV-CTP plate with sensitivity ≤75mj/cm2
Plate Thickness 0.14mm to 0.30mm
Resolution 2400dpi,1200dpi optional
Repeatablity ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface USB 2.0
Plate Loading semi automatic
Net Weight 900kg 800kg
Machine Size
(WxLxH)mm
2330x1050x950 1900x1200x1000
Power Supply single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation Environment recommended:21-25ºC, Max.18-26ºC, humidity:40-70%





3. Major Highlights of EcooGraphixT-800 thermal CTP

1) Superior dot quality reproduction proven by worldwide market:

1%-99% dot reproduction

Up to 250lpi screening ,2400 dpi or 1200dpi optional



2) Fully qualified: for any thermal non-process plate and process plates.



3) Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.



4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany



5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)



6) Long warranty of the machine: 3 years warranty (free replacement of all parts)

Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.



7) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.



8) Proven Worldwide market leader: (Some highlights installations)

Over 6000 units installed worldwide over past 10 years

USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.

Turkey: 35 units installed in Turkey by Esen Graphics

Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc.

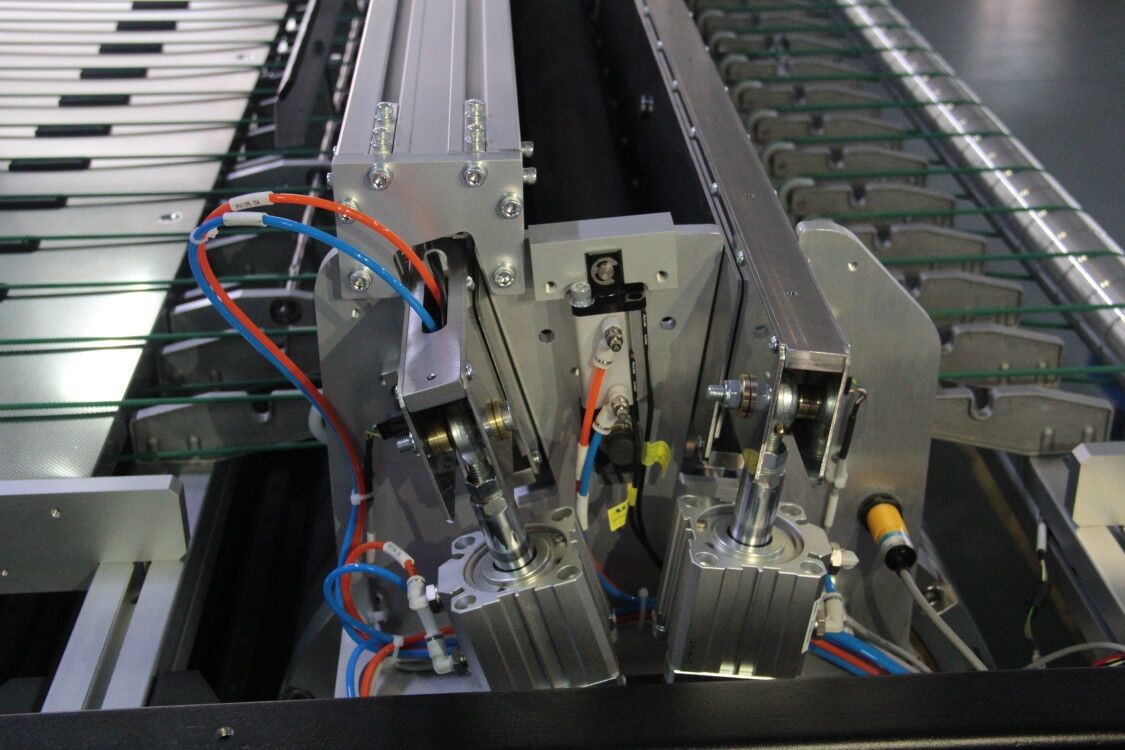

A1 A2 UV Offset 128CH Laser Diode 44pph CTP Plate Machine 0

A1 A2 UV Offset 128CH Laser Diode 44pph CTP Plate Machine 1



4. Our Factory

A1 A2 UV Offset 128CH Laser Diode 44pph CTP Plate Machine 2

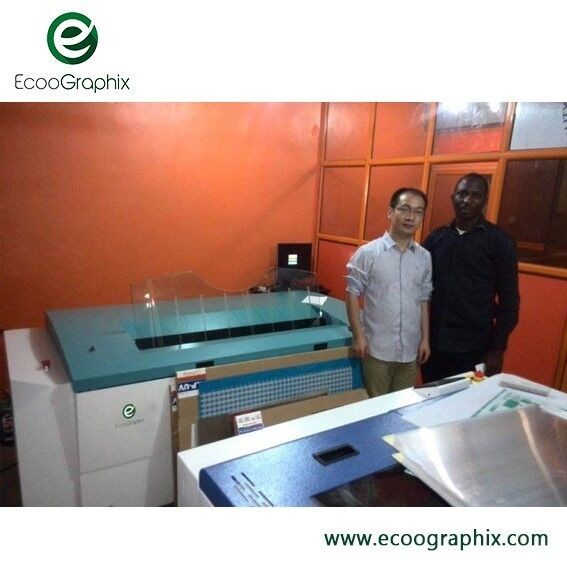

Our Partners and Customers

A1 A2 UV Offset 128CH Laser Diode 44pph CTP Plate Machine 3

A1 A2 UV Offset 128CH Laser Diode 44pph CTP Plate Machine 4

A1 A2 UV Offset 128CH Laser Diode 44pph CTP Plate Machine 5



FAQ:
Q1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.




Q2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!


Q3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.

Lifetime Warranty for CTP machine and CTP plate.
