ZDJ1200CS Semi Automatic Sheet Paper Bag Making Machine

1SET
MOQ
Negotiable
Price
ZDJ1200CS Semi Automatic Sheet Paper Bag Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Size L*W*H: 1370cm*160cm*117cm
Raw Material: Single And Double PE Paper
Paper Thickness: 100g-350g
 Max. Paper Sheet Size: 1180mm*630mm
Voltage: 380V/50HZ 13KW
Glue Type: Cold&Hot
Speed: 80pcs/min
Gross Weight: 11000KGS
Warranty: 1year
Bag Width: 160mm - 450mm
Bag Height: 550mm - 200mm
High Light:

16OZ Popcorn Cup Forming Machine

,

300gsm Popcorn Cup Forming Machine

,

135mm Popcorn Cup Forming Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE
Model Number: ZDJ1200CS
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30DAYS
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Product Description

                               ZDJ1200CS Semi Automatic Sheet Paper Bag Making Machine



   EcooGraphix is a professional supplier of eco-friendly paper processing machines and paper products. Following the enterprise development mission of “Create Value for Customers”.


   At the beginning of 1990s, the production of snack boxes (such as ice cream paper cone, hamburger box, etc.) mainly relied on manual operation or machines imported from Europe and North America. The poor sanitary condition, low product consistency, low efficiency, expensive imported machines, long delivery period and high service cost all restricted the development of domestic paper production enterprises. However, Chinese national industries still developed rapidly and Dayuan was resolute to enter this completely new industry.

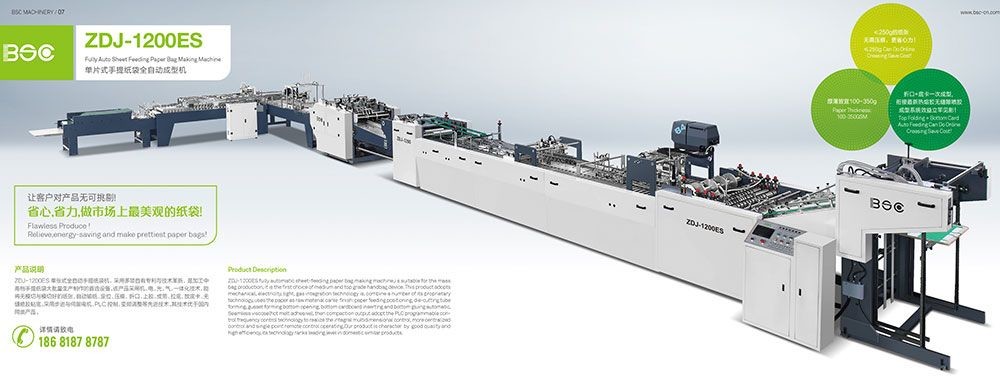

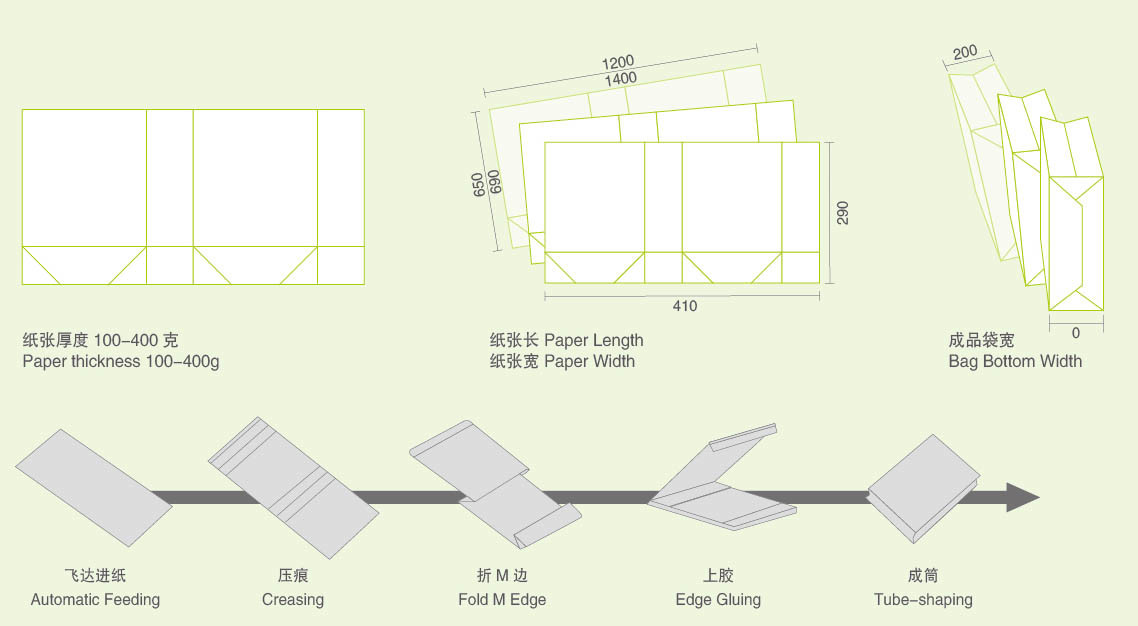

ZDJ-1200CS ,the single sheet automatic paper bag molding machine, with several proprietary patents and technological innovations, is the first choice to produce medium and high-grade portable paper bags in mass production. The product is integrated with machine, electricity, light and gas. It can automatically transfer the paper, positioning, indentation, folding, adhesive, tube, and bottom. The advanced technologies such as PLC control, frequency conversion adjustment and so on are used. Its technology is superior to the domestic products of the same kind.



Available paper: Kraft paper,Art paper, White board, White cardboard (including peritoneum paper)





ZDJ-1200CS Paper Bag Tube Forming and Gluing Machine

Size

L*W*H

13700mm*1600mm*1170mm Weight 11T
Min. Paper Sheet Size 520mm*290mm Power 13kw
Max. Paper Sheet Size 1180mm*630mm Gusset 55mm - 180mm
Bag Width 160mm - 450mm Paper Weight 100g-350g
Bag Height 550mm - 200mm Speed 60-80pcs/min
Folding 25mm - 60mm Glue Cold & hot
HDJ-70C Bottom Forming and Gluing Machine

Size

L*W*H

3800mm*1000mm*110mm Weight 1.5T
Bag width 100mm - 550mm Power 6kw
Bag Height 130mm – 600mm Paper Weight 100g-400g
Bottom width 55mm - 180mm Speed 70-120pcs/min
Gusset 60mm - 170mm Glue Hot melt



ZDJ1200CS Semi Automatic Sheet Paper Bag Making Machine 0

ZDJ1200CS Semi Automatic Sheet Paper Bag Making Machine 1

ZDJ1200CS Semi Automatic Sheet Paper Bag Making Machine 2

ZDJ1200CS Semi Automatic Sheet Paper Bag Making Machine 3

ZDJ1200CS Semi Automatic Sheet Paper Bag Making Machine 4




What's your advantages ?
--15 years experience:We have been in making paper bag machines for 30 years.

--Customers all over the world

--Certificate: CE certificate,ISO 9001

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
