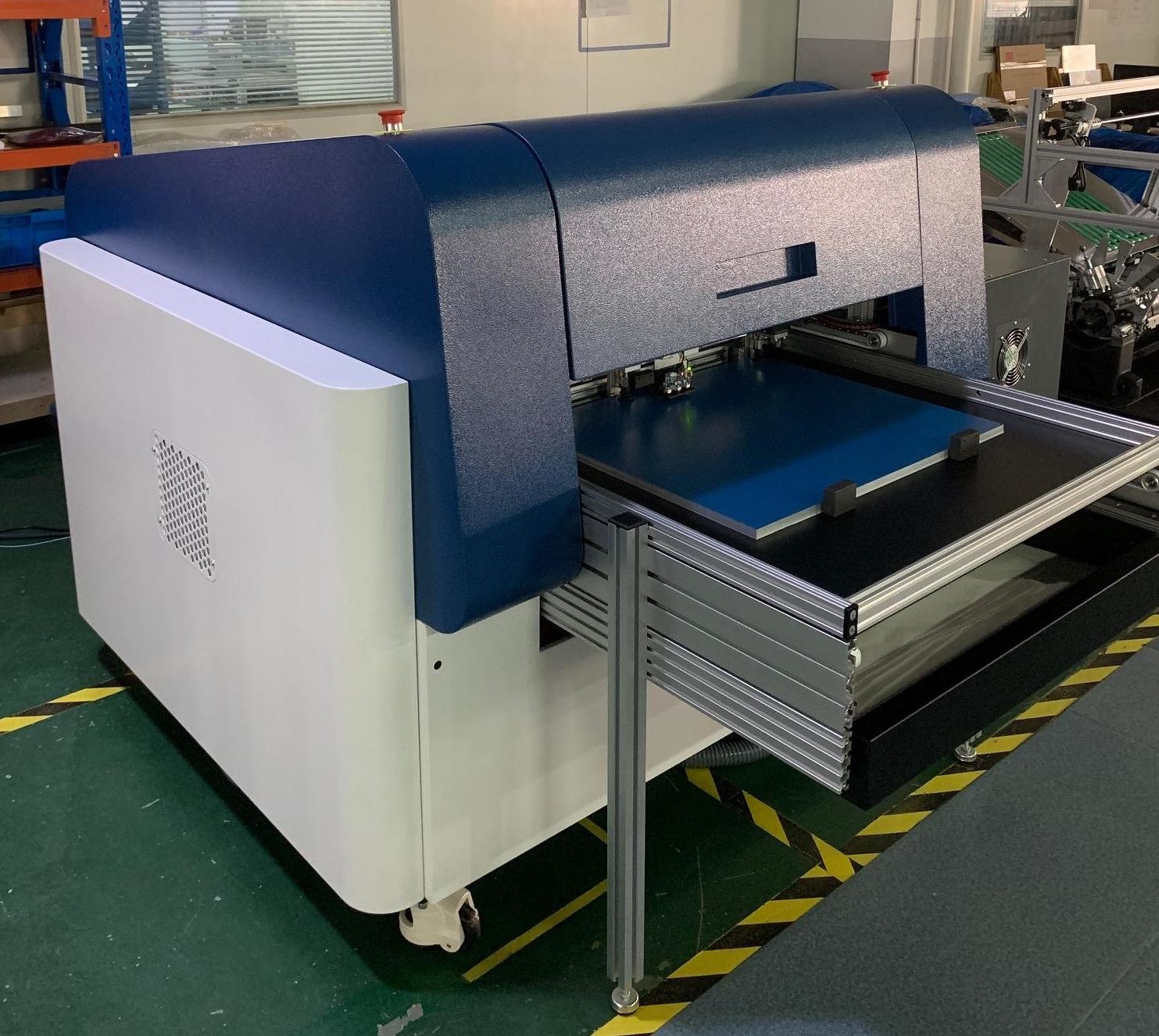

25pph Online Thermal CTP Plate Making Machine for A2 Offset Printing
For Newspaper , Commercial Packing Printing
Features:
1) Superior dot quality reproduction proven by worldwide market:
a) 1%-99% dot reproduction
b) Up to 250lpi screening
c) 2400 dpi, 1200dpi optional
2) Production speed: speed at 55 plates per hour, 1030X800 size at 2400 dpi
3)Fully qualified: for any thermal non-process plate and process plates.
4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany
5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
6) Long warranty of the machine: 3 years warranty (free replacement of all parts)
7) Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.
A New Era of Top end CTP
--- Super fast, Supreme Imaging Quality, Full Automation (Inline punch built in)
T-400 QS Specifications | |
Model | T-400QS |
Exposing Method | External Drum |
Imaging System | 825nm laser |
Throughput
|
25plates/hour |
800 x 660mm, 2400dpi, Plate sensitivity 120mj/cm² | |
Plate Sizes | Max.800mm x 660mm Min.300mm x 300mm |
Plate Thickness | 0.15mm, 0.30mm |
Resolution | Standard: 2400 dpi or 1200 dpi |
Repeatability | 0.01mm |
Interface | Optical Fiber(Fiber-way) |

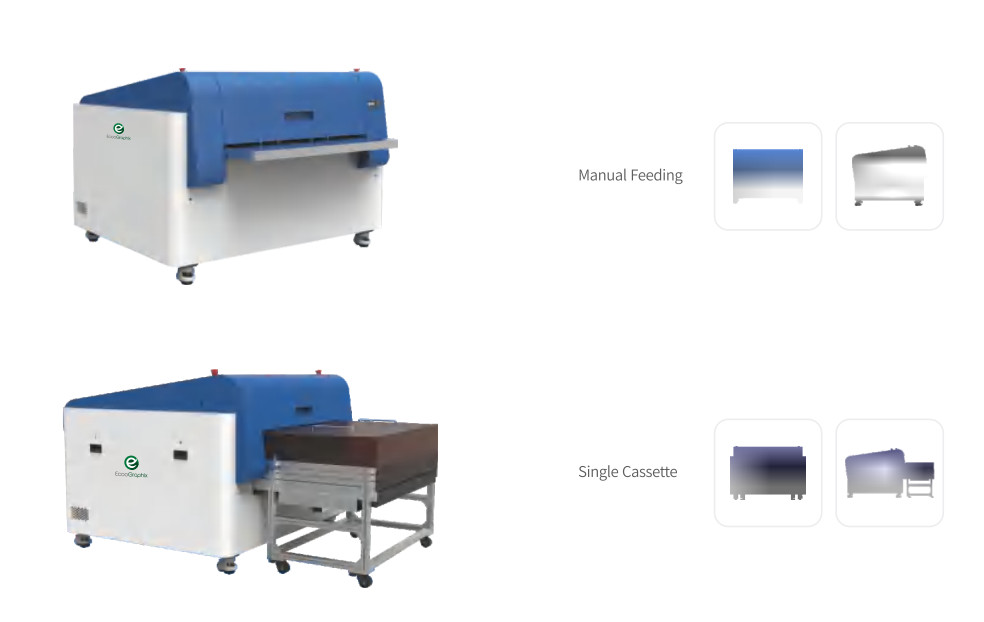

Plate Loading | Standard: single cassette autoloader with manual plate insert function |
Inline punching System | Optional: internal punching (maximum four sets of plate holes) |
Machine Size (W x Lx H)mm |
1450x1950x1290 (additional 600mm length for conveyor to wash unit) |
Power Supply |
CTP(single phase:220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W)) Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W)) |
Operation Environment |
recommended:21-25℃, allowable temperature: 15-30℃,relative humidity:40-70% |
Similar Models
T-800 Q (F, V, X)Specifications | |||
Model | F | V | X |
Exposing Mothod | External Drum | ||
Imaging System | 825nm laser | ||
Throughput |
35plates/hour | 45plates/hour | 55plates/hour |
1030mm x 800mm, 2400dpi, Plate sensitivity 120mj/cm² | |||
Plate Sizes | Max.1163mm x 940mm Min.400mm x 300mm |
||
Plate Thickness | 0.15mm, 0.30mm | ||
Resolution | Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi. Variable high resolution option: maximum up to 10000dpi at fast scan direction | ||
Repeatablity | 0.01mm | ||
Interface | Optical Fiber(Fiberway) | ||
Plate Loading | Standard: Simplified Autoloader or multi-cassette Autoloader(four cassettes) | ||
Punching System | Optional: internal punching(maximum four sets of plate holes) | ||
Net Weight | CTP: 1200kg, Simplified Autoloader: 200KG, Multi-cassette Autoloader: 570KG | ||
Machine Size (WxLxH)mm |
1900x2370x1320 | ||
Power Supply | CTP(single phase:220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W)) Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W)) |
||
Operation Environment |
recommended:21-25ºC, allowable temperature: 15-30ºC,relative humidity:40-70% |
New Laser head technology makes the plate making performance stable. At the same time, the speed is improved by leaps and bounds.

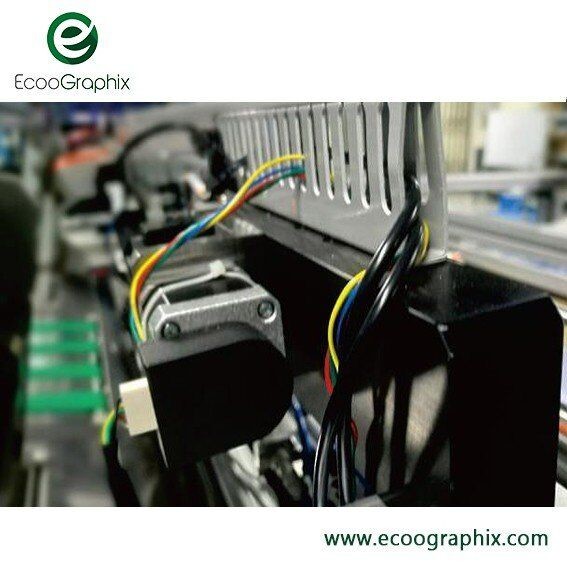

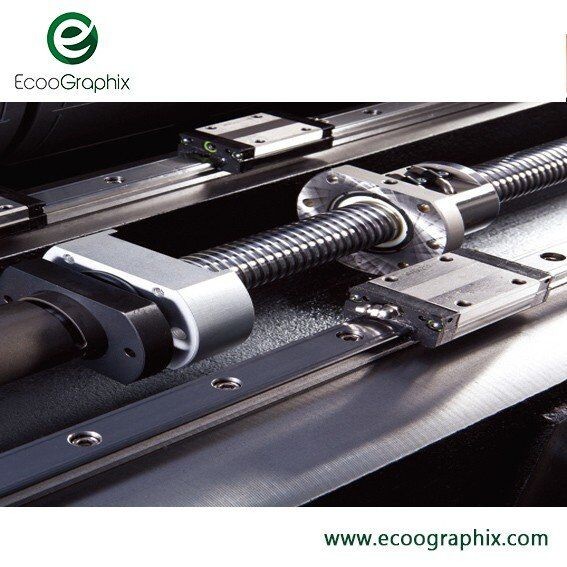

Linear motor
In addition to high acceleration, linear motor drive also has extremely stable operation and high positioning accuracy, providing the guarantee for high precision and accurate printing.
Motor direct drive Drum
The application of direct motor driving drum technology makes our star-up time accelerated and greatly improves productions efficiency.
Full-automatically continuous printing with Inline punch
Equipped with automatic plate loading and unloading, automatic feeding and automatic punching function, it can work
continuously without interruption to maximize the performance

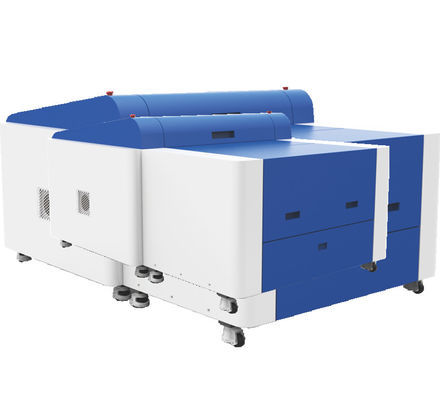

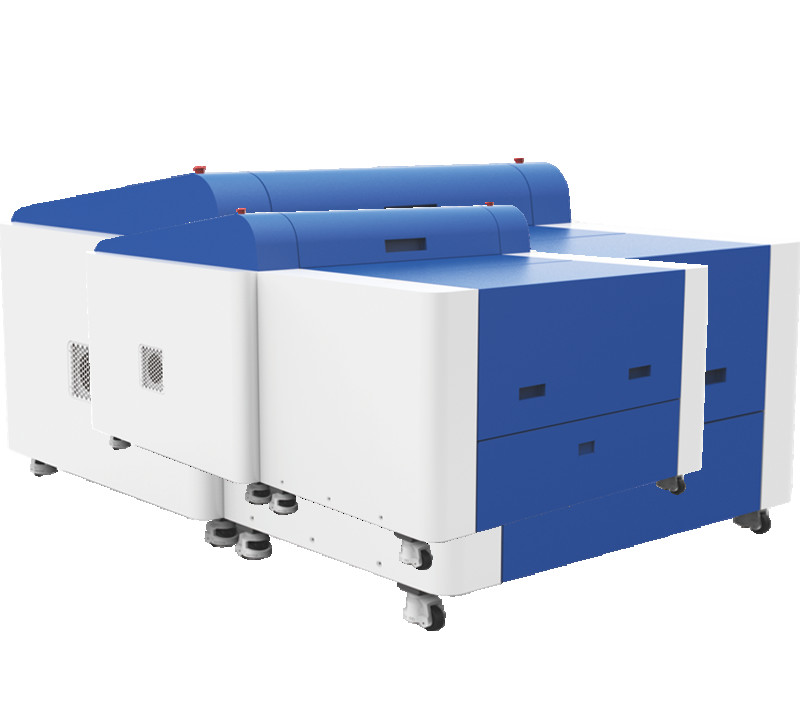

Automatic plate feeding cassette
Large capacity automatic plate feeding system can load 400 plates at the same time and support four specifications of
automatic plate switching, which saves manpower and improves printing speed for you, easily achieving full-automatically
continuous plate printing.
FAQ
1.What are your main products ?
Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor ), and Post Press Packing equipments ( Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates ,inks , printing blankets ,Plate dot densimeter ) .
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.
2.Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3.What is your warranty for the CTPs ?
Two years' Laser Head and main spare parts for the CTPs, One year for the Processor.
4.What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5.Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6.What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
Conclusion
EcooGraphix is proficient in supplying pre-press equipment and consumables.
What we offer:
1. Thermal CTP and CTCP equipment (all formats)
2. Thermal CTP and CTCP Plates (single layer, double layer plates)
3. Processors and autoloaders
4. Other graphics arts supply
