SIEMENS PLC Control Thermal Paper Slitting And Rewinding Machine

1 set
SIEMENS PLC Control Thermal Paper Slitting And Rewinding Machine
Features Gallery Product Description Request A Quote
Max Unwinding Width: 1400mm
Max. Unwinding Diameter: 1200mm
Max Rewinding Diameter: 310 Mm
Max. Slitting Width: 25mm
Max Speed: 210m/min
Machine Dimension: 3100*2100*1900mm
High Light:

medical record thermal paper slitter rewinder


plc control paper roll slitter rewinder

Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO,CE
Model Number: T-1400C
Payment & Shipping Terms
Packaging Details: weooden case
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 1000 set per year
Product Description

Thermal Paper Slitting and rewinding machine Cutting/Recutting machine



EcooGraphix T-1400C is used for making all kinds of thermal paper rolls, including fax paper roll, ECG paper roll, medical record paper roll, POS roll, ATM roll, cash register paper roll, etc.



  1. SIEMENS PLC control system and touch screen, all the parameters are displayed on the monitor. Just setup the roll diameter, material thickness, initial tension, the machine runs automatically.
  2. Shaftless hydraulic loading system, Max. load capacity is 3 tons.
  3. 20Kg/m2 electromagnetic brake for unwinding tension control.
  4. CNC processed & heat-treatment foothold wall panel, no deformation.
  5. Unwinding section equips with direction adjustable balancing roller, ensures roller itself keeping tight touch with whole web.
  6. Dynamic / static balancing transmission rollers.
  7. The upper circular knives are fixed by screws, and the lower circular knives are fixed by aluminum spacer, cutting precision could be guaranteed.
  8. Automatic tucker tucks the tail, convenient for quickly trigger rewinding.
  9. Load cell sensor & automatic tension controller ensures constant tension.
  10. Automatic meter counter, when reaches preset length, machine stops automatically.
  11. Overlapping problem could be avoided with banana roller.
  12. Equipped with emergency switch.
  13. CCD digital camera sensor or photocell for web guiding.

 Technical data


Model Type Ecoo-1400C
Max. Unwinding Width 1400mm
Max. Unwinding Diameter 1200mm
Max. Rewinding Diameter 310mm
Min. Slitting Width 25mm
Max. Machine Speed 210m/min
Main Power 3.7Kw
Total Power 6kw
Unwinding Shaft Hydraulic Shaftless Unwinder to fix 3’’ 6’’ core
Rewinding Shaft 0.5’’, 1’’ or as your request
Weight 4000Kgs
Overall Dimension 3100*2100*1900mm

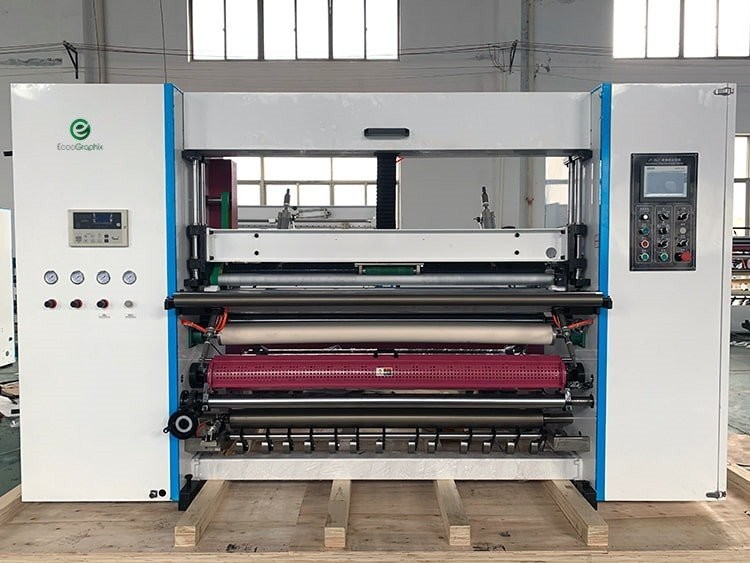

SIEMENS PLC Control Thermal Paper Slitting And Rewinding Machine 0

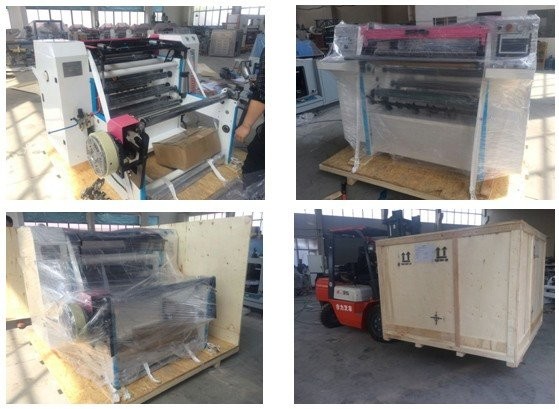

 Package and other purchases for your reference

SIEMENS PLC Control Thermal Paper Slitting And Rewinding Machine 1

SIEMENS PLC Control Thermal Paper Slitting And Rewinding Machine 2


Unwinding Section

Hydraulic Shaftless Unwinder to fix 3'' 6'' core which is easier to loading material

Electromagnetic Brake from Taiwan

Fully automatic tension controller

One set of Photocell to tracking the precision


Slitting Section
Disc cutter
Cutter with adjustable and movable blade base.
Meter counter
Banana Roller which can avoid overlapping problem completely

Rewinding Section
0.5",1" or as your request
Surface Rewinding technology, it adopts vertical method to press the rewinding roll
Electromagnetic Clutch from Taiwan
Surface Rewinding technology
Automatic cutting & gluing unit


Controlling Section

Siemens PLC & HMI from Germany

All the parameters are displayed on the monitor

Low voltage electrical appliances all from Schneider


Trimmed Waste
It adopts air blower to blow waste material off, the air blower power is 0.75kw.
Air blower pipe is more wear-resisting.



Safety guard for the slitting device.
Emergency Switches on the 4 corners of machine.
Wrapping Line


1. How long is the lead time?
The lead time for each CTP machine is normally 35 days. We can accelerate for emergency cases.

2. How long is the warranty period?
Ecoographix guarantees 1 year of warranty for laser head and spare parts.

3. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping, or LC at sight.

4. What are your main products?
Generally, we manage two types of products: prepress equipment and consumables, post-press equipment and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Post-press equipment, including die cutting machine, thermal paper slitting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.

5. What about the Installation and after-sales technician support?
Our engineers go to help the installation and provide the necessary trainning. The buyer should take the round air tickets and service charge and the local accommodation cost and pay wage $100 per day. Any problems or questions, we will be at your disposal 7x24 hours.
