Glue Book Binding Machine Solution for Books and Brochures Production
Background information
Exquisite paperbacks, journals, business reports and other printed materials based on the perfect binding technology has become an important role in our work and life. However, the demographic dividend in the printing industry has disappeared; printing companies are increasingly putting emphasis on the automation and productivity of their machines. In addition, customers’ requirement for product quality is constantly increasing. Therefore, efficiency and quality has become the great concern of every entrepreneur in the printing industry.
In such a backdrop, based on customer needs, We EcooGraphix developed a series of adhesive binding solutions that integrate efficiency and high quality, by relying on a strong R & D team and the integration of top-class technologies. Despite of the demanding requirements of customers, our adhesive binding solution can still ensure that you will achieve impeccable binding quality and efficient and stable production. After realizing the lean post-printing solutions, you will be able to enjoy the competitive advantage brought by the strong productivity!
Brief Description
With a 15 clamp binder and speed up to 5000 cycles per hour, Challenger features manual function and operational convenience at an economical price. The 15-clamp perfect binder Challenger-5000 is an ideal choice for small to medium production runs with speed up to 5000 cycles/hour. It features easy operation and precise change-over by position indicators.
Advantage
High net output
Reliable binding quality
Easy operation
Precise adjustment with position indicators
Composition of the model
a touch screen control panel,
15 book clamps,
2 milling stations
a moveable side gluing station,
a stream cover feeding station,
a nipping station and automatic lubrication system.
| ECOO Booking Binding Machine-Technical data | |
| Model | Book Binding machine |
| No. of Clamps | 15 |
| Max. Mechanical Speed | 5000 cycles/h |
| Book block Length | 140 – 460 mm |
| Book block Width | 120 – 270 mm |
| Book block thickness | 3 – 50mm |
| Cover length | 140 – 470 mm |
| Cover width | 250 – 640 mm |
| Power required | 55 kw |
| Machine weight | 5800 KG |
| Machine Dimensions | 9950 x 1900 x 1500 mm |
|
|
|
|
A control station with touch screen display Interactive operating menu provides simple and quick control of the machine. Production data, machine speed and alarm message are displayed. |
|
| An inclined infeed station Inclined infeed station includes connection with G460B gatherer (available for hand-feeding). The leveling table with integrated vibrator guarantees that all signatures are perfectly aligned before spine preparation. |
|
|

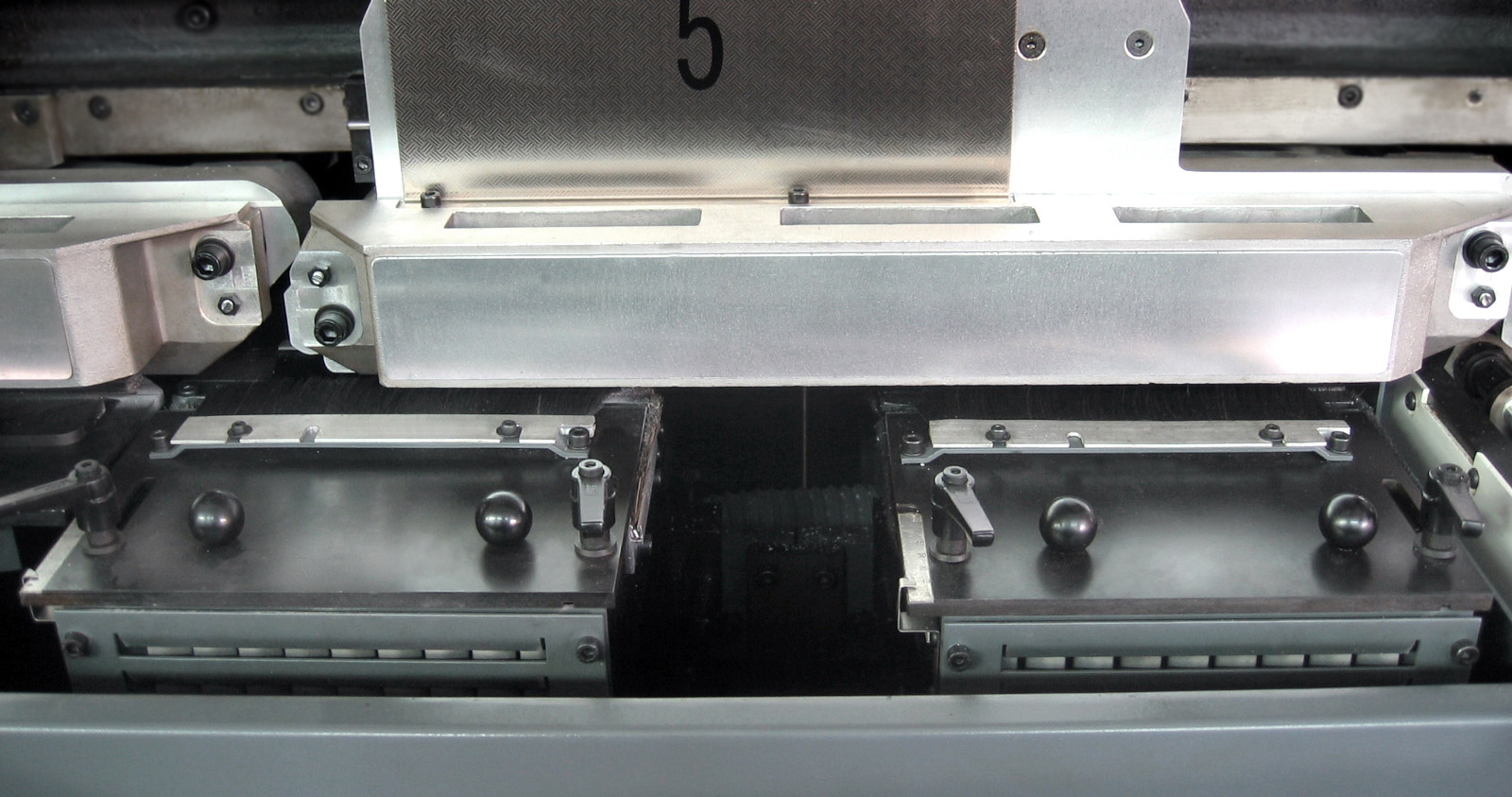

15 sets of book clamps Opening width of all clamps adjusted at a time and displayed by position indicator.
|
|
|
Two spine milling stations Two spine preparation station provides for milling and notching, which makes sure that the spines are optimally prepared for glue application.
|
|
|
A moveable spine gluing station The moveable EVA spine gluing station with pre-melter acts as an interchangeable system for PUR application.
A moveable side gluing station The moveable EVA side gluing station with pre-melter acts as an interchangeable system for PUR application. |
|
|
|
A stream cover feeding station
Cover scoring wheels can be adjusted conveniently according to the book thickness and cover format.
|
|
A nipping station A superior nipping system exerts powerful nipping pressure to create strong, durable binds with sharp spine corners.
|
|
|
A declined delivery unit Smooth lay-down device prevents the spine from deformation and acts as an interface for inline connection.
|
|
|
A paper dust extractor Paper waste can be removed by the powerful paper dust extractor to keep the system clean. |
|
|
An automatic lubrication system
|
