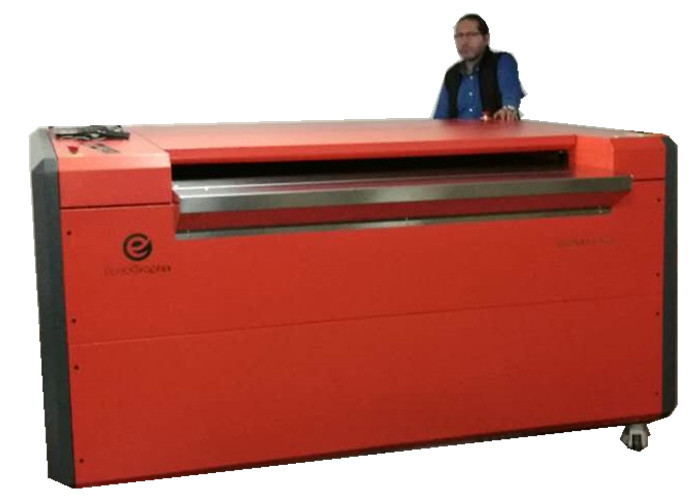

EcooGraphix Large Format VLF Thermal CTP Machine for A0 Printing Plate
EcooSetter VLF T-1600S Thermal CTP
1. Characteristic
Maximum size of plate: 1,470×1180mm
Features: Less manpower, high stability and perfect output quality.
Automatic Plate loading and unloading improves your plate-making efficiency.
2. Other similar models
| EcooGraphix VLF(Very Large Format) CTP Series Specifications | ||||||
| Model | UV-1600S | UV-1600SX | T-1600S | UV-1600M | UV-1600MX | T-1600M |
| Exposing Mothod | External Drum | |||||
| Imaging System | 64-channel | 128-channel | 64-channel | 64-channel | 128-channel | 64-channel |
| Discrete 400-410nm laser diode |
Discrete 400-410nm laser diode |
Discrete 830nm laser diode |
Discrete 400-410nm laser diode |
Discrete 400-410nm laser diode |
Discrete 830nm laser diode |
|
| Output Speed | 16plates/hour | 27plates/hour | 16plates/hour | 10plates/hour | 18plates/hour | 10plates/hour |
| 1470mm x1180mm /2400dpi | 1630mm x 1325mm / 2400dpi | |||||
| Plate Sizes | Max.1470mm x1180mm; Min. 650mm x 550mm |
Max.1680mm x1350mm; Min. 650mm x 550mm |
||||
| Exposing Size | Max. 1454mm x 1164mm | Max. 1680mm x 1336mm | ||||
| Media Type | positive UV-CTP plate | positive thermal CTP plate | positive UV-CTP plate | positive thermal CTP plate | positive UV-CTP plate | positive thermal CTP plate |
| Plate Thickness | 0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative) | |||||
| Resolution | 2400dpi | |||||
| Repeatablity | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) | |||||
| Interface | USB 2.0 or USB3.0(USB2.0 is recommended) | |||||
| Plate Loading | semi automatic(alternative autoloader system) | |||||
| Net Weight | 2600kg | 1800kg | ||||
| Machine Size (WxLxH)mm |
2355x1910x1217 | 2400x1430x1110 | ||||
| Power Supply | single phase:220V-240V, power Consumption(peak value):5.5KW | |||||
|
recommended temprature:21-25ºC;allowed temperature :15-30ºC, humidity:<70%RH
|
||||||
3. Major Highlights of EcooGraphixT-800 thermal CTP
1) Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction
Up to 250lpi screening ,2400 dpi or 1200dpi optional
2) Fully qualified: for any thermal non-process plate and process plates.
3) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany.
4) Long warranty of the machine: 3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.
5) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved.
Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.
5. Producing and Packing
From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .
Installation case
FAQ:
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
Lifetime Warranty for CTP machine and CTP plates.
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be available for technical support and service 7x24 hours.
