ISO CE Touch Screen Interface Foil Stamping Die Cutting Machine

1 set
MOQ
Negotiable
Price
ISO CE Touch Screen Interface Foil Stamping Die Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Max Machine: 5500 S/h
Max Pressure: 120x104 N
Max Sheet: 790mm*560mm
Min Sheet Size: 310mm*210mm
Mix Stamping Size: 760mm*525mm
Inside Chase Size: 780mm*530mm
Highlight:

touch screen automatic die cutter

,

foil stamping auto die cutting machine

Basic Infomation
Place of Origin: China
Brand Name: ECOOGRAPHIX
Certification: ISO, CE
Model Number: TDS1060
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100sets per year
Product Description

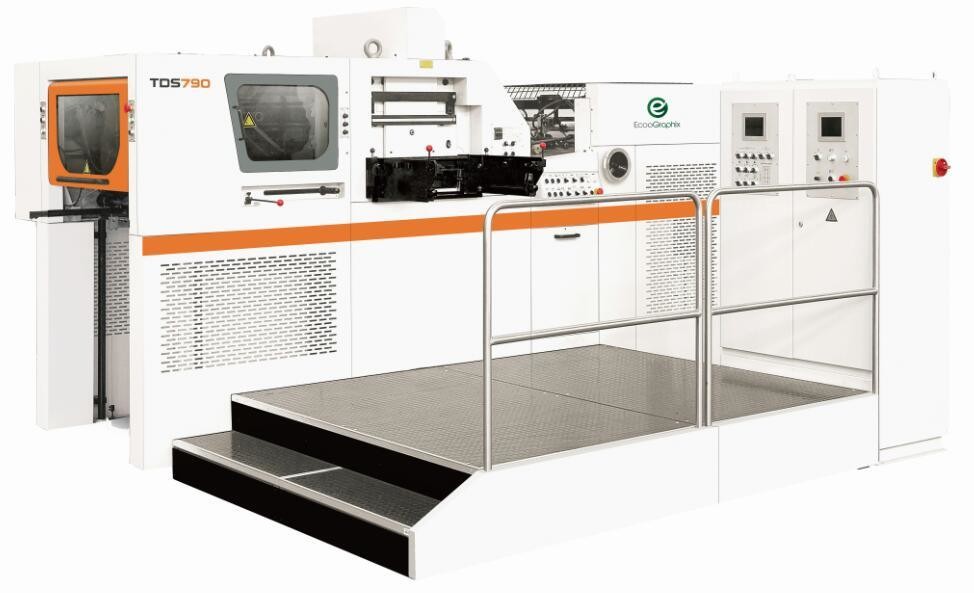

Automatic Die cutting and Foil stamping machine TDS1060

AUTOMATIC DIE-CUTTING MACHINE MODEL TD790S is consisted of feeding unit. main unit and delivery unit. Non-stop feeding and delivery, electrical control system are available with the machine. The inserter, pre-stack, stripping unit, BECKER pump and thermal embossing are all for you options.

1. Gripper Bar

Adopting high-strength aluminum alloy to prolong the endurance and lighten the weight, and the design is especially suitable for thin paper.

2. Gearbox Clutch
Intermittent system protects the machine from overload, and torque transfer system adopts the ball-filling groove design. Asymmetrical design can transfer the force perfectly, and also be reset easily after overload.



ISO CE Touch Screen Interface Foil Stamping Die Cutting Machine 0ISO CE Touch Screen Interface Foil Stamping Die Cutting Machine 1

Main technical specifications

Model ECOO-TDS1060
Maximum sheet(mm) 1060x740
Minimum sheet size(mm) 400x360
Max. Die cutting size(mm) 1040x730
Max. Stamping size(mm) 1020x720
Height of cutting rules(mm) 23.8
Maximum pressure(N) 300x104
Inside chase size(mm) 1120x760
Stock range Cardboard 90-2000g/m² (E, B flute)
Min. gripper margin(mm) 4
Maximum speed(s/h) 7500
Max. hologram stamping plate(mm) 6000
Thickness of stamping plate (mm) 5
Longitudinal feeding shafts 3 (optional 6)
Transversal feeding shafts 2
Feeding pile height(mm) 1500
Delivery pile height(mm) 1100
Electric heating system 12 zones
Min. foil width(mm) 15
Foil reel core(mm) 25(1") 76(3")
Rated power(kw) 46
Air supply 0.8-1.0 MPa, 0.6m3/min
Overail dimension(mm) 6000x4530x2250
Weight of machine(kg) 1800

ISO CE Touch Screen Interface Foil Stamping Die Cutting Machine 2
Advantages

• Transmission of main unit adopt imported A/C frequency converter control, start up and stop of the machine are controlled by means of imported air clutch


• Running of the whole machine is controlled by PLC. Interface touch-screen for monitoring machine running condition, trouble indications and their corresponding shooting ways. This is more operator-friendly


• Independent temperature control to each heating zone makes operation temperature of the machine more equal and stable. Function of timing pre-heating can enhance working efficiency greatly





Q&A
1. How long is the lead time?
The lead time is normally 40 days. We can accelerate for emergency cases.

2. How long is the warranty period?
Ecoographix guarantees 1 year.

3. Is there any certification for your machine?
Yes, all our machines have been certified by SGS and CE.

4. Do you have accompanying consumption products to make an easy purchase for some end users?
Yes, we have qualified postpress machine at most favorable price like punching machine, laminating machine, digital cutting machine.


5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping, or LC at sight.

6. What are your main products?
Generally, we manage two types of products: prepress equipment and consumables, post-press equipment and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.


7. Can you offer some successful installation for reference?
Yes, we achieve great success in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa, etc, with the great assisstance of our dealers. If you have any concern about the quality or service, you can contact them by your own.

8. What about the Installation and after-sales technician support?
Our engineers are all can go to help the installation and provide the necessary training. The buyer should take the round air tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
