220V Single Phase High Automation CTP Plate Processor

1 set
220V Single Phase High Automation CTP Plate Processor
Features Gallery Product Description Request A Quote
Min Width: 280mm In Width
Plate Thickness: 0.15-0.4mm
Processing Speed: Adjustable, 400-1000 Mm/miniute
Temperature: 10-45 Degree
Automatic Level: High Automatic
Electricity: 220v Single Phase 50-60 Hz
Feeding Style: Manually, Or Automatically With A Bridge
Format: Depend On The CTP Machine Format
High Light:

high automation ctp processor


ctp plate processing machine

Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO, CE
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 20-25 days
Payment Terms: L/C, T/T
Supply Ability: 2000 set per year
Product Description

ECOO Processor series machine to developer CTP plate after imaging


ECOO Processor series is a series of processing machine covering 3 formats, P900, P1150, P1500, to match our different sizes of CTP machine. Processor machine is a necessary device for both thermal plate or CTCP plate after imaging. But if you use processless plate, then processor is not necessary. The machine always works with developer chemistry. The imaged plate feed in through the inlet area, through the rolls in the developer liquid to removed the unimaged area and get drief and go out from the outlet. Please see the details in the machine as below:

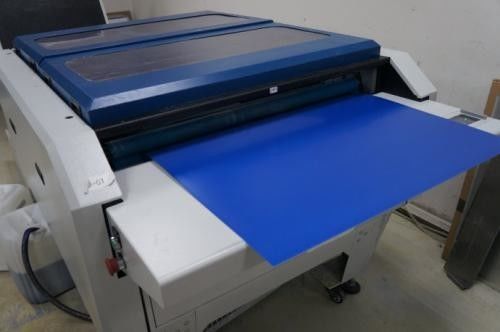

220V Single Phase High Automation CTP Plate Processor 0



ECOO Processor Series Specifications
Machine Type ECOO-P900 ECOO-P1150 ECOO-P1500
Page Size 280-895 mm 280-1150 mm 290-1500 mm
Plate thickness 0.15-0.4mm 0.15-0.4mm 0.15-0.4mm
Processor Power 10-60 seconds 10-60 seconds 10-60 seconds
Temperature 10 to 45 ºC can be adjusted (automatic temperature control, cooling system)
Developing Capacity 46L 58L 76L
Drying Temperature 20-65 ºC can be adjusted
Electricity Source 220 V (210V-240 V)single-phase50-60hz
Work Rate 4.5KW 5KW 7.5KW
Net.Weight 320kg 340kg 800kg
Matched CTP T400, UV400, T800,UV800,T400Q T800A, UV800A,T800Q T1600S, T1600M, UV1600S,UV1600M



1. Robustness, reliable and consistency

2. Optimized plate processing path

3. Unique toller design

4. Environment friendliness and energy saving

5. User-friendly operation

6. Easy maintenance

7. Safety standard



220V Single Phase High Automation CTP Plate Processor 1

Installtion in Customer place for your reference

220V Single Phase High Automation CTP Plate Processor 2220V Single Phase High Automation CTP Plate Processor 3

220V Single Phase High Automation CTP Plate Processor 4


1. Where is your factory ?
Our processor factory is located in Shanghai city.
You are warmly welcomed to visit our factory!

2. What is your warranty for the this machine ?
One year for the Processor.

3. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.

4. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
