Lithographic Printing Thermal CTP CTCP Plate Making Machine

1SET
MOQ
Negotiable
Price
Lithographic Printing Thermal CTP CTCP Plate Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Condition: New
Image Laser Diodes: 64CH,48CH,32CH
Resolution: 2400dpi,1200dpi Optional
Output Speed: 28Plates Per Hour
Max.Plate Size: 1163*940mm
Plate Type: Positive Thermal CTCP Plate
Warranty: 3 Years
Applications: Offset Sheet Printing For Books
High Light:

lithographic preprinting ctp platesetter

,

online ctcp machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE
Model Number: T800FA
Payment & Shipping Terms
Packaging Details: Standard Exporting Packing with Plywood Case
Delivery Time: 20DAYS
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Product Description
Lithographic Printing Thermal CTP CTCP Plate Making Machine

Fast Plate Making Speed ,Save Time and Labor

1. Specification
Model:EcooSetter T-800FA Automatic CTCP/UV-CTP
Laser wavelength: 830nm
Plate: 830nm Positive Thermal CTP /UV-CTP plate or high sensitive PS plate
Exposing Method: External Drum

Imaging System:64-channel

Throughput: 28 plates per hour, 1030mmx800mm 2400dpi

Plate Size: Max. 1163x940mm min. 400x300mm

Plate Thickness:0.15mm to 0.3mm

Resolutions:2,400dpi, 1200dpi optional

Repeatability:±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)

Interface:USB2.0
Weight:1200KG
Size:2127×1405×1058mm(W×D×H)
Power Supply:single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%


2. Major Highlights of EcooGraphix 800 series CTP Machine



1) Superior dot quality reproduction proven by worldwide market:

1%-99% dot reproduction

Up to 250lpi screening ,2400 dpi or 1200dpi optional





4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany



5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)



6) Long warranty of the machine: 3 years warranty (free replacement of all parts)

Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.



7) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.



8) Proven Worldwide market leader: (Some highlights installations)

Over 6000 units installed worldwide over past 10 years

USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.

Turkey: 35 units installed in Turkey by Esen Graphics

Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc


 Similar Models
Model UV-800XA UV-800FA UV-800SA UV-800EA T-800XA T-800FA T-800SA/EA
Exposing Mothod External Drum
Imaging System 128-channel 64-channel 48-channel 32-channel 256-channel 64-channel 48/32-channel
  Discrete 400-410nm laser diode Discrete 830nm laser diode
Throughput 44PPH 28PPH 22PPH 16PPH 40PPH 28PPH 22/16PPH
  1030mm x 800mm, 2400dpi
Plate Sizes Max.1163mm x 940mm
Min.400mm x 300mm(300mmx250mm is available)
Exposing Size Max.1130mm x 884mm
Media Type positive UV-CTP plate ,high-sensitive PS plate positive thermal CTP plate
Plate Thickness 0.14mm to 0.30mm
Resolution 2400dpi , 1200dpi optional
Repeatablity ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface USB 2.0
Plate Loading semi automatic
Net Weight 1200kg
Machine Size
(WxLxH)mm
2127x1405x1058
Power Supply single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation Environment recommended:21-25ºC, Max.18-26ºC, humidity:40-70%





Comparation of Positive Thermal CTP plate and UV-CTP plate

Plate name Positive Thermal CTP Plate Positive UV-CTP /CTCP plate
Spectral sensitivity 830nm(Infrared ray)

360-450nm

(Ultraviolet light)

Exposure energy

110-120mj/cm2



50-60mj/cm2
Resolution 1-99% @240lpi / 10u FM

2%-99%@200lpi / 20u FM



Run length 60,000-150,000 without baking 40,000-100,000without baking
Working environment Under ordinary day light Under yellow light or dark room
Coating color Deep blue Blue green
Machine compitibility

Kodak Trendsetter series,Magnus, Screen PlateRite or any other 830nm machine



UVP series(Cron in China), X-pose!230(Luscher), UV-Setter 850(BasyPrint) and so on.



Plate processing please use EcooGraphix thermal CTP plate developer  , Kodak(Goldstar Premium) or Agfa (Elite)developer

EcooGraphix CTCP plate developer or Fujifilm developer DP-4A , Agfa EP350 and so on



Plate cost

(0.15mm/0.30mm)

2.30$/sqm -3.50$/sqm 2.10$/sqm -3.30$/sqm
Market share 70% 20%
New technology Chemistry-free CTP plate and processless thermal CTP plate High resolution UV-CTP plate

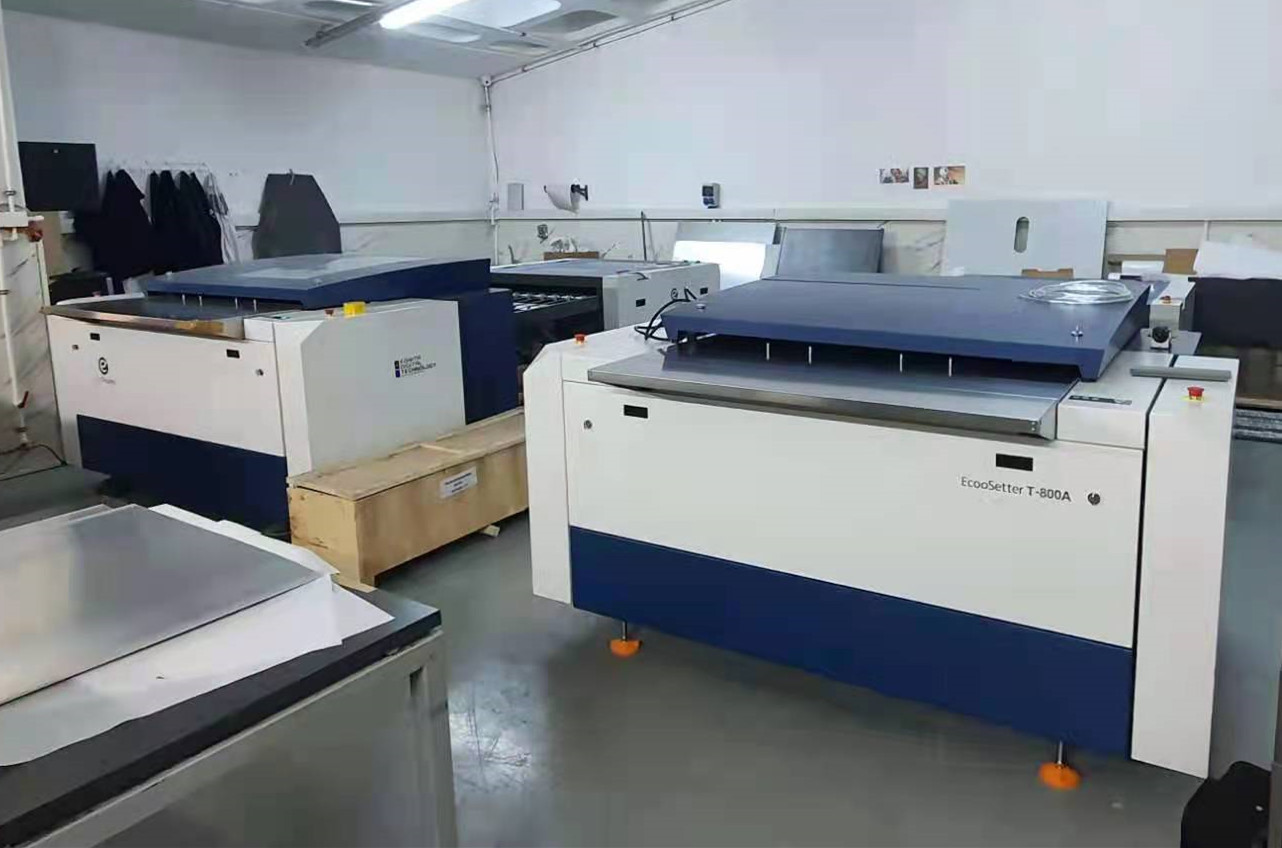

Lithographic Printing Thermal CTP CTCP Plate Making Machine 0

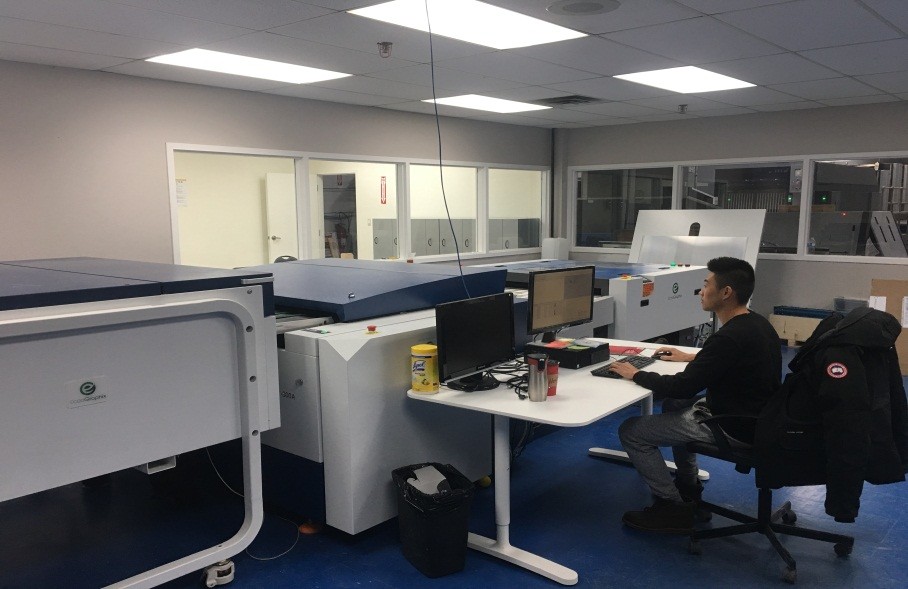

Lithographic Printing Thermal CTP CTCP Plate Making Machine 1

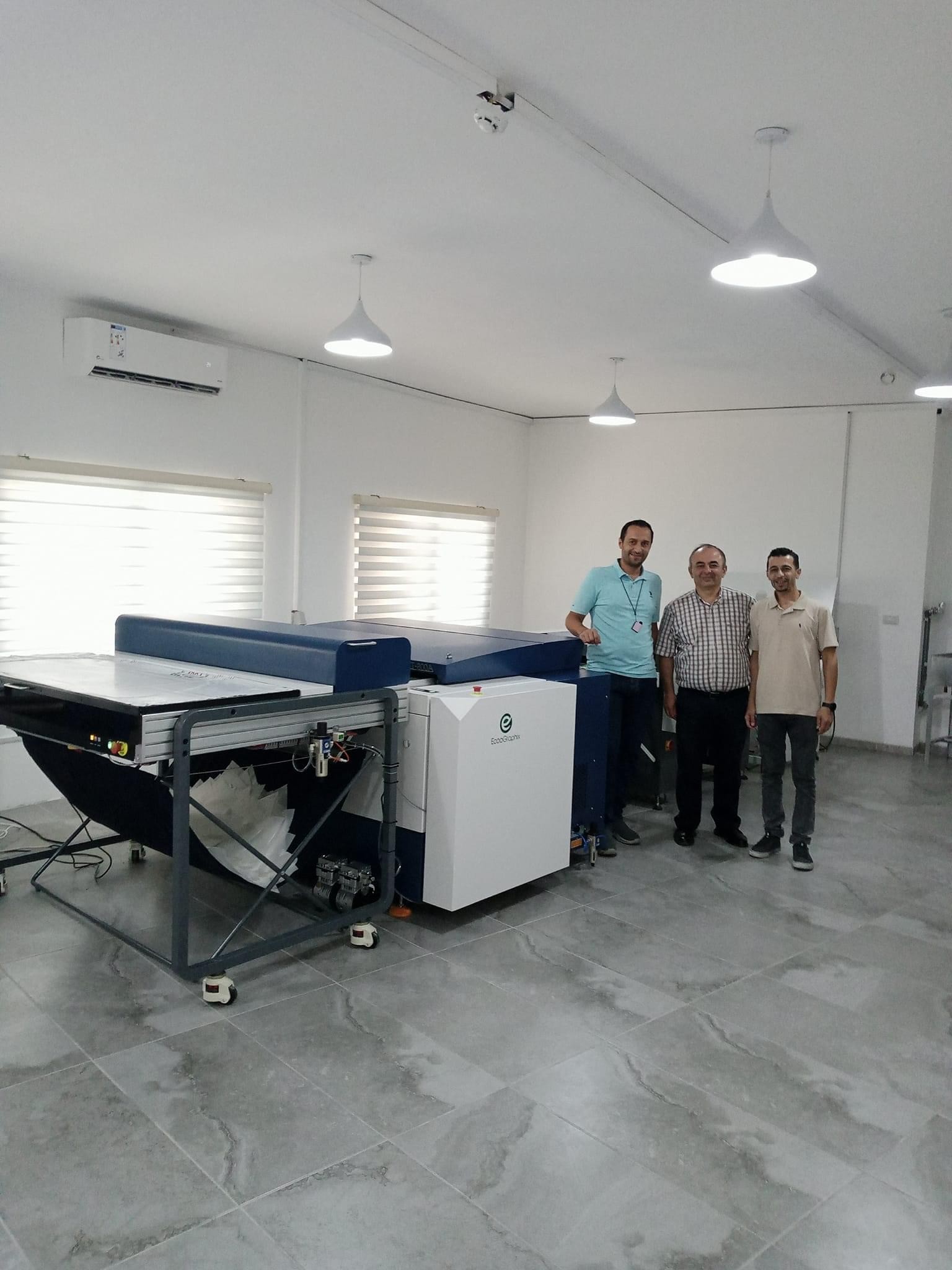

Lithographic Printing Thermal CTP CTCP Plate Making Machine 2



Our Factory

From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .

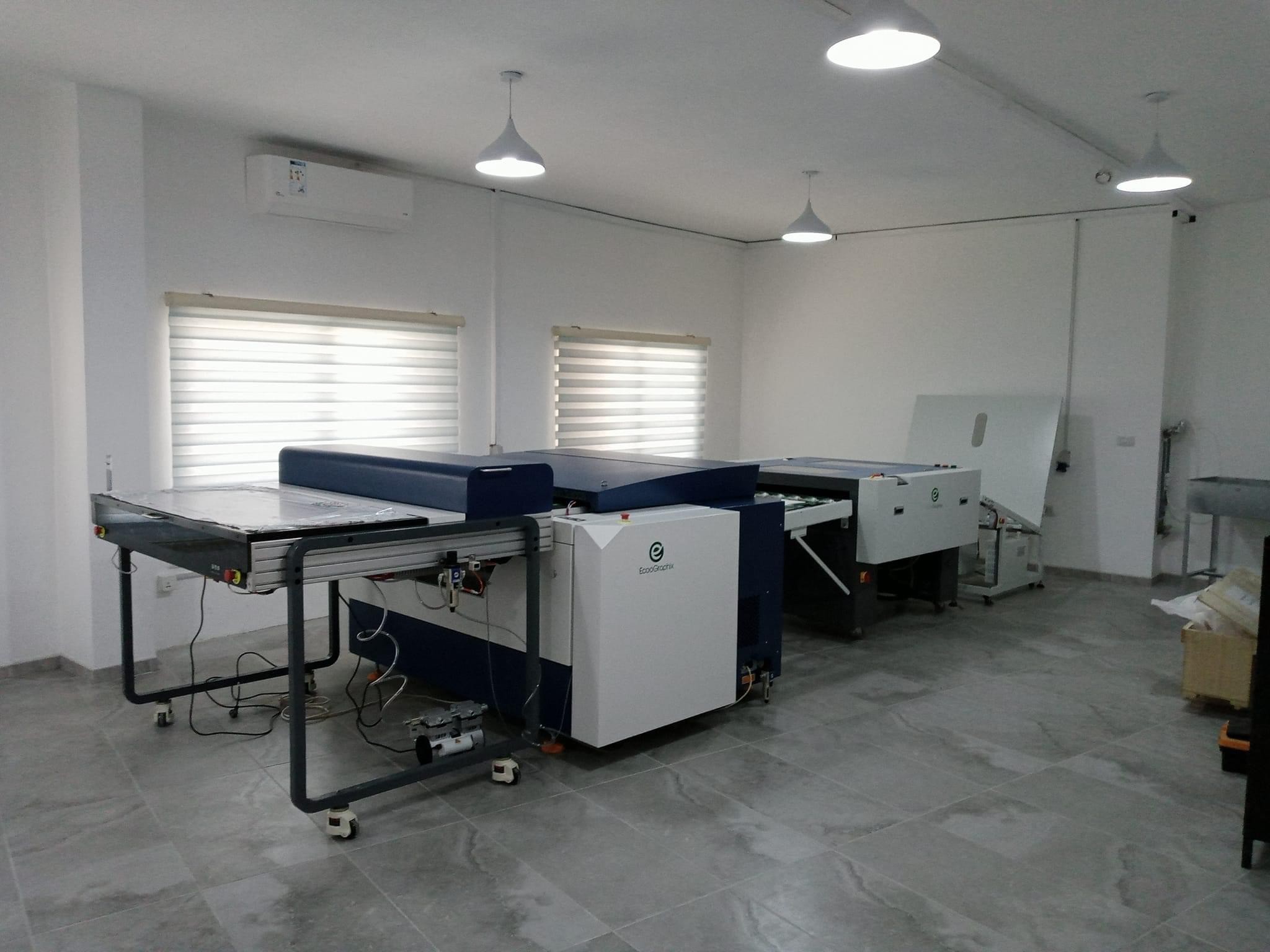

Lithographic Printing Thermal CTP CTCP Plate Making Machine 3

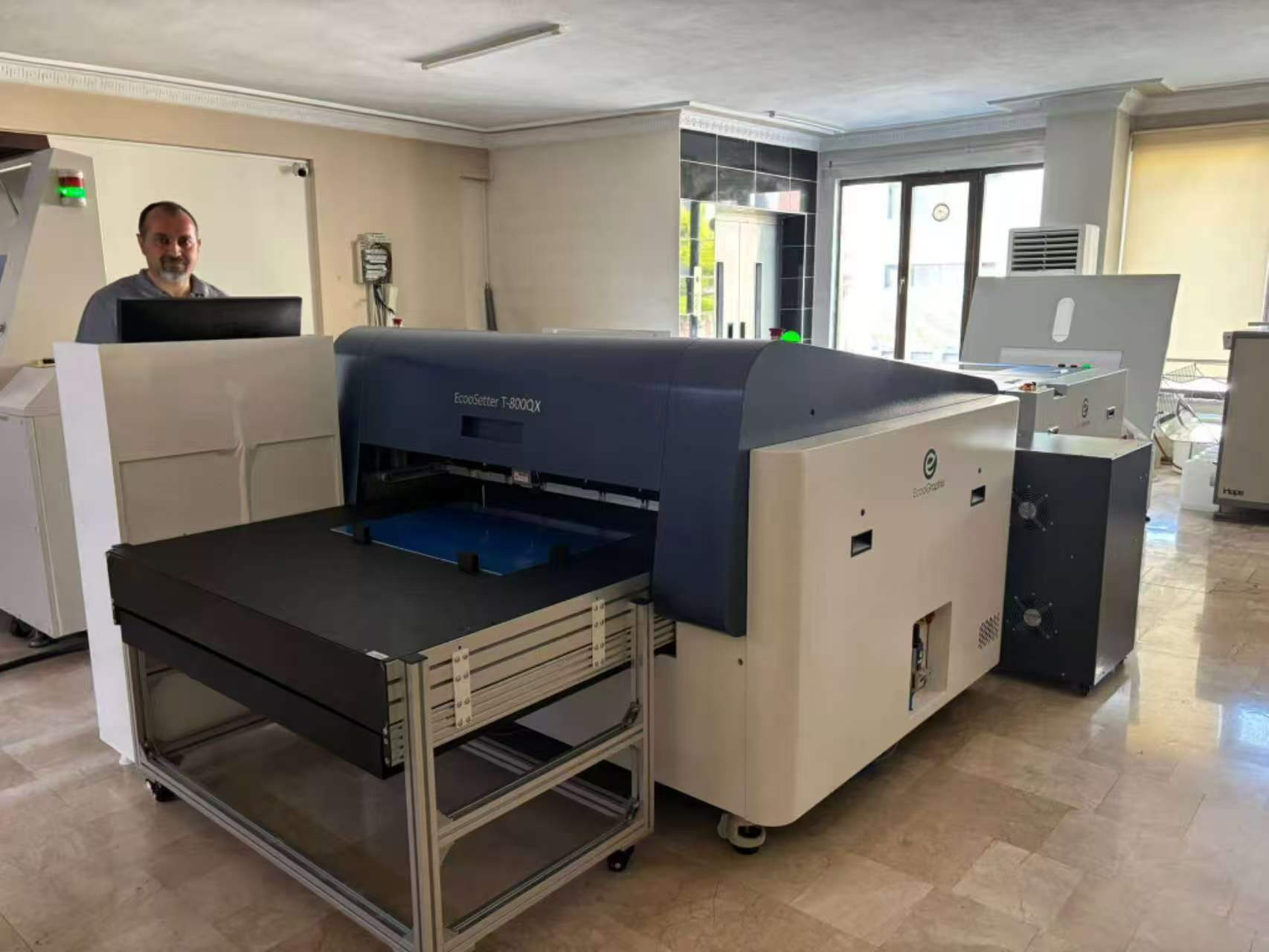

Lithographic Printing Thermal CTP CTCP Plate Making Machine 4
FAQ:
1. What are your main products ?



  EcooGraphix is a leading and professional supplier for the Offset Prepress solution, and  can  also supply the Printing Materials and  Postpress  Packing Equipment with reliable quality and good price.



 Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,Offset Printing inks , Printing blankets , postpress Packing equipments and so on.

2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
 Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.

  If the customer uses Ecoographix CTP plate with the CTP machine, we will provide the Lifetime Warranty and technical support!


4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.


5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.
6. What about the Installation and after-sales technical support?
  Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
