Newspaper Printing Stainless Steel Thermal CTP Machine

Newspaper Printing Stainless Steel Thermal CTP Machine
Features Gallery Product Description Request A Quote
Material: Stainless Steel
Classification: External Drum
Light Source: Semiconductor Laser
Resolution: 2400dpi
Trademark: EcooGraphix
Origin: China
High Light:

newspaper printing ctp plate making machine


high speed computer to plate machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: T800F
Payment & Shipping Terms
Packaging Details: Standard Exporting Plywood Boxes 2127*1405*1058mm (W*D*H)
Delivery Time: 30
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per year
Product Description

High Speed Newspaper Printing Plate Making Equipment CTP



EcooGraphix Online Automatic Loading/Unloading Thermal CTP Series

1. Application

EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.

By the EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.

EcooGraphix T800series thermal CTP are for A2 or B2 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual,very easy to use.


2. Characteristic

Maximum size of plate: 1,130×920mm


Features: Less manpower, high stability and perfect output quality.


UV plate and thermal plate are available for you to lower production cost.

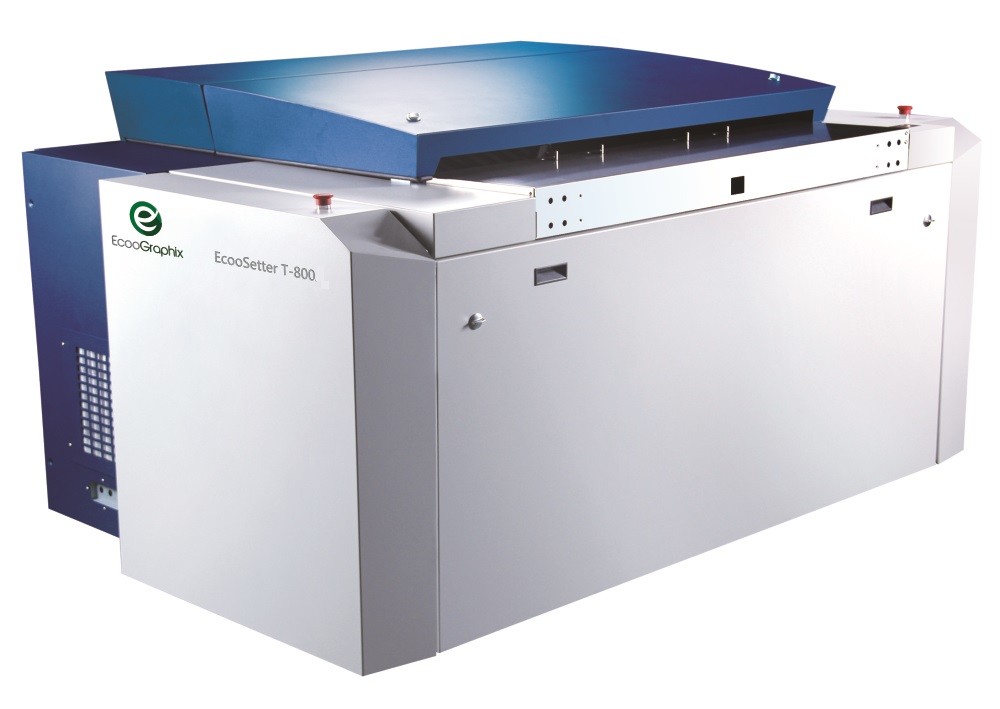

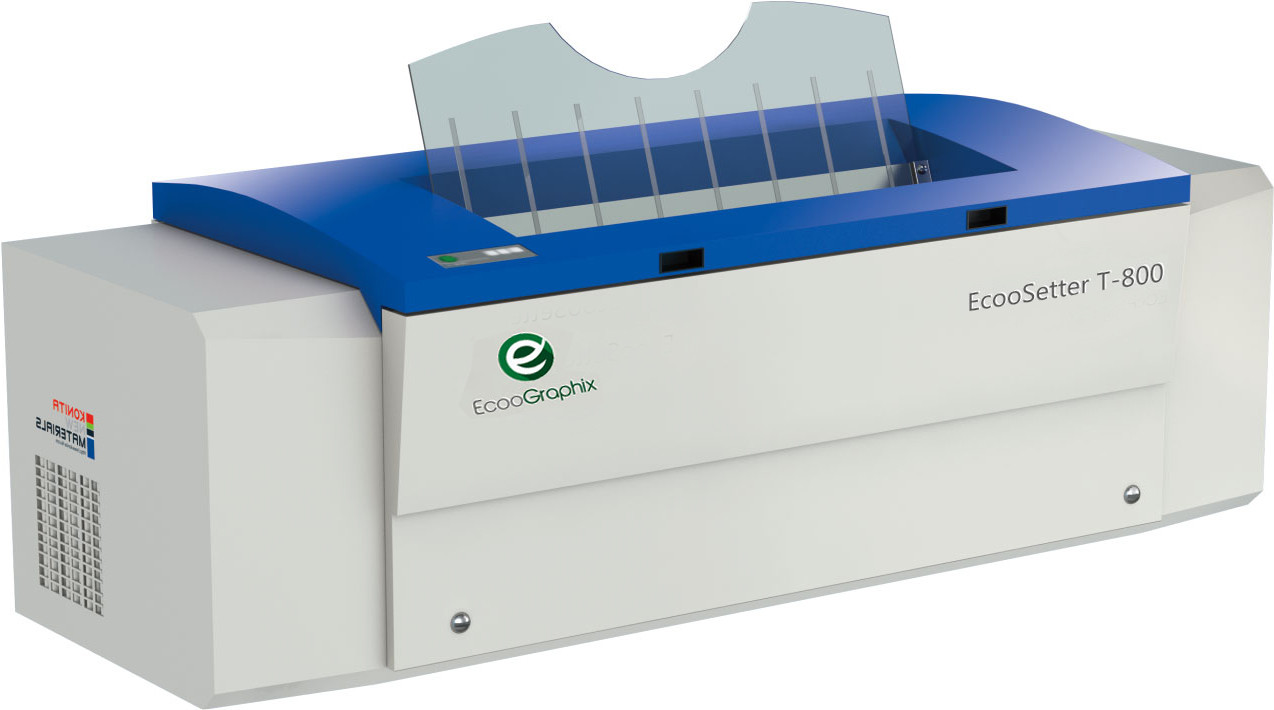

Technical Specification - EcooSetter T-800FA CTP
Model EcooSetter T-800FA CTP
Laser wavelength 830nm
Plate 830nm thermal plate
Exposing Method External Drum
Imaging System 64-channel
Throughput 28 plates per hour, 1030mm x 800mm, 2400dpi
Plate Size Max.1130mm x 920mm, Min.300mm x 300mm
Plate Thickness 0.15mm to 0.3mm
Resolutions 2,400dpi
Repeatability ±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface USB2.0
Weight 1200KG
Size 2127x1405x1058mm (W*D*H)
Power Supply Single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment Recommended: 21-25ºC, max.18-26ºC, humidity:40-70%

Similar T-800/ UV-800 CTP Online Series

Technical Specification - EcooSetter T&UV CTP Online Series
Model T-800FA T-800SA T-800EA UV-800XA UV-800FA UV-800SA UV-800EA
Exposing Mothod External Drum
Imaging System 64-channel 48-channel 32-channel 128-channel 64-channel 48-channel 32-channel
Laser wavelength 830nm 400-410nm
Throughput 28PPH 22PPH 16PPH 45PPH 28PPH 22PPH 16PPH
  1030mm x 800mm, 2400dpi
Plate Sizes Max.1130mm x 920mm, Min.300mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Repeatablity ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface USB 2.0
Net Weight 1200kg
Machine Size 2127x1405x1058mm (W*D*H)
Power Supply Single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation Environment Recommended:21-25ºC, Max.18-26ºC, humidity:40-70%


4. Major Highlights of EcooGraphixT-800 thermal CTP

1) Superior dot quality reproduction proven by worldwide market:

1%-99% dot reproduction

Up to 250lpi screening ,2400 dpi or 1200dpi optional

2) Fully qualified: for any thermal non-process plate and process plates.

3) Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.

4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany

5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)

6) Long warranty of the machine: 3 years warranty (free replacement of all parts)

Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.

7) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.

8) Proven Worldwide market leader: (Some highlights installations)

Over 6000 units installed worldwide over past 10 years

USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.

Turkey: 35 units installed in Turkey by Esen Graphics

Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc.




1.What are your main products ?
Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor ), and Post Press Packing equipment ( Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates ,inks , printing blankets ,Plate dot densimeter ) .
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the Pre-press and Post Press equipment and consumables all in one and no worry about the after-sales service from our company.
2.Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3.What is your warranty for the CTPs ?
Two years' Laser Head and main spare parts for the CTPs, One year for the Processor.
4.What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5.Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6.What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.


If you have any interests for EcooGraphix products or cooperation, please feel free to contact us.
