EcooGraphix Prepress Wide Format Thermal CTP Machine

1
MOQ
Negotiable
Price
EcooGraphix Prepress Wide Format Thermal CTP Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Trademark: EcooGraphix
Resolution: 2400dpi
Light Source: Semiconductor Laser
Classification: External Drum
Material: Stainless Steel
Origin: China
High Light:

uv ctp printing machine

,

large format ctp machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: UV 1600SX
Payment & Shipping Terms
Packaging Details: Standard Exporting Plywood Boxes 2400*1430*1100mm (W*D*H)
Delivery Time: 30
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per year
Product Description

Product Description



EcooGraphix Large Format Thermal CTP Machine


1. Application
EcooGraphix Thermal CTP (Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Print the CTP plate directly through the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get Excellent output image quality, highly reliable stability, less space occupied with more flexibility.
EcooGraphix VLF(Very Large Format) Thermal CTP Machine T1600M can be used for B0 paper size Posters or wall charts, Large Books, catalogs, yellow pages, packaging processing, and plate-making centers, etc., with an output speed of 14 -19 plates per hour.
2. Characteristic
Maximum Plate Size: 1,680×1350mm

Features: Less manpower, high stability, and perfect output quality.

UV plate and thermal plate are available for you to lower production costs.
EcooSetter VLF T 1600M
Laser wavelength: 830nm
Plate: 830nm Thermal CTP PLATE
Exposing Method: External Drum

Imaging System:64-channel

Throughput: 10 plates per hour, 1630mmx1325mm 2400dpi

Plate Size: Max. 1680x1350mm , Min. 650x550mm

Plate Thickness:0.15-0.30mm or 0.25-0.40mm ( Alternative)

Resolutions:2,400dpi

Repeatability:±5μm(continuous exposure for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)

Interface: USB2.0

Weight:1800KG

Size:2400×1430×1100mm(W×D×H)

Power Supply: single-phase: 200AC-240AC;Power Consumption: 5.5KW

Environment:recommended :21-25ºC, Max:18-26ºC, humidity: 40-70%

EcooGraphix VLF(Very Large Format) CTP Series Specifications
Model UV-1600S UV-1600SX T-1600S UV-1600M UV-1600MX T-1600M
Exposing Method External Drum
Imaging System 64-channel 128-channel 64-channel 64-channel 128-channel 64-channel
Discrete 400-410nm
laser diode
Discrete 400-410nm
laser diode
Discrete 830nm
laser diode
Discrete 400-410nm
laser diode
Discrete 400-410nm
laser diode
Discrete 830nm
laser diode
Output Speed 16plates/hour 27plates/hour 16plates/hour 10plates/hour 18plates/hour 10plates/hour
  1470mm x1180mm /2400dpi 1630mm x 1325mm / 2400dpi
Plate Sizes Max.1470mm x1180mm;
Min. 650mm x 550mm
Max.1680mm x1350mm;
Min. 650mm x 550mm
Exposing Size Max. 1454mm x 1164mm Max. 1680mm x 1336mm
Media Type positive UV-CTP plate positive thermal CTP plate positive UV-CTP plate positive thermal CTP plate positive UV-CTP plate positive thermal CTP plate
Plate Thickness 0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative)
Resolution 2400dpi
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface USB 2.0 or USB3.0(USB2.0 is recommended)
Plate Loading semi-automatic(alternative autoloader system)
Net Weight 2600kg 1800kg
Machine Size
(WxLxH)mm
2355x1910x1217 2400x1430x1110
Power Supply single phase:220V-240V, Power Consumption(peak value):5.5KW
Operation Environment recommended temprature:21-25ºC;allowed temperature :15-30ºC, humidity:<70%RH
Ecoographix Large Size A0 Printing Plate Maker Thermal CTP Machine
Ecoographix Large Size A0 Printing Plate Maker Thermal CTP Machine
Ecoographix Large Size A0 Printing Plate Maker Thermal CTP Machine

Ecoographix Large Size A0 Printing Plate Maker Thermal CTP Machine

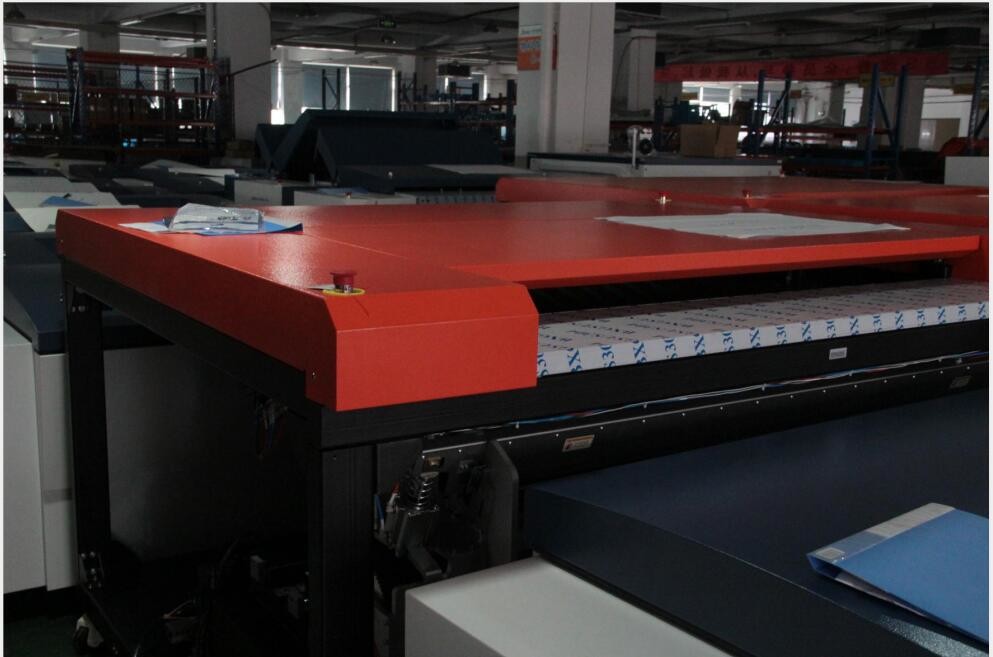

Our Installations:
Ecoographix Large Size A0 Printing Plate Maker Thermal CTP Machine




FAQ:
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, blankets, postpress Packing equipment, and so on.
There are thousands of our CTPs installed worldwide. Our partners in the USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa, and so on are very pleased with our Technician Support service and product performance.
We also supply the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers), and chemistry-free CTP plate.
You can get the prepress equipment and consumables all in one and no need to worry about the after-sales service from our company.


2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!


3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.


4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.


5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.


6. What about the Installation and after-sales technician support?
Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
