Wide Format Printing Thermal CTP Plate Making Machine

Wide Format Printing Thermal CTP Plate Making Machine
Features Gallery Product Description Request A Quote
Material: Stainless Steel
Classification: External Drum
Light Source: Semiconductor Laser
Resolution: 2400dpi
Trademark: EcooGraohix
Origin: China
High Light:

wide format ctp plate machine


thermal computer to plate machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: UV 1600MX
Payment & Shipping Terms

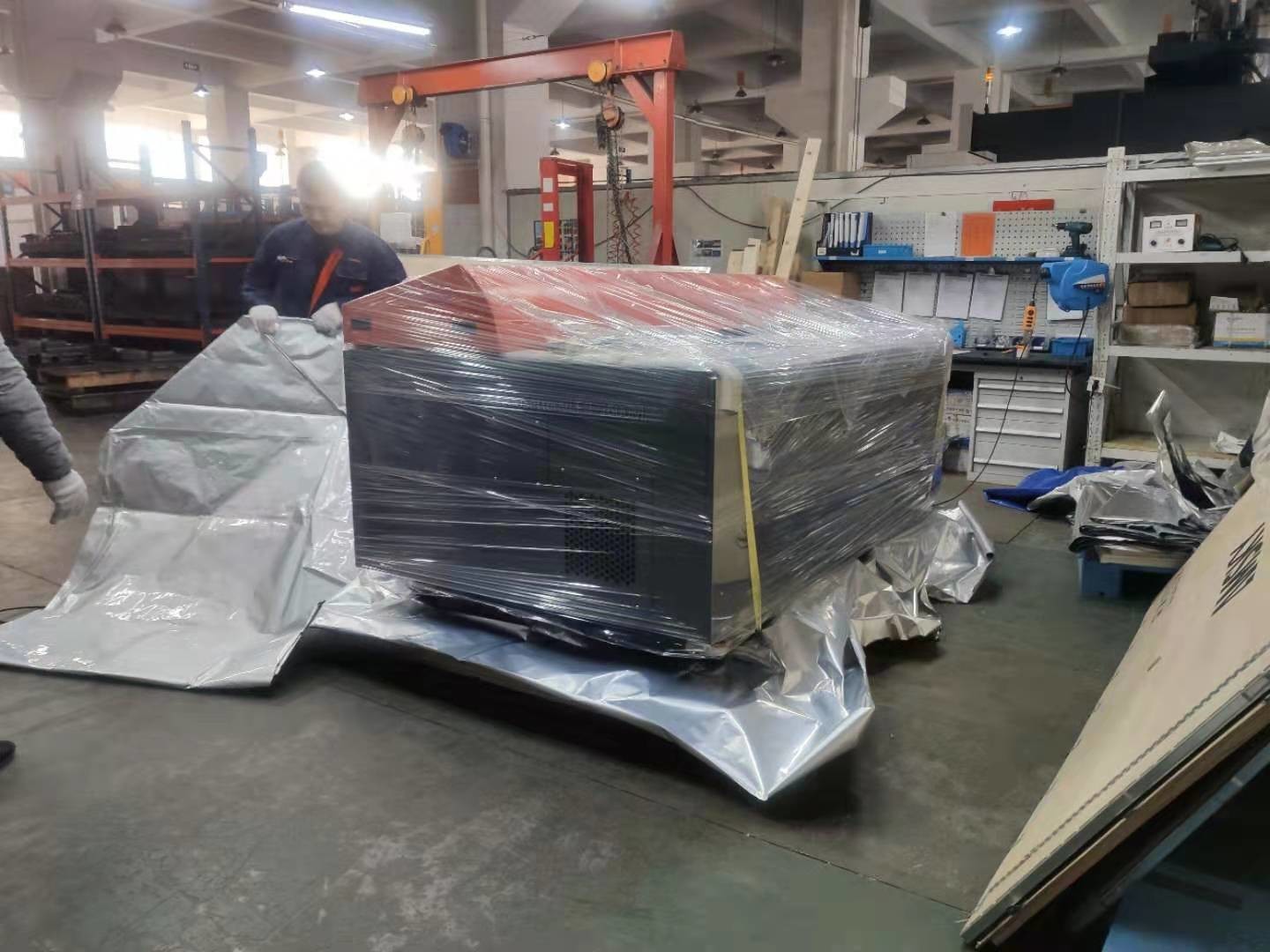

Packaging Details: Standard Exporting Plywood Boxes 2400*1430*1100mm (W*D*H)
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per year
Product Description

Wide Format Printing Plate Making UV CTP Machine



1. Application

EcooGraphix thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.

By the EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.

EcooGraphix T-1600MX CTP are for VLF paper size commercial printing with the output speed 18PPH. The CTP is operated automatically,very easy to use.


2. Characteristic

Maximum size of plate: 1,630×1325mm


Features: Less manpower, high stability and perfect output quality.


Thermal plates are available for you to lower production cost.


ECOO VLF (Very Large Format) UV-1600MX CTP Specifications
Model UV-1600MX
Exposing Method External Drum
Imaging System 128-channel
  Discrete 400-410nm
laser diode
Output Speed 18plates/hour
  1630mm x 1325mm / 2400dpi
Plate Sizes Max.1680mm x1350mm;
Min. 650mm x 550mm
Exposing Size Max. 1680mm x 1336mm
Media Type positive UV-CTP plate
Plate Thickness 0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative)
Resolution 2400dpi
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface USB 2.0 or USB3.0(USB2.0 is recommended)
Plate Loading semi automatic(alternative autoloader system)
Net Weight 1800kg
Machine Size
Power Supply single phase:220V-240V, power Consumption(peak value):5.5KW
Environment recommended temprature:21-25℃;allowed temperature :15-30℃, humidity:<70%RH




Wide Format Printing Thermal CTP Plate Making Machine 0

Wide Format Printing Thermal CTP Plate Making Machine 1


1.What are your main products ?
Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor ), and Post Press Packing equipment ( Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates ,inks , printing blankets ,Plate dot densimeter ) .
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the Pre-press and Post Press equipment and consumables all in one and no worry about the after-sales service from our company.
2.Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3.What is your warranty for the CTPs ?
Two years' Laser Head and main spare parts for the CTPs, One year for the Processor.
4.What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5.Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6.What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.


If you have any interests for EcooGraphix products or cooperation, please feel free to contact us.
