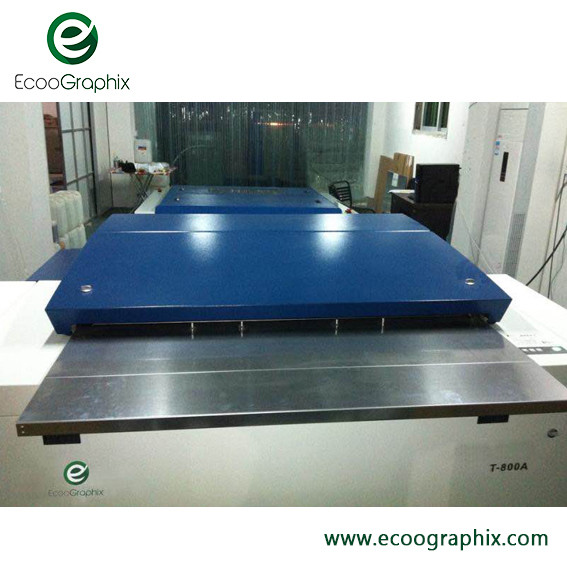

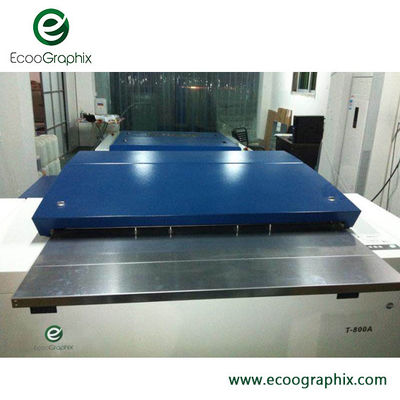

48 channel Offset Prepress UV CTP Plate Making Machine

1
MOQ
Negotiable
Price
48 channel	 Offset Prepress UV CTP Plate Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Classification: External Drum
Light Source: Semiconductor Laser
Resolution: 2400dpi
Trademark: EcooGraphix
Origin: China
Highlight:

uv ctp equipment

,

offset printing ctp machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: Ecoo UV 800A
Payment & Shipping Terms
Packaging Details: Standard Exporting Plywood Boxes
Delivery Time: 30
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per year
Product Description

Product Description



The Most Popular Conventional Online CTP model: EcooSetter UV-800SA, with 48 Laser Channels and 22 PPH, Suitable for middle and large-scale printing companies.



Configurations:

Model EcooSetter UV-800SA CTP Weight 1200 kgs
Image system 48 channels Size 2127mm*1405mm*1058mm
Throughput 22 plates per hour Power Supply Single phase:220AC, +6%, -10%, Power consumption:4kw
Repeatability ±5μm Environment Recommended:21-25ºC, max:18-26ºC, humidity:40-70%
Plate thickness 0.15mm to 0.3mm Laser type semiconductor laser
Resolutions 2400 dpi Laser wavelength 400-410 nm
Plate size(max) 1130mm*920mm Plate size (min) 510mm*400mm
Plate loading Semi-automatic Brand Ecoographix or OEM

Other speed options for this model
Model UV-800 F UV-800 S UV-800 E UV-800 XA UV-800 FA UV-400 EA
Imaging system 64 Channel 48 Channel 32 Channel 128 Channel 64 Channel 32 Channel
Throughput 28 PPH 22 PPH 16 PPH 45 PPH 28 PPH 16 PPH
Plate loading Manually Manually Manually Semi-automatic Semi-automatic Semi-Automatic

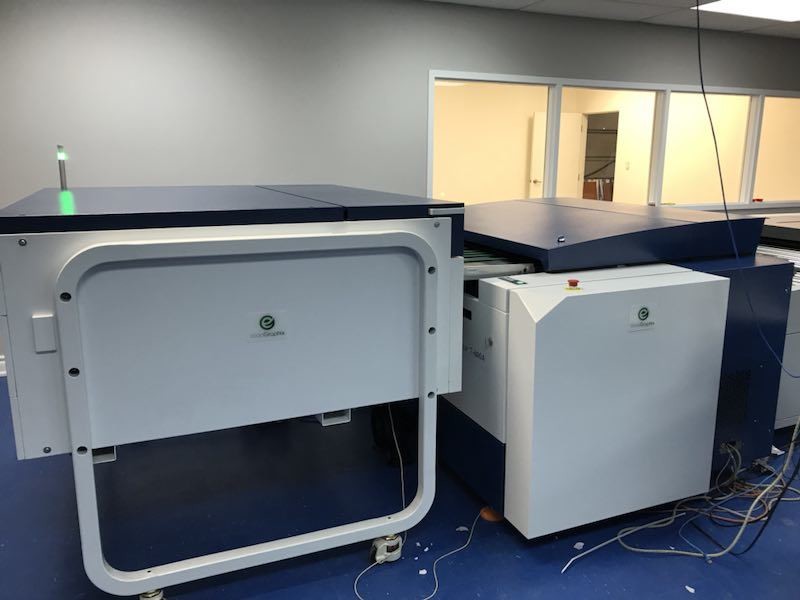

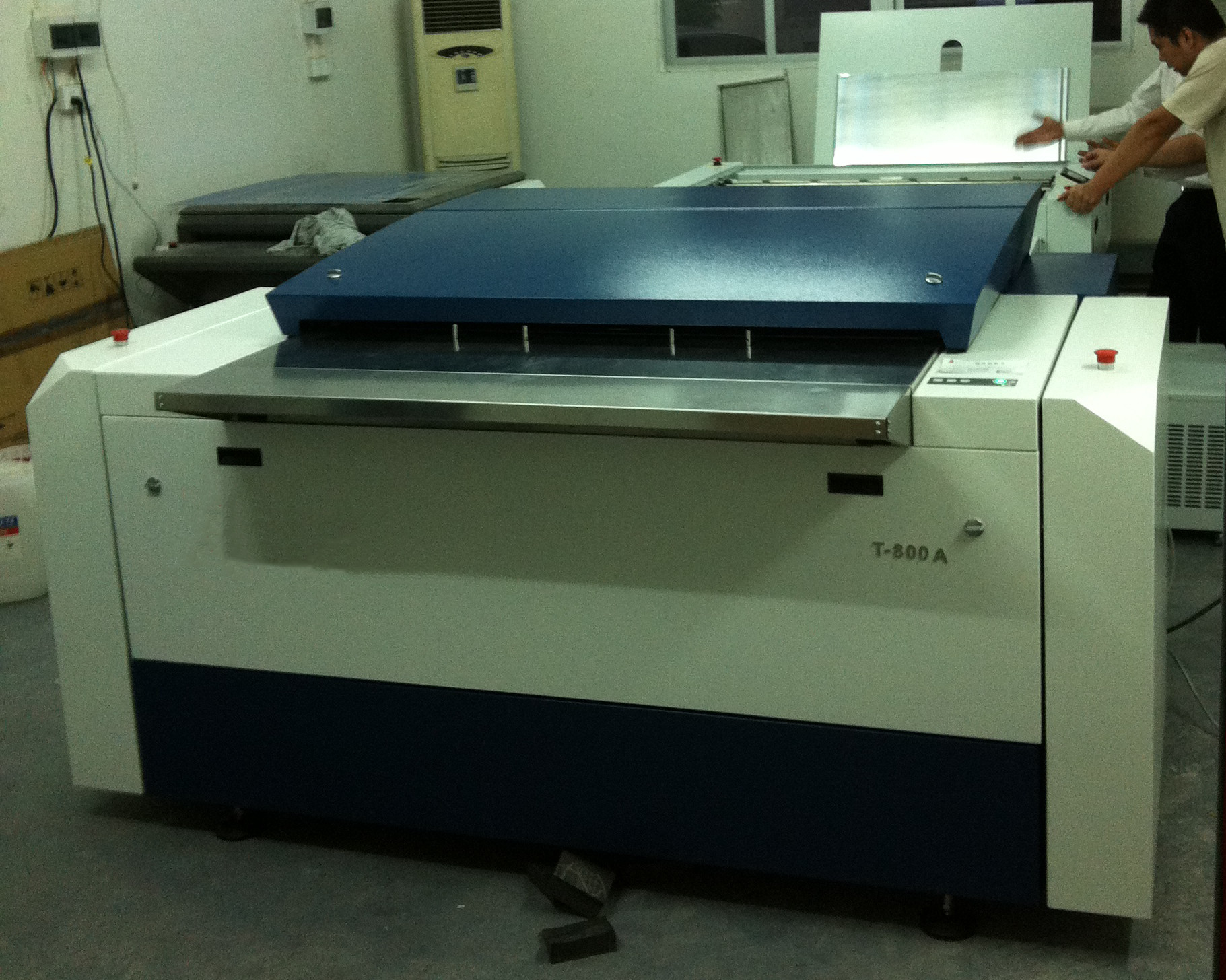

Ecoographix Automatic Offset Prepress CTP Machine
Delivery & Package
Any kind of transportation is workable for us. The nearest departure port is Shanghai Port or Ningbo Port.
The equipment is packed in standard wood cartons for export use with enough protective layers.

Ecoographix Automatic Offset Prepress CTP Machine
Certificate
Ecoographix Automatic Offset Prepress CTP Machine

Our Worldwide Partners:

Ecoographix Automatic Offset Prepress CTP MachineEcoographix Automatic Offset Prepress CTP Machine

Q&A
1. How long is the lead time?
The lead time for each CTP machine is normally 30 days. We can accelerate for emergency cases.

2. How long is the warranty period?
Ecoographix guarantees 3 years of warranty for the laser head and spare parts. If the end customer users our plate, we will offer a lifetime warranty.

3. Is there any certification for your CTP machine?
Yes, All our CTP machines have been certified by SGS and CE.

4. Do you have accompanying plate products to make an easy purchase for some end users?
Yes, we have qualified CTP/CTcP plates at most favorite prices. In addition, blankets, ink, developers, and processors are also in our business range.

5. What is your normal Payment term?
Normally, 30% deposit, and 70% before shipping.

6. What are your main products?
Generally, we manage two types of products: prepress equipment and consumables, and postpress equipment and consumables. Our category is as below:

1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate, and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, and automatic folder gluer.

7. Can you offer some successful installations for reference?
Yes, we have achieved great success in the USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa, etc, with the great assistance of our dealers. If you have any concerns about the quality or service, you can contact them on your own.


8. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.

9. What about the Installation and after-sales technician support?
Our engineers are all Ecan go to help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.

10. Where is your factory?

Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory at any time!
