Semi Automatic Loading UV CTP Plate Making Machine

1
MOQ
Negotiable
Price

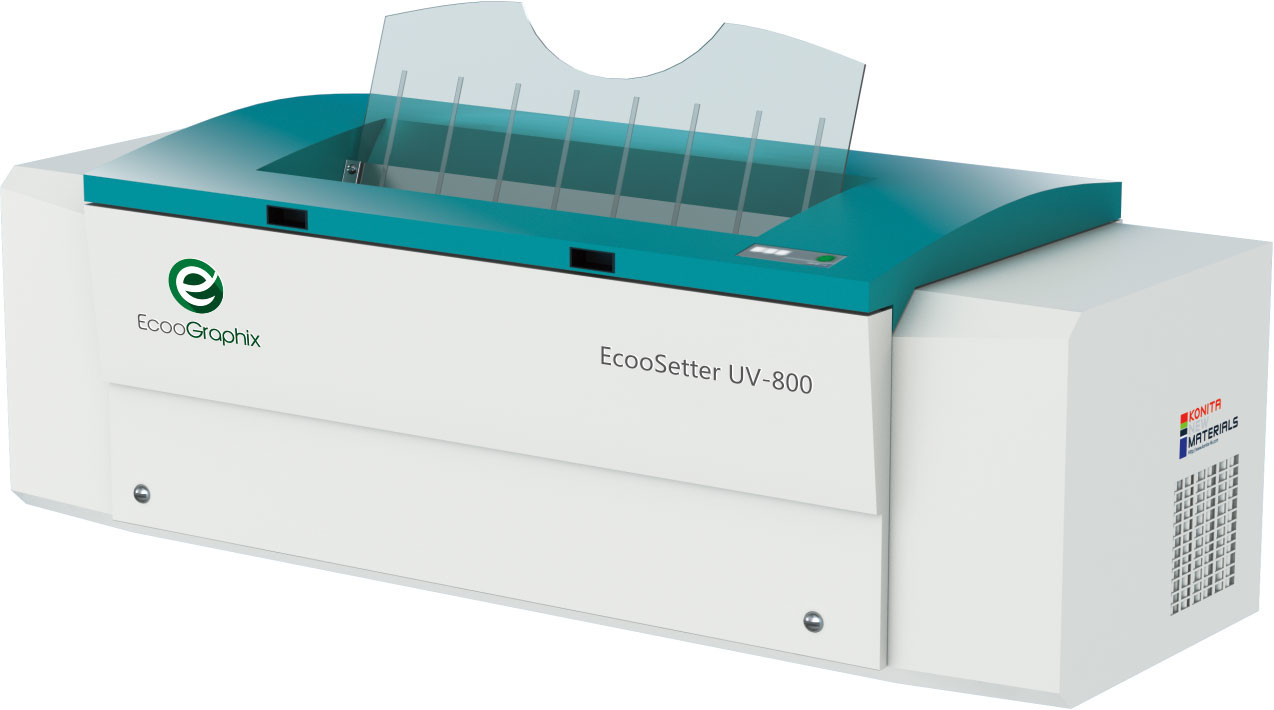

Semi Automatic Loading UV CTP Plate Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Classification: External Drum
Light Source: Semiconductor Laser
Resolution: 2400dpi
Trademark: EcooGraohix
Origin: China
High Light:

uv ctp plate making machine

,

semi automatic loading ctp equipment

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: UV 800
Payment & Shipping Terms
Packaging Details: Standard Exporting Plywood Boxes
Delivery Time: 30
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per year
Product Description

Offset Prepress Plate Making Machine UV CTP



1. Application

EcooGraphix UV CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.

By the EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.

EcooGraphix UV-800 series CTP are for A2 or B2 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual,very easy to use.



2. Characteristic

Maximum size of plate: 1,130×920mm



Features: Less manpower, high stability and perfect output quality.



UV plates are available for you to lower production cost.



ECOO UV-800 Series CTP Specifications
Model UV-800F UV-800S UV-800E
Exposing Method External Drum
Imaging System 64-channel 48-channel 32-channel
  Discrete 405nm laser diode



Throughput

28plates/hour 22plates/hour 16plates/hour
  1030mm x 800mm, 2400dpi
Plate Sizes Max.1130mm x 920mm
Min.400mm x 300mm
Exposing Size Max.1130mm x 884mm
Min.260mm x 284mm
Media Type positive UV-CTP/CTCP plate or high sensitive PS plate
Plate Thickness 0.14mm to 0.30mm
Resolution 2400dpi
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface USB 2.0
Plate Loading semi automatic
Net Weight 900kg
Machine Size
(WxLxH)mm
2530x1050x950
Power Supply single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation Environment recommended:21-25℃, Max.18-26℃, humidity:40-70%
