4 Ups UV CTCP Platesetter plate maker machine

1 set
4 Ups UV CTCP Platesetter plate maker machine
Features Gallery Product Description Request A Quote
Speed: 22 Pph
Laser System: 32 Diodes
Laser Wavelength: 400-410nm
Max Plate Size: 800mm*660mm
Min. Plate Size: 400mm*300mm
Machine Size: 1900*1200*1000mm
Resolution: 2400 Dpi
High Light:

UV CTCP Platesetter


22 Pph CTCP Platesetter


32 Diodes CTP Plate Machine

Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO, CE, ROHS,SGS
Model Number: UV400S
Payment & Shipping Terms
Packaging Details: standard wooden case with water-proof package and protective layer
Delivery Time: 20-30 days
Payment Terms: L/C, T/T
Supply Ability: 800 set per year
Product Description

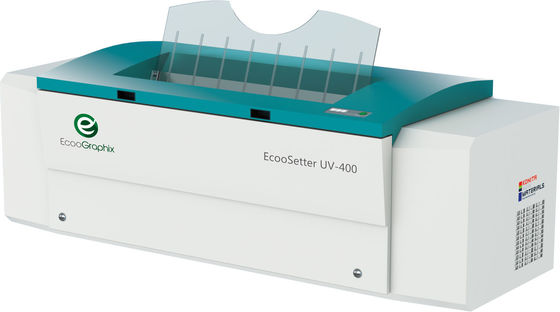

Offset Printing UV CTCP machine plate setter
Ecoosetter UV-400S, with 32 Diodes and 22 pph, enable to satisfy most small size printing business, OUR MOST CLASSIC MODEL
UV400S is our most classic and stable machine. It is conventional design, workable with UV plate, also called CTCP plate. It has 3 speed setting. We have many installation in Nigeria, Turkey, Hungary, Namibia, Lebanon. We offer 3 years warranty for the whole machine and 7*24h online service. So you can trust us.

ModelEcooSetter UV-400S CTPWeight800 kgs
Image system32channelsSize1900mm*1200mm*1000mm
Throughput22 plates per hourPower SupplySingle phase:220AC, +6%, -10%, Power consumption:4kw
Repeatability±5μmEnvironmentRecommended:21-25ºC, max:18-26ºC, humidity:40-70%
Plate thickness0.15mm to 0.3mmLaser typesemiconductor laser
Resolutions2400 dpiLaser wavelength400-410 nm
Plate size(max)800mm*660mmPlate size (min)400mm*300mm
Plate loadingManuallyBrandEcoographix or OEM

Related images and inside details
4 Ups UV CTCP Platesetter plate maker machine 0
4 Ups UV CTCP Platesetter plate maker machine 1

Delivery & Package
Any kinds of transpotation is workable for us. The nearest departure port is Shanghai port or Ningbo Port.
The equipment is packed in standard wood carton for exporting use with enough protective layers.

4 Ups UV CTCP Platesetter plate maker machine 2
The factory
4 Ups UV CTCP Platesetter plate maker machine 3
1. How long is the lead time?
The lead time for each CTP machine is normally 30 days. We can accelerate for emergency cases.
2. How long is the warranty period?
Ecoographix guarantee 3 years of warranty for laser head and spare parts. When in conjuction with our plate, we offer lifetime warranty.
3. Is there any certification for your CTP machine?
Yes, All our CTP machines have been certified by SGS and CE.
4. Do you have accompanying plate products to make an easy purchase for some end users?
Yes, we have qualified CTP/CTcP plates at most favourite price. In addition, blanket, ink, developer, processors are also in our business range.
5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping, or LC at sight.
6. What are your main products ?
Generally, we manage two types of products: prepress equipment and consumables, postpress equipments and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.
7. Can you offer some successful installation for reference?
Yes, we achieve great success in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa, etc, with the great assisstance of our dealers. If you have any concern about the quality or service, you can contact them by your own.
8. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
9. What about the Installation and after-sales technician support?

A:Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours. Among our large amount of CTP instllations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits. These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. if you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, tarining and after sales service. We guarantee your satisfaction.
