Offset Printing Thermal CTP machine plate setter

1 set
Offset Printing Thermal CTP machine plate setter
Features Gallery Product Description Request A Quote
Speed: 10 Pph
Laser System: 64 Diodes
Laser Wavelength: 400-410nm
Max Plate Size: 1630mm*1325mm
Min. Plate Size: 650mm*550mm
Machine Size: 2400*1430*1058mm
Resolution: 2400 Dpi
Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO, CE, ROHS,SGS
Model Number: UV1600M
Payment & Shipping Terms
Packaging Details: standard wooden case with water-proof package and protective layer
Delivery Time: 20-30 days
Payment Terms: L/C, T/T
Supply Ability: 800 set per year
Product Description
ECOO VLF (Very Large Format) UV-1600M CTP Specifications
Model UV-1600M
Exposing Method External Drum
Imaging System 64-channel
Discrete 400-410nm
laser diode
Output Speed 10plates/hour
  1630mm x 1325mm / 2400dpi
Plate Sizes Max.1680mm x1350mm;
Min. 650mm x 550mm
Exposing Size Max. 1680mm x 1336mm
Media Type positive UV-CTCP plate
Plate Thickness 0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative)
Resolution 2400dpi
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface USB 2.0 or USB3.0(USB2.0 is recommended)
Plate Loading Automatic (Online)
Net Weight 1800kg
Machine Size
Power Supply single phase:220V-240V, power Consumption(peak value):5.5KW
Environment recommended temprature:21-25℃;allowed temperature :15-30℃, humidity:<70%RH

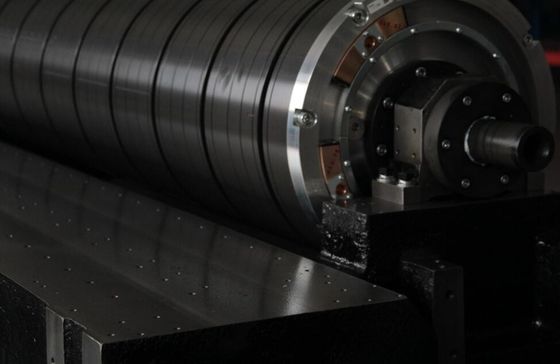

Offset Printing Thermal CTP machine plate setter 0

About us

Konita Digital (EcooGraphix) is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.

We offer top quality and competitive products and service on following categories:
Below is our category:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.

For more details, please check our website;

Delivery & Package

Any kinds of transpotation is workable for us. The nearest departure port is Shanghai port or Ningbo Port.
The equipment is packed in standard wood carton for exporting use with enough protective layers.

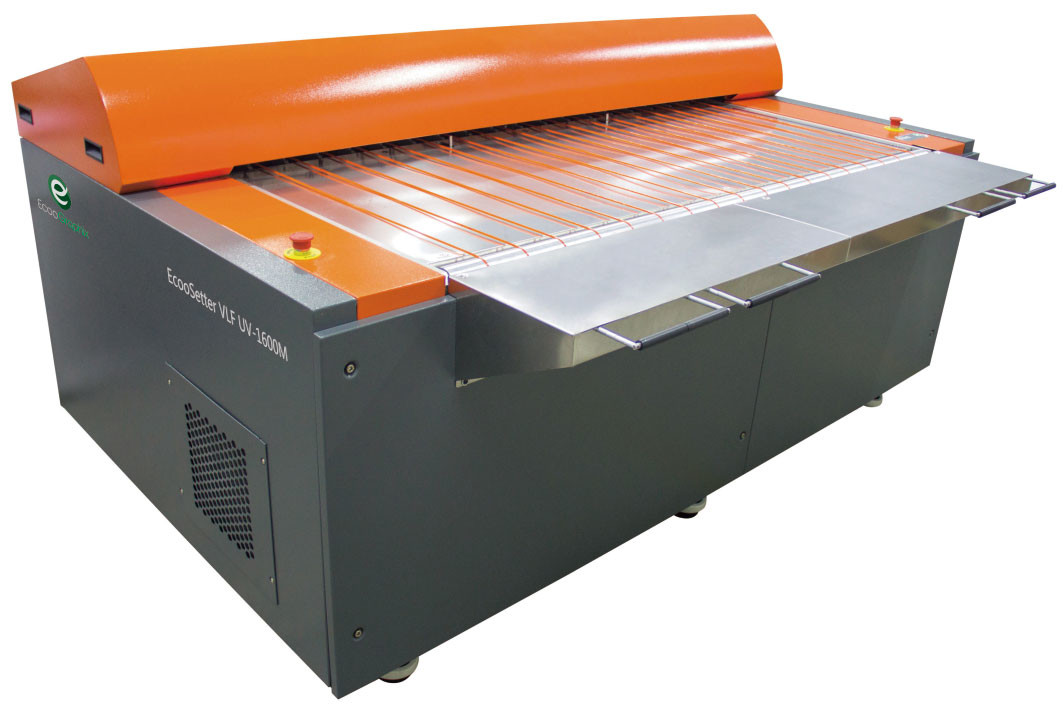

Offset Printing Thermal CTP machine plate setter 1


Q1: 1.What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP, Flexo CTP , Processor , Offset Plates ,Offset Inks , Offset printing blankets , postpress Packing equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory ?
Our CTP machine factory is in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

Q3: Is there any certification for your CTP machine?
Yes, All our CTP machines have been certified by SGS and CE.

Q4: Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.

Q5:What about the Installation and after-sales technician support?
A:Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours. Among our large amount of CTP instllations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits. These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. if you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, tarining and after sales service. We guarantee your satisfaction.
