Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%
2. Application
EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.
EcooGraphix T400series thermal CTP are for A2 or B2 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual,very easy to use.
3. Characteristic
Maximum size of plate: 800×690mm
Features: Less manpower, high stability and perfect output quality.
UV plate and thermal plate are available for you to lower production cost.
4. Machine Technology:
1) Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction
Up to 250lpi screening ,2400 dpi or 1200dpi optional
4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany
6) Long warranty of the machine: 3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.
7) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.
8) Proven Worldwide market leader: (Some highlights installations)
Over 6000 units installed worldwide over past 10 years
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics
Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc.
5. FAQ:
Q1. What are your main products ?
EcooGraphix is a professional Prepress solution ,printing materials ,Inkjet Printers and post packing equipment supplier in China.
Our main products are the Prepress Online/Offline Platesetters including Thermal CTP , CTCP , VLF CTP and Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipment,Inkjet Printers and so on.
Q2. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
Lifetime Warranty for CTP machine and CTP plate.
Q3. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.
6. Other Similar Models:
| EcooGraphix Offline Thermal CTP Specifications | ||||||
| Model | T-800F | T-800S | T-800E | T-400F | T-400S | T-400E |
| Exposing Mothod | External Drum | |||||
| Imaging System | 64-channel | 48-channel | 32-channel | 48-channel | 32-channel | 24-channel |
| Discrete 830nm laser diode | ||||||
| Throughput | 28plates/hour | 22plates/hour | 16plates/hour | 28plates/hour | 22plates/hour | 16plates/hour |
| 1030mm x 800mm, 2400dpi | 800mm x 660mm ,2400dpi | |||||
| Plate Sizes | Max.1163mm x 940mm Min.300mm x 400mm |
Max.800mm x 690mm Min. 260mm x 300mm |
||||
| Exposing Size | Max.1163mm x 936mm Min.260mm x 384mm |
Max.800mm x 646mm Min. 260mm x 284mm |
||||
| Media Type | positive 830nm thermal CTP plate | |||||
| Plate Thickness | 0.14mm to 0.30mm | |||||
| Resolution | 2400dpi,1200dpi optional | |||||
| Repeatablity | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%) | |||||
| Interface | USB 2.0 | |||||
| Plate Loading | semi automatic | |||||
| Net Weight | 900kg | 800kg | ||||
| Machine Size (WxLxH)mm |
2,320×1,080×960mm( L×W×H ) |
1900x1200x1000 | ||||
| Power Supply | single phase:220AC,+ 6%,- 10%, power Consumption:4KW | |||||
| Operation Environment |
recommended:21-25℃, Max.18-26℃, humidity:40-70% | |||||

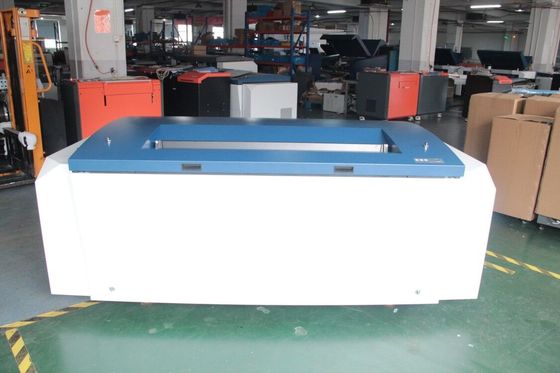

7. Our Factory
From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .
8. Installations worldwide
