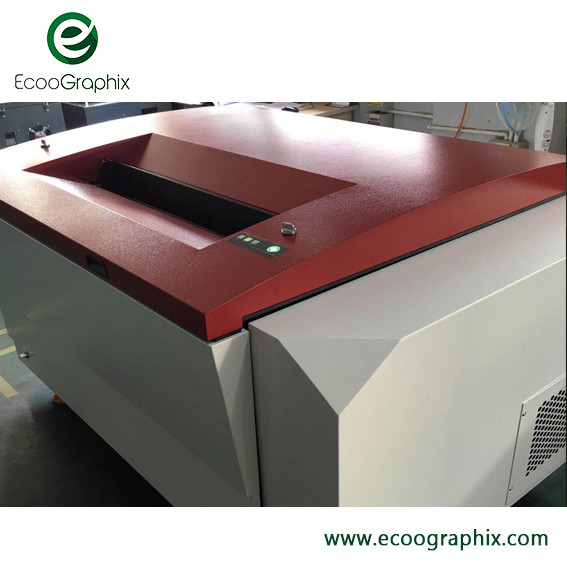

Refurbished Thermal CTP Machine for B2 Size Offset Lithographic Printing

1.Application

EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.

EcooGraphix T400series thermal CTP are for A2 or B2 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual,very easy to use.

By EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.

2.Characteristic

Maximum size of plate: 800×690mm

Features: Small Volume, high stability and perfect output quality.

UV plate and thermal plate are available for you to lower production cost.

Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%

2. Pre-installation Preparation for customers

  1) Customer should prepare tools:

Lift truck and driver: to unload the machine, truck fork should be 1.5Ton or above capacity, 1.2m or longer arm;

   2) CTP working environment:

Lighting: Natural illumination, no direct sunlight

Floor: The floor should bear the pressure of 500kg/m2. Anti-static floor or tile floor.

Ventilation: natural ventilation

Thermometer and hygrometer (pointer type or digital type) should be kept in the center of the room.

    3) Power supply:

CTP Ecoosetter Series: single phase, independently grounded, less than 3Ω; 50/60Hz, 4KVA.

An online uninterrupted power supply(UPS) unit is required, and the battery should be able to sustain at least 5 minute alone.

    4) Other equipment customer should prepare:

Computer: one computer is required to control the CTP. Configuration: I3 or above, 500G or above, Windows 7/8/10, English operation system (US);

Air: separated air-compressor or central air. ≥0.8Mpa, ≥175L/min. If separated air-compressor, the air tank should be ≥30L.

Processor

Plate and chemicals

Plate dot measurement tools (Replate or IC plate)

3. FAQ:
1. What are your main products ?

EcooGraphix is a professional Prepress solution ,printing materials ,Inkjet Printers and post packing equipment supplier in China.

Our main products are the Prepress Online/Offline Platesetters including Thermal CTP , CTCP , VLF CTP and Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipment,Inkjet Printers and so on.

Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.


2. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.

Lifetime Warranty for CTP machine and CTP plate.

3. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.

4. Other Similar Models:

5. Machine Technology:

6. Our Factory

From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .

7. Installations worldwide
