Large Format Flexo CTP Plate Making Machine

1SET
MOQ
Negotiable
Price
Large Format Flexo CTP Plate Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Resolution: 5080dpi , Optional:2540dpi
Plate Type: Digital Relief Flexo Plate(water-wash Or Solvent Wash)
Laser Channels: 256CH
Output Speed: 4.3m2/h, 48*35 Inch, About 20 Minutes
Max.Breadth: 48"×35"/1200mm×1020mm
Plate Thickness: 0.14-6.35(mm)
Highlight:

large format flexo ctp machine

,

flexo ctp equipment

,

4.3m2/h CTP Flexo Plate Making Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE,SGS
Model Number: FL5080/4835
Document: VLF Flexo CTP system FL4835...35.pdf
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: about 20days
Payment Terms: L/C,T/T
Supply Ability: 500SETS
Product Description
FL4835 Large Format Flexo CTP Machine for Corrugated Carton Printing
The EcooSetter FL4835 is a VLF Flexo CTP machine designed for corrugated carton printing. Featuring a 256CH laser head, it delivers high-speed output with Kodak similar 5080dpi screen dots. Capable of producing polymer cliche plates up to 1200x1020mm in size with thickness ranging from 0.14mm to 6.35mm. The all-in-one flexo CTP processor handles exposing, washing, and drying processes.
Specifications
  • Model: EcooSetter Flexo Digital CTP FL4835
  • Laser Channel: 256 channel
  • Output Speed: 48*35 inch (approximately 20 minutes)
  • Max. Breadth: 48"*35"/1200mm*1020mm
  • Plate Thickness: 0.14mm - 6.35mm
  • Laser Power: High power semiconductor laser diode
  • Plate Type: Digital relief flexo plate (water-wash), Digital flexo plate (water/solvent-wash), Steel based digital plates
  • Application: Label and trademark
  • Resolutions: 5080dpi
  • Plate Loading: Manual load and unload
  • Interface: USB2.0
  • Focus adjust: Dynamic auto-focus
  • Device Size: 2,315*1,370*1,052 (WxDxH mm)
  • Net Weight: 1200Kg
  • Power: 220V/50Hz, 60Hz, mainframe 1.5KW + Vacuum 1.1KW
  • Environment: Recommended temperature: 18-30ºC, Humidity: 10-80%
Similar Models Comparison
Feature ECOO-FL4835S ECOO-FL4835F
Exposing Method External Drum
Imaging System 1064nm fiber laser device (H256 heads)
Throughput 3 sqm/hour at 5080 dpi 5 sqm/hour at 5080 dpi
Exposing Time 48*35 inch, about 20 minutes 48*35 inch, about 12 minutes
Exposing Size Max.size 1200*1020mm, min. Size 200*200mm
Media Type Dry ablation film, Digital water washing letterpress/flexo plate, Digital solvent washing flexo plate
Plate Thickness 0.14mm to 6.35mm
Resolution 5080DPI (compatible with 2540DPI), can extend to support 10160DPI
Plate Loading Automatic/Manual plate loading
Net Weight 1500kg
Machine Size (WxLxH)mm 1974*1750*1537mm (L*W*H)
Power Supply Three phase voltage: 380V, Max. Power (peak value) 16 kw
Operation Environment Recommended:15-30℃, Max.21-25℃, humidity:40-70%

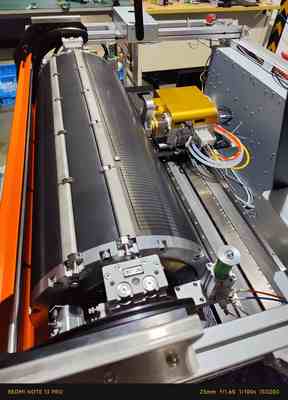

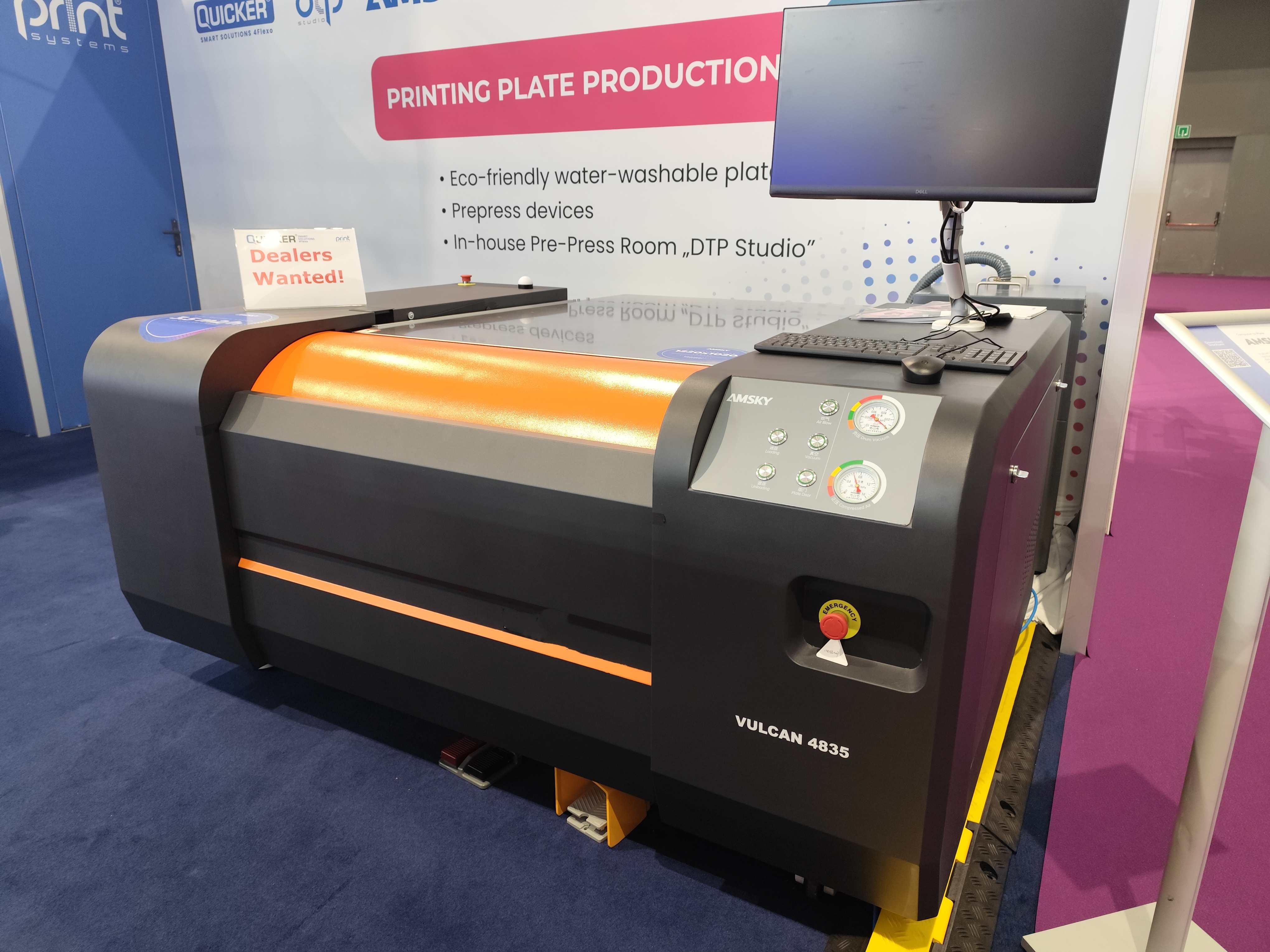

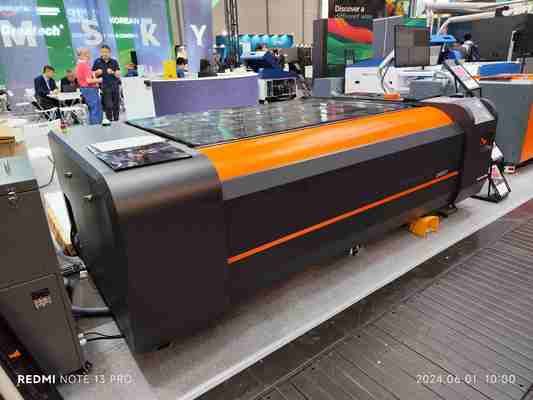

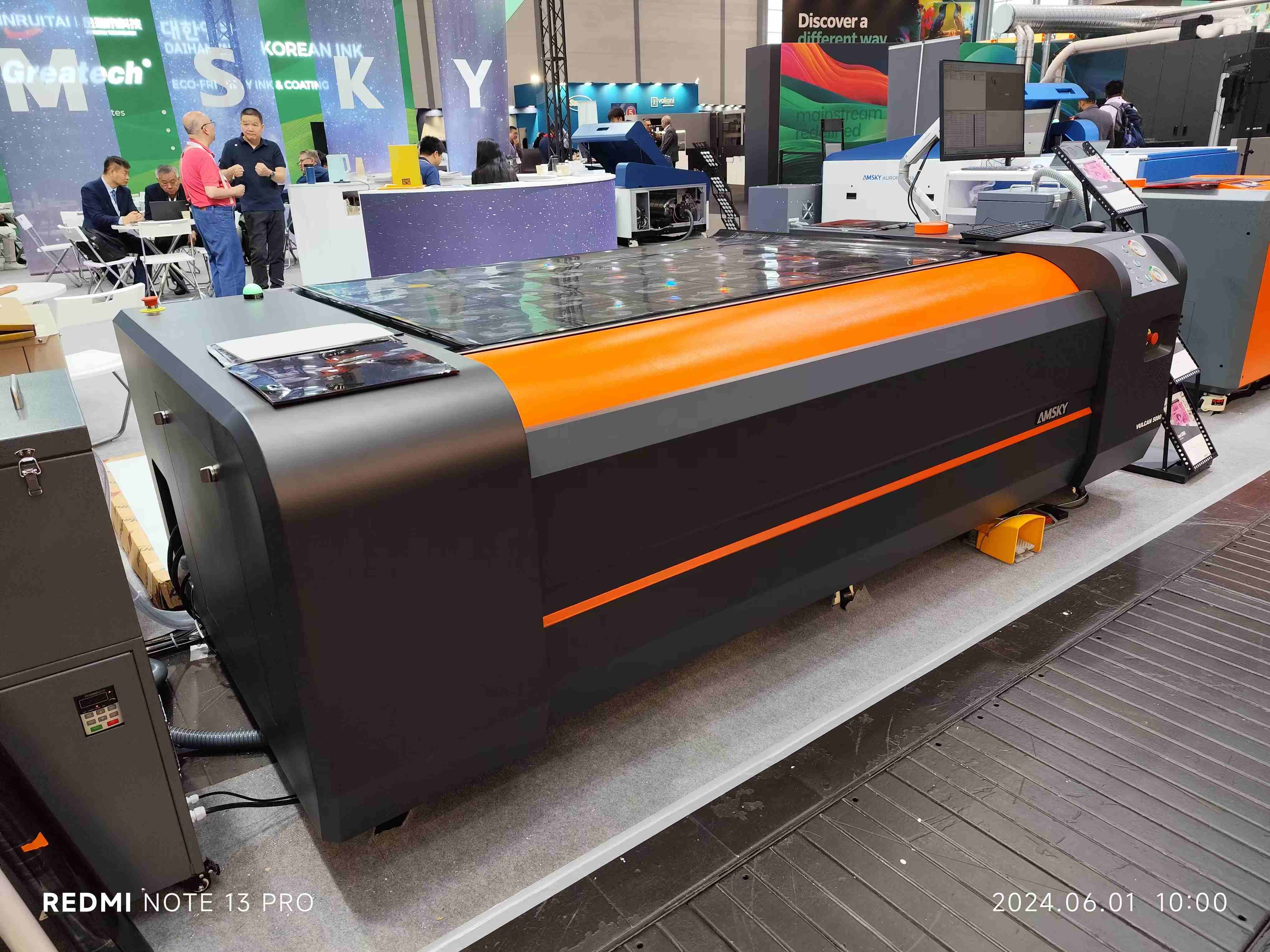

Product Images
Large Format Flexo CTP Plate Making Machine 0
Large Format Flexo CTP Plate Making Machine 1
Large Format Flexo CTP Plate Making Machine 2
Large Format Flexo CTP Plate Making Machine 3
Large Format Flexo CTP Plate Making Machine 4

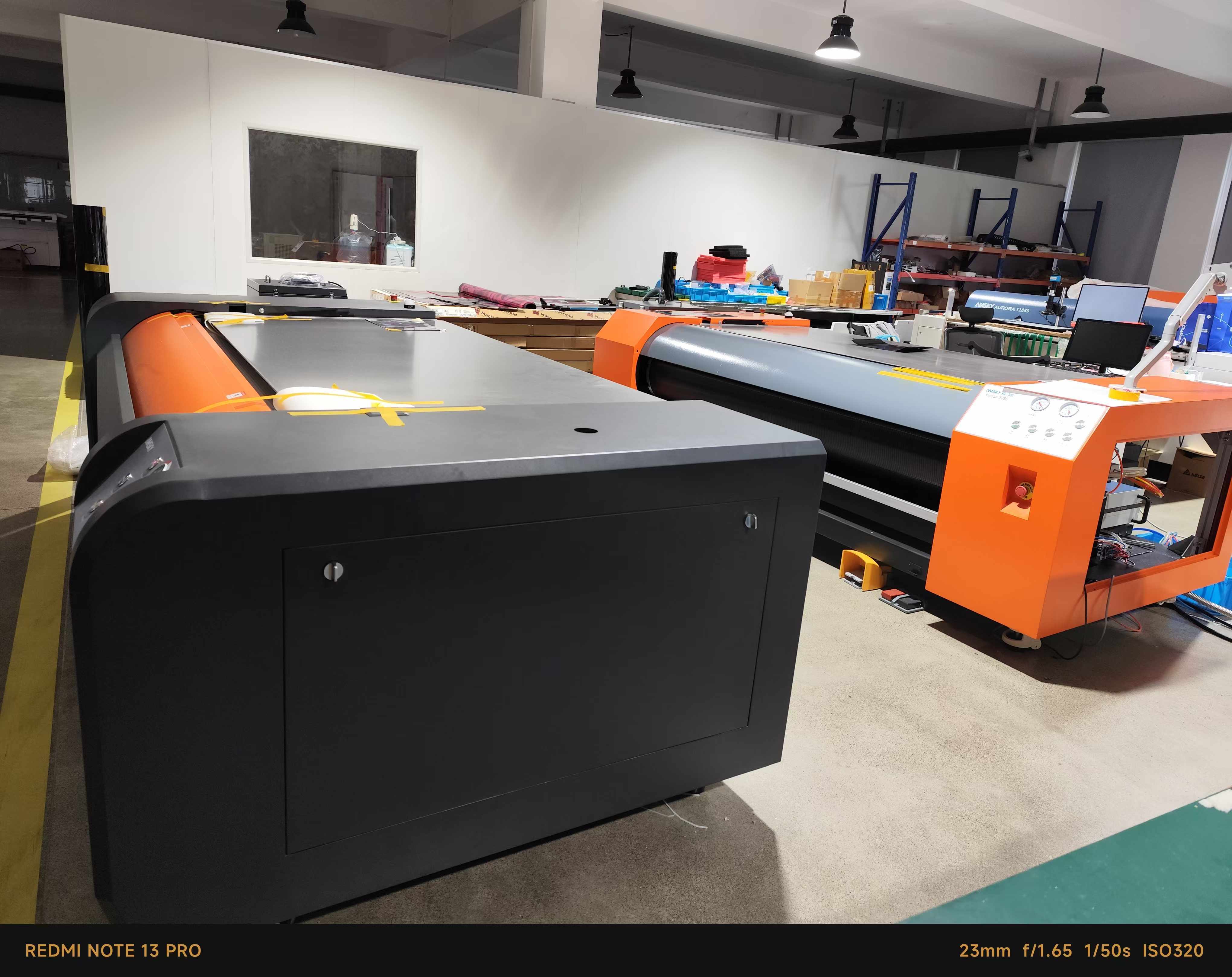

Our Factory
Large Format Flexo CTP Plate Making Machine 5
Large Format Flexo CTP Plate Making Machine 6
Frequently Asked Questions
What are your main products?
Our main products include Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, blankets, and postpress packing equipment. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and other countries are very satisfied with our technician support service and product performance. You can get all prepress equipment and consumables from us with comprehensive after-sales service.
Where is your factory located?
Our CTP machine factory is located in Hangzhou city, approximately 1.5 hours by train from Shanghai. We warmly welcome visitors to our facility.
What is your warranty policy for the CTPs?
We offer three years warranty for Laser Head and main spare parts for the CTPs, and one year for the Processor. Lifetime warranty applies when the CTP machine is used with our plates.
Can you supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.
What about installation and after-sales support?
Our engineers can assist with installation and provide necessary training. The buyer is responsible for round-trip airfare, service charges, and local accommodation costs. We offer 24/7 technical support for any questions or issues.
