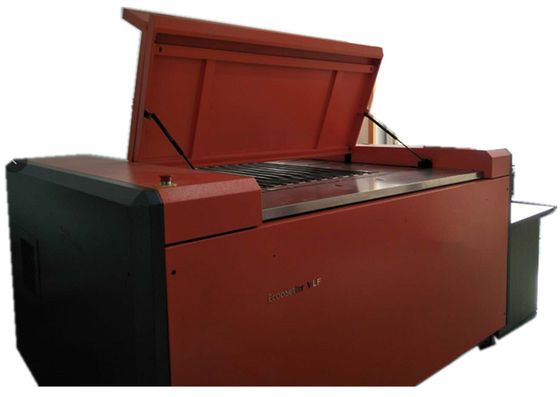

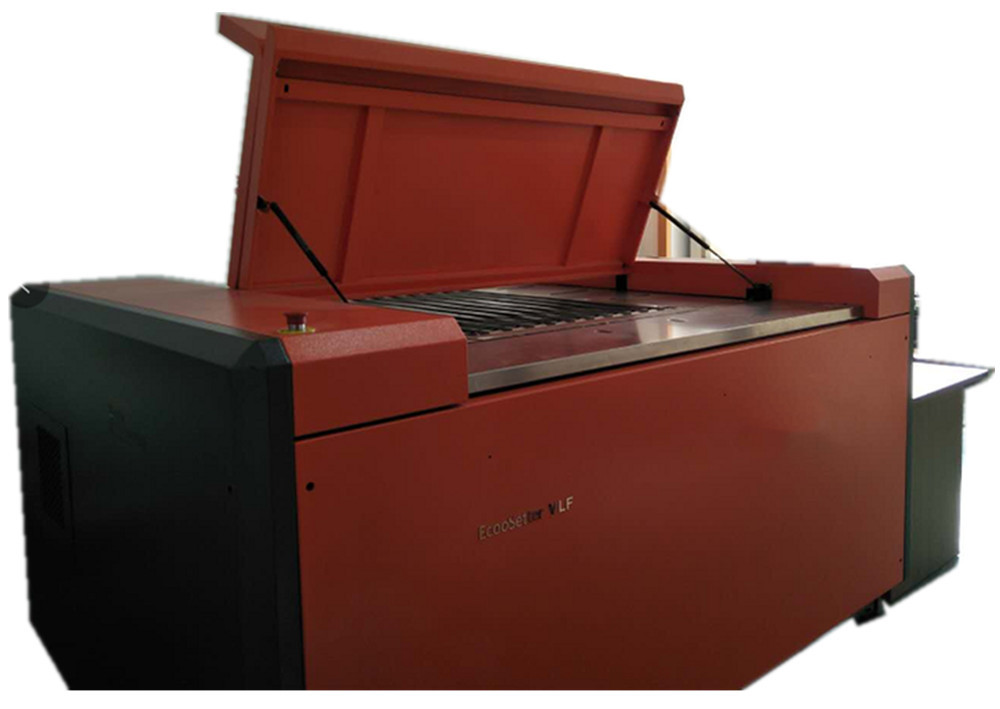

UV1600S VLF CTCP Platesetter Plate Making Machine for Offset Pre Printing
16 plates per hour UV-CTP / CTCP Computer To Conventional Plate Prepress solution
Environment:recommended :21-25ºC, Max:18-26ºC, humidity: 40-70%
2. Preparation for customers before installation
Lift truck and driver: to unload the machine, truck fork should be 1.5Ton or above capacity, 1.2m or longer arm;
Temperature: 15℃-30℃ (an air-conditioner is recommended)
Humidity: RH10%-70%, Non-condensing
Atmosphere: No smoke, No corrosive gases, Ash<0.1mg/M3.
Lighting: Natural illumination, no direct sunlight
Floor: The floor should bear the pressure of 500kg/m2. Anti-static floor or tile floor.
Ventilation: natural ventilation
Thermometer and hygrometer (pointer type or digital type) should be kept in the center of the room.
CTP Ecoosetter Series: single phase, independently grounded, less than 3Ω; 50/60Hz, 4KVA.
An online uninterrupted power supply(UPS) unit is required, and the battery should be able to sustain at least 5 minute alone.
Computer: one computer is required to control the CTP. Configuration: I3 or above, 500G or above, Windows 7/8/10, English operation system (US);
Air: separated air-compressor or central air. ≥0.8Mpa, ≥175L/min. If separated air-compressor, the air tank should be ≥30L.
2. Other similar models
| EcooGraphix VLF(Very Large Format) CTP Series Specifications | ||||||
| Model | UV-1600S | UV-1600SX | T-1600S | UV-1600M | UV-1600MX | T-1600M |
| Exposing Mothod | External Drum | |||||
| Imaging System | 64-channel | 128-channel | 64-channel | 64-channel | 128-channel | 64-channel |
| Discrete 400-410nm laser diode |
Discrete 400-410nm laser diode |
Discrete 830nm laser diode |
Discrete 400-410nm laser diode |
Discrete 400-410nm laser diode |
Discrete 830nm laser diode |
|
| Output Speed | 16plates/hour | 27plates/hour | 16plates/hour | 10plates/hour | 18plates/hour | 10plates/hour |
| 1470mm x1180mm /2400dpi | 1630mm x 1325mm / 2400dpi | |||||
| Plate Sizes | Max.1470mm x1180mm; Min. 650mm x 550mm |
Max.1680mm x1350mm; Min. 650mm x 550mm |
||||
| Exposing Size | Max. 1454mm x 1164mm | Max. 1680mm x 1336mm | ||||
| Media Type | positive UV-CTP plate | positive thermal CTP plate | positive UV-CTP plate | positive thermal CTP plate | positive UV-CTP plate | positive thermal CTP plate |
| Plate Thickness | 0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative) | |||||
| Resolution | 2400dpi | |||||
| Repeatablity | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) | |||||
| Interface | USB 2.0 or USB3.0(USB2.0 is recommended) | |||||
| Plate Loading | semi automatic(alternative autoloader system) | |||||
| Net Weight | 2600kg | 1800kg | ||||
| Machine Size (WxLxH)mm |
2355x1910x1217 | 2400x1430x1110 | ||||
| Power Supply | single phase:220V-240V, power Consumption(peak value):5.5KW | |||||
|
recommended temprature:21-25ºC;allowed temperature :15-30ºC, humidity:<70%RH
|
||||||
Our Factory
Our Partners
FAQ:
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
Lifetime Warranty for CTP machine and CTP plates.
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be available for technical support and service 7x24 hours.
