256 Channel Super Fast Thermal CTP Equipment

1 set
256 Channel Super Fast Thermal CTP Equipment
Features Gallery Product Description Request A Quote
Laser Wavelength: 830 Nm
Imaging System: 256 Diode
Throughput: 35/45/55 Pph Depending On Customer Setting
Max. Plate Size: 1130mm*920mm
Min. Plate Size: 510mm*400mm
Plate Application: Thermal Plate Thickness Between 0.15-0.40mm
Warranty: 3 Years Including All Parts
Installation: Free Installation
High Light:

256 channel ctp machine


high speed computer to plate machine

Basic Infomation
Place of Origin: China
Certification: ISO, CE
Model Number: T 800Q
Payment & Shipping Terms
Packaging Details: sea worthy exporting package
Delivery Time: 30-40 days
Payment Terms: L/C, T/T
Product Description

Super-Fast Thermal CTP equipment with 256 Diodes and online autoloader

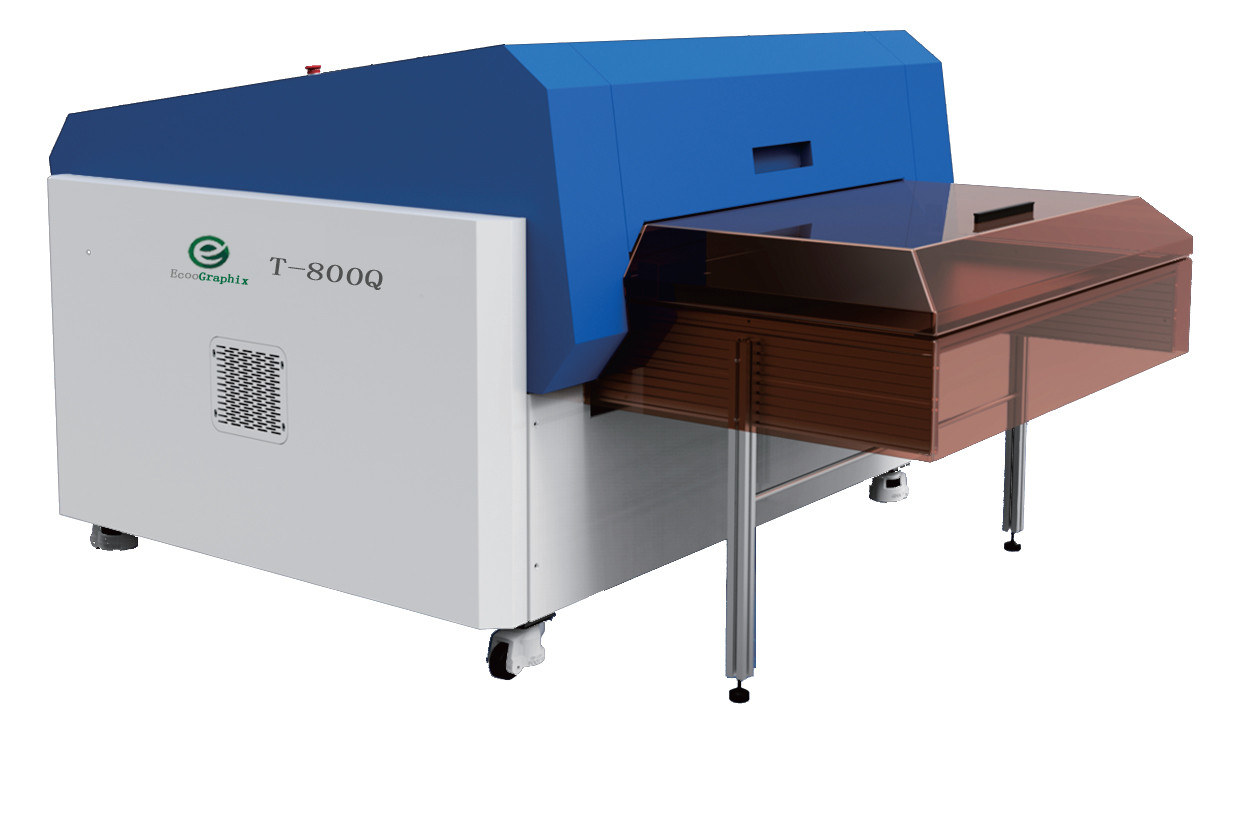

The Super fast CTP model, EcooSetter T-800Q, with 256 channels and 55 pph output, all in one model including CTP imager, punching machine, autoloader.


Model EcooSetter T-800 Q Weight 2000 kgs
Image system 256 channels Size 2018mm*2701mm*1180mm
Throughput 55 plates per hour Power Supply Single phase:220AC, +6%, -10%, Power consumption:4kw
Repeatability ±5μm Environment Recommended:21-25ºC, max:18-26ºC, humidity:40-70%
Plate thickness 0.15mm to 0.3mm Laser type semiconductor laser
Resolutions 2400 dpi Laser wavelength 825nm
Plate size(max) 1163 mm*940mm Plate size (min) 400mm*300mm
Plate loading Highly automatic Brand Ecoographix or OEM

256 Channel Super Fast Thermal CTP Equipment 0
3 speed settings for this model

models and speed T800 QF T800 QS T800 QE
  55 PPH 45PPH 35 PPH

Outstanding features

RIP imaging system with 256 laser diodes maket the plate making performance stable and high-speed.
Linear motor drive also has extremely stable operation and high positioning accuracy, providing the guarantee for high precision and accurate printing.
Equipped with automatic plate loading and unloading, automatic feeding and punching function, it can work contiously without any interruption to maximize the performance.
Use digital square screen imageing to reduce the image loss and significantly and increase the printing resistance.

Delivery & Package
Any kinds of transpotation is workable for us. The nearest departure port is Shanghai port or Ningbo Port.
The equipment is packed in standard wood carton for exporting use with enough protective layers.


1. How long is the lead time?
The lead time for each CTP machine is normally 30 days. We can accelerate for emergency cases.

2. How long is the warranty period?
Ecoographix gurantees 3 years of warranty for laser head and spare parts. Lifetime warranty also is available in conjunction with our plate.

3. Is there any certification for your CTP machine?
Yes, All our CTP machines have been certified by SGS and CE.

4. Do you have accompanying plate products to make an easy purchase for some end users?
Yes, we have qualified CTP/CTcP plates at most favourite price. In addition, blanket, ink, developer, processors are also in our business range.

5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping.

6. What are your main products ?
Generally, we manage two types of products: prepress equipments and consumables, postpress equipments and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.

7. Can you offer some successful installation for reference?
Yes, we achieve great success in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa, etc, with the great assisstance of our dealers. If you have any concern about the quality or service, you can contact them by your own.

8. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.

9. What about the Installation and after-sales technician support?
Our engineer are all Ecan go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.

10. Where is your factory?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory at any time!

More information, please contact:
Miss Candy Wang
HangZhou Ecoographix Digital Technology Co.,LTD.
Mobile: +86-150-5708-5561
