Dynamic Auto Focus UV Thermal CTP Machine

1 UNIT
MOQ
Negotiable
Price
Dynamic Auto Focus UV Thermal CTP Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model: T-800
Speed: Max. 28 Piece Per Hour
Max. Imaging Area: 1130mm*920mm
Min Imaging Size: 400mm*300mm
Image System: 64 Diodes
Laser Wavelength: 830nm
Plate Thickness: 0.15mm-0.3mm
High Light:

uv ctp equipment

,

dynamic auto focus ctp machine

Basic Infomation
Place of Origin: CHINA
Brand Name: Ecoographix
Certification: ISO, CE
Model Number: UV-800
Payment & Shipping Terms
Packaging Details: wooden case, standard packaing, sea worthy package
Delivery Time: 20-40 days
Payment Terms: L/C, T/T
Supply Ability: 6000 SET PER YEAR
Product Description

CTCP Thermal image working platesetter UV CTP equipment computer to plate

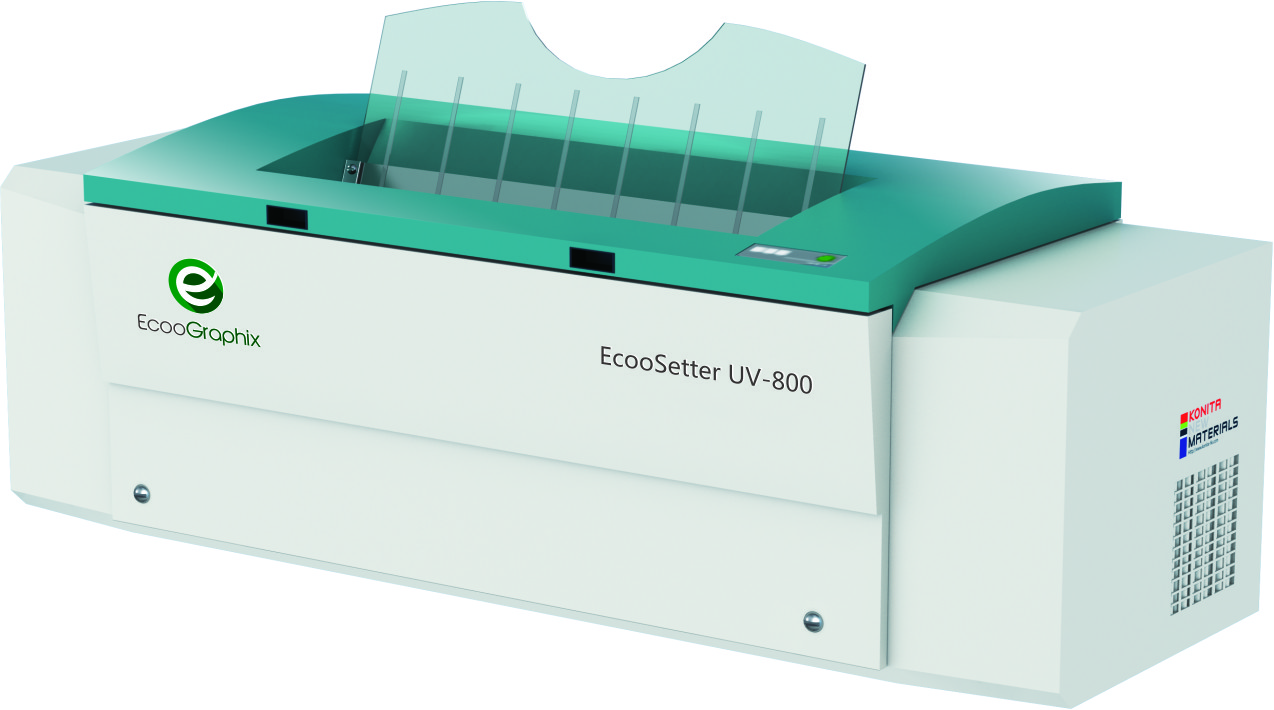

The most popular well-respond model: EcooSetter UV-800 CTCP, with 3 speed setting.
Features

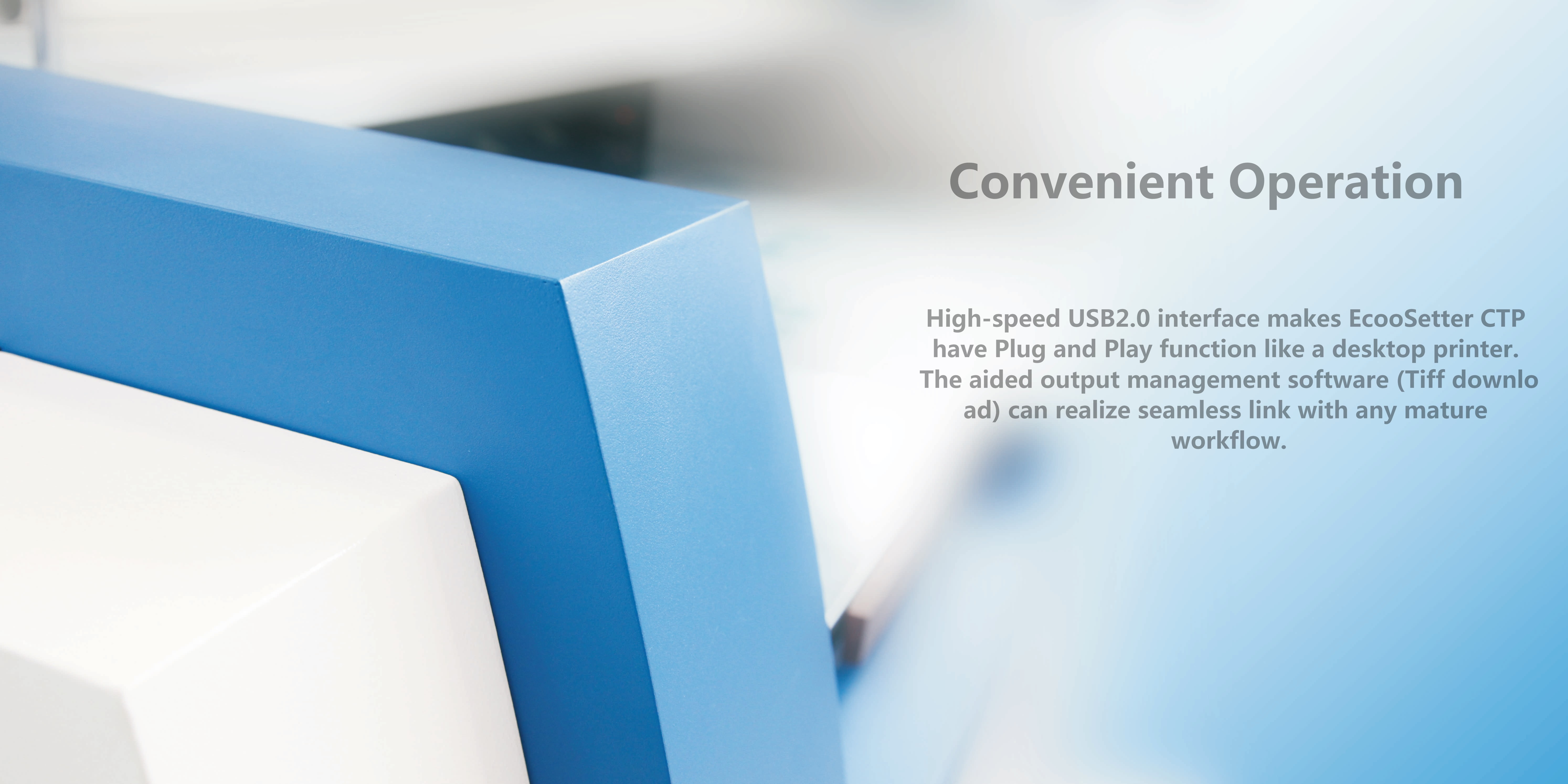

Easy and confortable operation system, multi lauguage

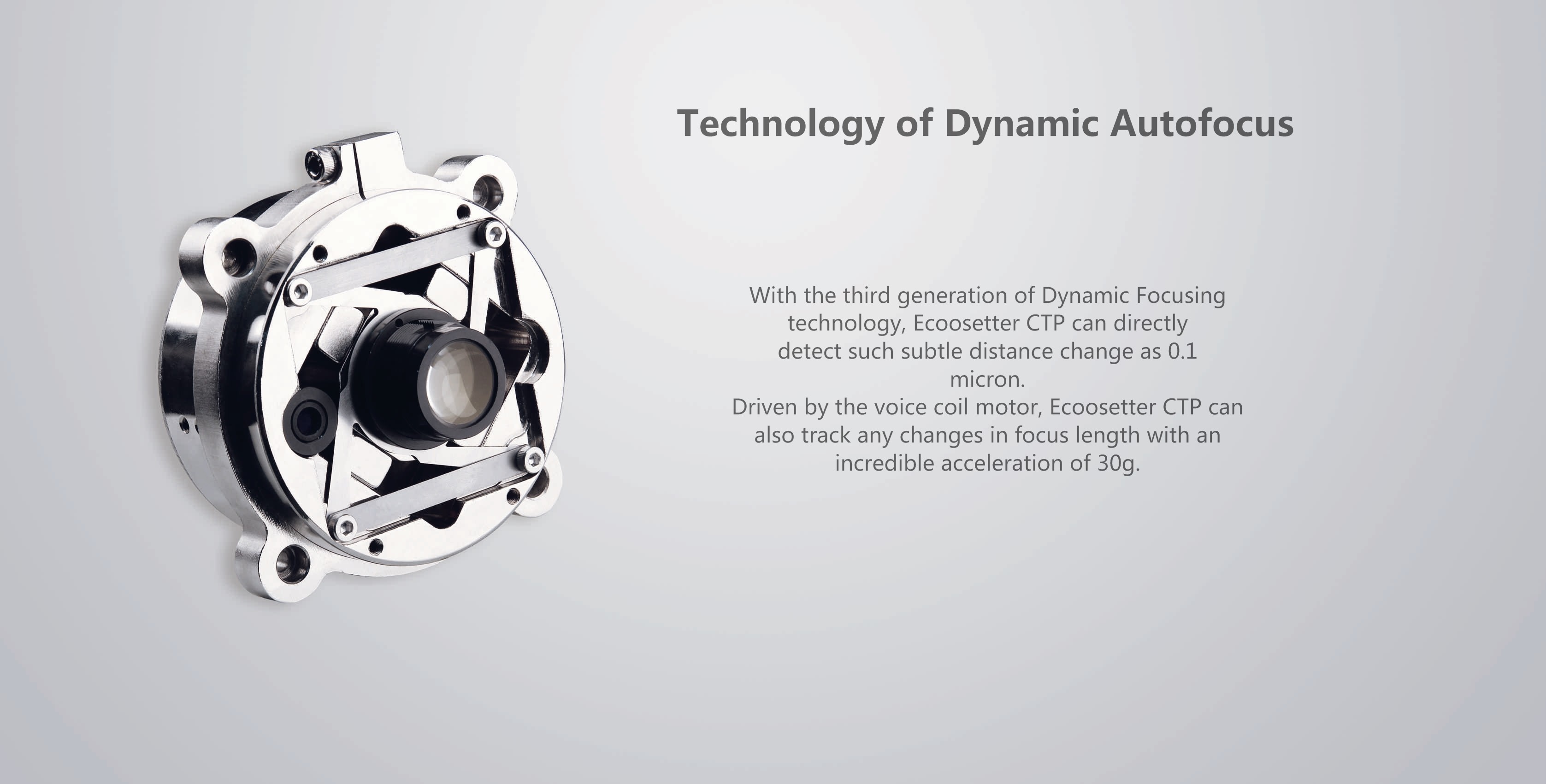

Dynamic Autofocus

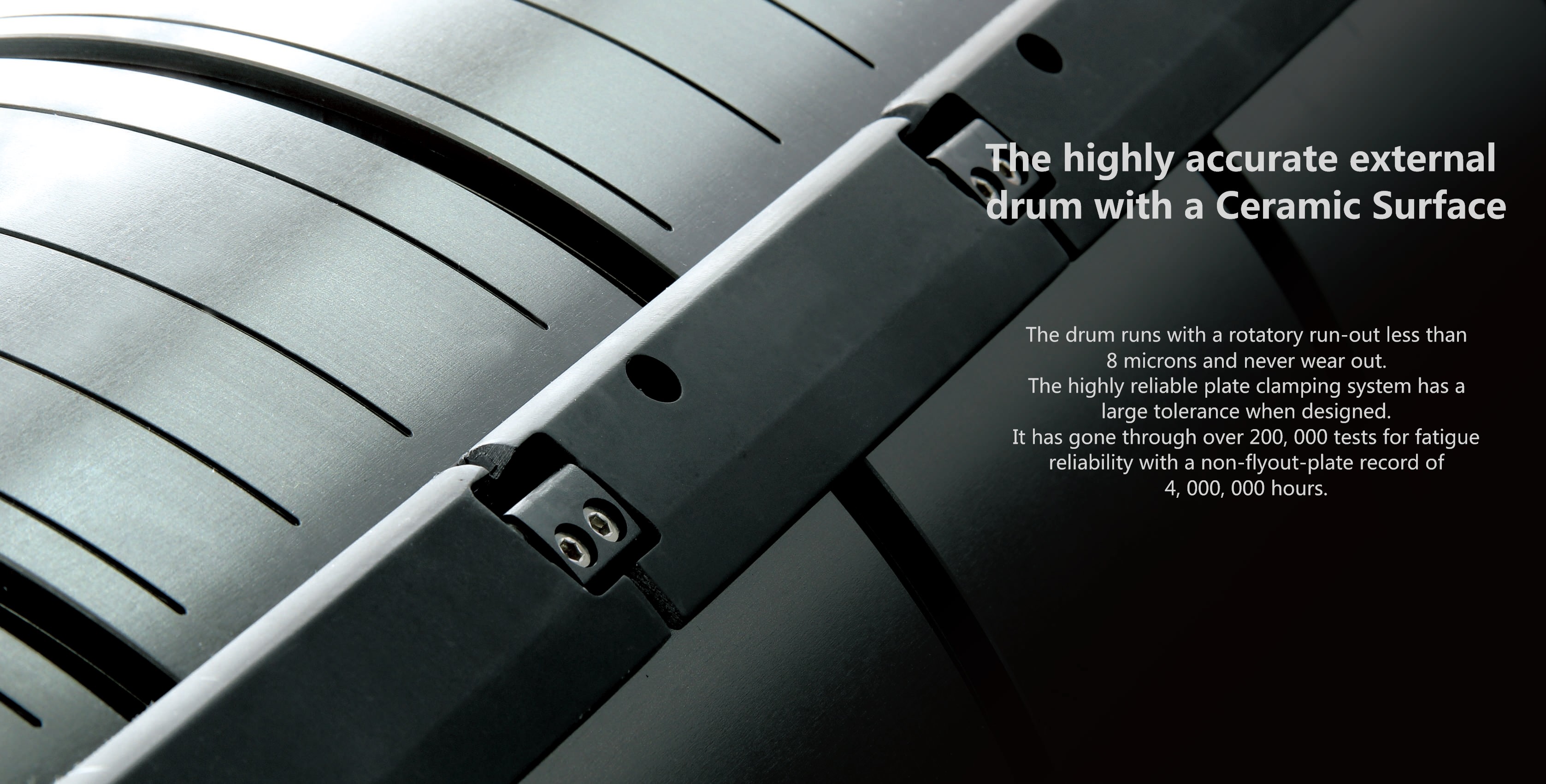

External drum and auto switch of laser beam
DDS frequency multiplication and drum auto balance

Configurations:

Model Ecoosetter UV-800F Ecoosetter UV-800S Ecoosetter UV-800E
imaging system (Channel) 64 channels 48 channels 32 channels
Throughput (plates/hour) 28 pph 800mm*660mm/2400 dpi 22 pph 800mm*660mm/2400 dpi 16 pph 800mm*660mm/2400 dpi
Laser wavelength 400-410 nm
Plate type 405 nm CTCP plate
Plate size Max. 1130*920mm Min. 400mm*300mm
Plate thickness 0.15mm-0.30mm
Plate loading Semi automatic
Revolution 2400 dpi
Repeatability ±5μm(Continuous exposing for four times or above the same plate with a temperature of 23 ℃ and humidity of 60%)
Device Size 2320mm*1080mm*920mm(W*D*H)
Net weight 900 kg
Power Supply Single phase:220AC,+6%,-10%, power consumption: 4kw
Environment Recommended temperture:21-25℃,Max. 18-26%, Humudity:10%-80%


Factory and Package
The factory located in Hangzhou. Most available port of shipment is Shanghai port and Ningbo Port. We welcome your visiting any any time.
The sea worthy package for exporting purpose, standard packages with enough protective layers.


Dynamic Auto Focus UV Thermal CTP Machine 0Dynamic Auto Focus UV Thermal CTP Machine 1
Distribution newwork around the world

Dynamic Auto Focus UV Thermal CTP Machine 2
FAQ:
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, blankets, postpress Packing equipments and so on. There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our Technician Support service and product performance. We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
Lifetime warranty will be offered only when the machine users use our plate meanwhile.
4. What is the Lead Time?
Usually 25 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
