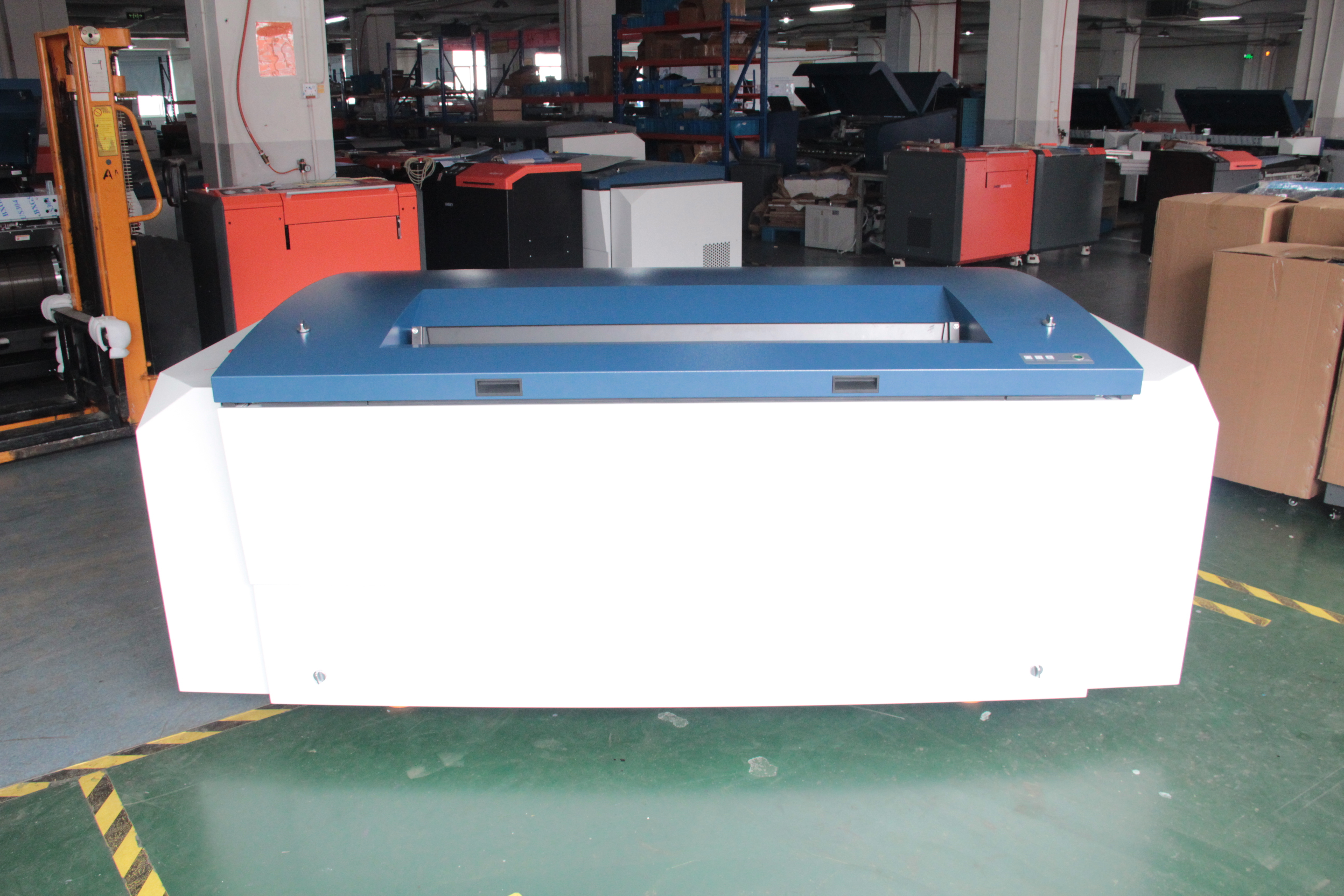

Ecoosetter Automatic Thermal CTP Plate Making Machine

1
MOQ
Negotiable
Price
Ecoosetter Automatic Thermal CTP Plate Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Style: CTP Machine
Automatic Grade: Automatic
Transport Package: Wooden Case
Trademark: EcooGraphix
Origin: China
Highlight:

1.6CBM 3D Sand Printer

,

400DPI 3D Sand Mold Printer

,

0.5mm 3D Sand Mold Printer
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Payment & Shipping Terms
Delivery Time: 45 days
Supply Ability: 500 pieces
Product Description

Product Description
Prepress CTP plate making machines :
Thermal CTP/UV CTP/Flexo CTP with the speed 16PPH to 55PPH, OEM for Press in USA and Fufilm. Our 256CH laser head can make the screen dots similar to Kodak's square dots.


EcooGraphix Thermal Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly by the CTP machine and save the film and labor.

By EcooGraphix CTP, the customer can get Excellent output image quality, highly reliable stability, less space occupied with more flexibility.
EcooGraphix T800 series Manual Thermal CTP are for A1 or B1 paper size , Maximum size of plate: 1,163×940mm,with the output speed 16 to 28 plates per hour.

Specification



ECOO T800/400 Series Thermal CTP Specifications
Model T-800F T-800S T-800E T-400F T-400S T-400E
Exposing Mothod External Drum
Imaging System 64-channel 48-channel 32-channel 48-channel 32-channel 24-channel
  Discrete 830nm laser diode
Throughput 28plates/hour 22plates/hour 16plates/hour 28plates/hour 22plates/hour 16plates/hour
  1030mm x 800mm, 2400dpi 800mm x 660mm ,2400dpi
Plate Sizes Max.1163mm x 940mm
Min.300mm x 260mm		 Max.890mm x 660mm
Min. 260mm x 300mm
Exposing Size Max.1130mm x 884mm
Min.260mm x 284mm		 Max.800mm x 646mm
Min. 260mm x 284mm
Media Type positive 830nm thermal CTP plate
Plate Thickness 0.14mm to 0.30mm
Resolution 2400dpi
Repeatablity ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface USB 2.0
Plate Loading semi automatic
Net Weight 900kg 800kg
Machine Size
(WxLxH)mm		 2530x1050x950 1900x1200x1000
Power Supply single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation
Environment		 recommended:21-25ºC, Max.18-26ºC, humidity:40-70%
