Home /Products/CTP Plate Machine/22pph Computer to Plate Platesetter Thermal CTP for Packaging Printing

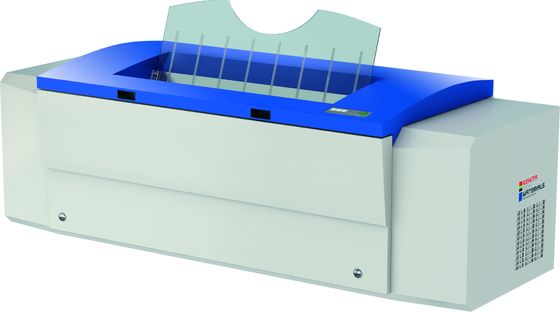

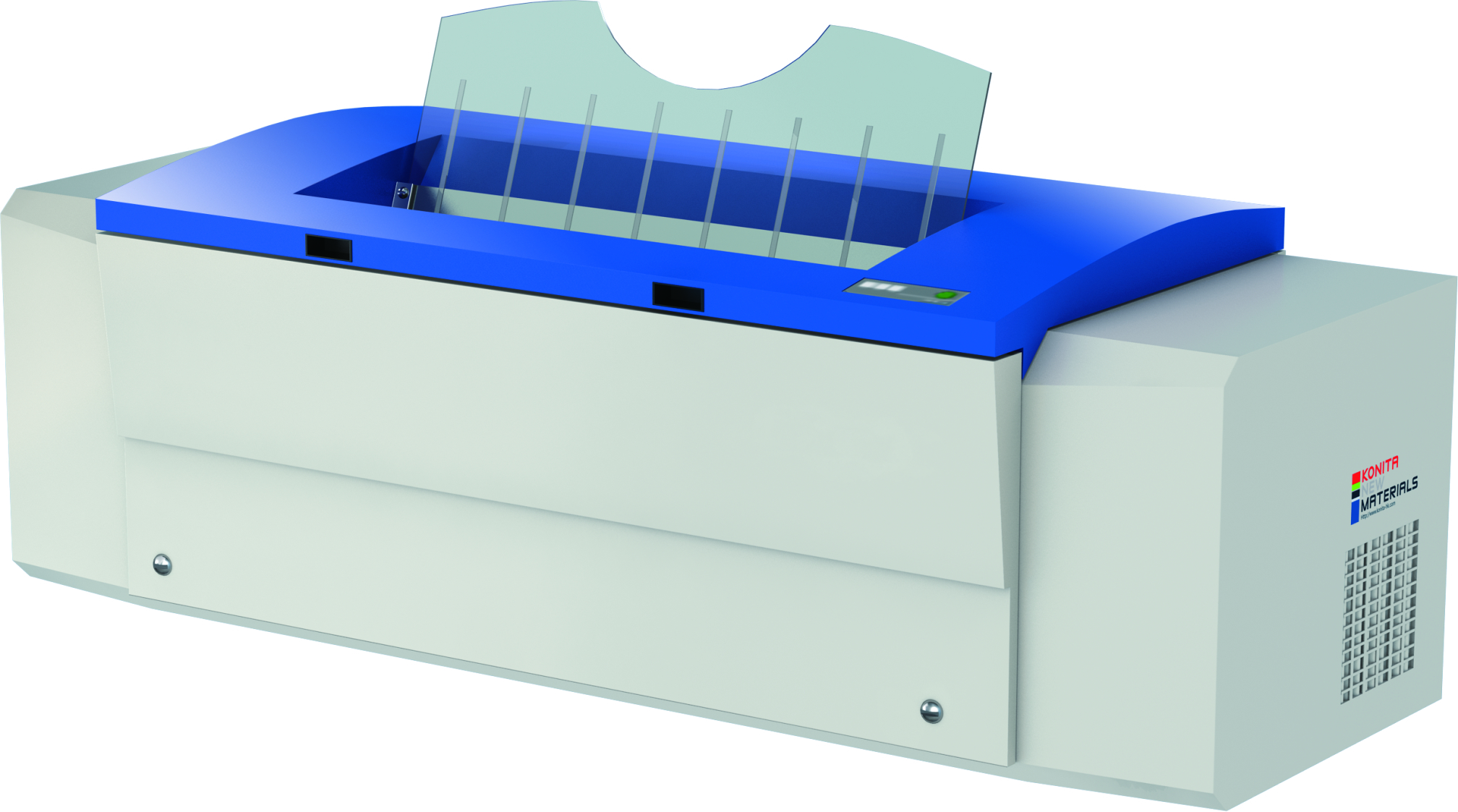

22pph Computer to Plate Platesetter Thermal CTP for Packaging Printing

1
MOQ
Negotiable
Price
22pph Computer to Plate Platesetter Thermal CTP for Packaging Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Style: CTP Machine
Automatic Grade: Automatic
Transport Package: Wooden Case
Trademark: EcooGraphix
Origin: China
Highlight:

automatic 3d sand printer

,

3d sand mold printer

,

SS 3D Sand Mold Printer
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: T-400E,S,F
Payment & Shipping Terms
Delivery Time: 45 days
Supply Ability: 500 pieces per year
Product Description

EcooGraphix Manual Thermal CTP Plate Making Machine 4up Series

Product Description

The CTP Plate Machine is an advanced thermal Computer-to-Plate system designed to meet the rigorous demands of modern digital printing operations. This high-performance solution delivers exceptional resolution and consistent quality through precision laser exposure technology, capable of handling large-format plates up to 800mm x 660mm. Featuring a user-friendly USB 2.0 interface, the system integrates seamlessly with existing workflows while its intelligent auto-sensing, auto-positioning, and auto-calibration functions ensure maximum accuracy with minimal manual intervention. By eliminating traditional plate-making processes, this innovative solution significantly reduces production costs and improves operational efficiency. The machine's reliable performance and maintenance-friendly design make it particularly suitable for commercial printers, packaging manufacturers, and newspaper operations seeking to upgrade their digital capabilities while maintaining the highest standards of print quality and consistency.
Specification
EcooGraphix 400 CTP Series Specifications
Model T-400F T-400S T-400E
Imaging System 48 32 24
Output Speed 28 22 16
800mm x 600mm / 2400dpi
Plate Size Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 800KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 1900×1200×1000mm(W×D×H)
Power Supply single-phase: 260AC, +6%-10%; Power Conumption: 4KW
Environment recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH
