Quick Short - Run Offset Printing Prepress Thermal CTP Machine

Quick Short - Run Offset Printing Prepress Thermal CTP Machine
Features Gallery Product Description Request A Quote
Model: Thermal 800 Series
Speed: 16/22/28 Pph
Max. Imaging Size: 1163mm*940mm
Min. Imaging Size: 400mm*300mm
Machine Dimension: 2320mm*1080mm*960mm
Laser Wavelength: 830 Nm
High Light:

offset printing ctp equipment


thermal computer to plate machine

Basic Infomation
Place of Origin: CHINA
Brand Name: Ecoographix
Certification: ISO, CE
Model Number: T 800
Payment & Shipping Terms
Packaging Details: wooden case, standard packaing, sea worthy package
Delivery Time: 20-40 days
Payment Terms: L/C, T/T
Supply Ability: 6000 SET PER YEAR
Product Description

Thermal CTP Machine image working platesetter machine computer to plate image converting


EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.
EcooGraphix T800series thermal CTP are for A2 or B2 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual,very easy to use.



Model Ecoosetter T-800F Ecoosetter T-800S Ecoosetter T-800E
imaging system (Channel) 64 channels 48 channels 32 channels
Throughput (plates/hour) 28 pph 1030mm*800mm/2400 dpi 22 pph 1030mm*800mm/2400 dpi 16 pph 1030mm*800mm/2400 dpi
Laser wavelength 830 nm
Plate type 830 nm thermal plate
Plate size Max. 1130mm*920mm Min. 400mm*300mm
Plate thickness 0.15mm-0.30mm
Plate loading Semi Automatic
Revolution 2400 dpi
Repeatability ±5μm(Continuous exposing for four times or above the same plate with a temperature of 23 ℃ and humidity of 60%)
Device Size 1900mm*1200mm*1000mm(W*D*H)
Net weight 800 kg
Power Supply Single phase:220AC,+6%,-10%, power consumption: 4kw
Environment Recommended temperture:21-25℃,Max. 18-26%, Humudity:10%-80%

Quick Short - Run Offset Printing Prepress Thermal CTP Machine 0

Quick Short - Run Offset Printing Prepress Thermal CTP Machine 1
External drum and auto switch of laser beam

Quick Short - Run Offset Printing Prepress Thermal CTP Machine 2

DDS frequency multiplication and drum auto balance

Quick Short - Run Offset Printing Prepress Thermal CTP Machine 3

Easy and confortable operation system


Quick Short - Run Offset Printing Prepress Thermal CTP Machine 4
Factory and certificate

The factory located in Hangzhou. Most available port of shipment is Shanghai port and Ningbo Port. We welcome your visiting any any time.
The sea worthy package for exporting purpose, standard packages with enough protective layers.
Quick Short - Run Offset Printing Prepress Thermal CTP Machine 5

Quick Short - Run Offset Printing Prepress Thermal CTP Machine 6
Distribution newwork around the world


1. How long is the lead time?
The lead time for each CTP machine is normally 30 days. We can accelerate for emergency cases.

2. How long is the warranty period?
Ecoographix gurantees 3 years of warranty for laser head and spare parts.

3. Is there any certification for your CTP machine?
Yes, All our CTP machines have been certified by SGS and CE.

4. Do you have accompanying plate products to make an easy purchase for some end users?
Yes, we have qualified CTP/CTcP plates at most favourite price. In addition, blanket, ink, developer, processors are also in our business range.

5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping.

6. What are your main products ?
Generally, we manage two types of products: prepress equipments and consumables, postpress equipments and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.

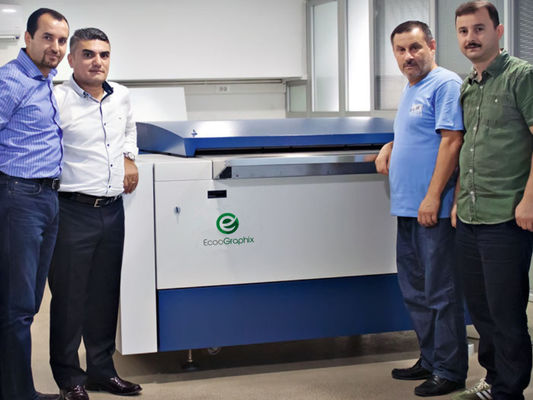

7. Can you offer some successful installation for reference?
Yes, we achieve great success in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa, etc, with the great assisstance of our dealers. If you have any concern about the quality or service, you can contact them by your own.

8. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.

9. What about the Installation and after-sales technician support?
Our engineer are all Ecan go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.

10. Where is your factory?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory at any time!
