Automatic Perfect Book Binding Machine Saddle Stitching Binder
Pearls 8000-Reliable and Efficient Solution for Your Perfect Saddle Stitching Products
No matter whether it is medium or short runs such as brochures, or long runs such as magazines, saddle stitching is always a flexible, practical and cost-effective way of binding. A number of product models in saddle stitching series can meet the diverse needs of different customers, among which you can always find a product that suits you best.
These cost-effective solutions offered can greatly shorten the preparation time and ensure reliable production, even in dealing with all kinds of widths. They can enable you to become an expert in post printing processes, bring you all kinds of value-added opportunities and improve the profitability of production.

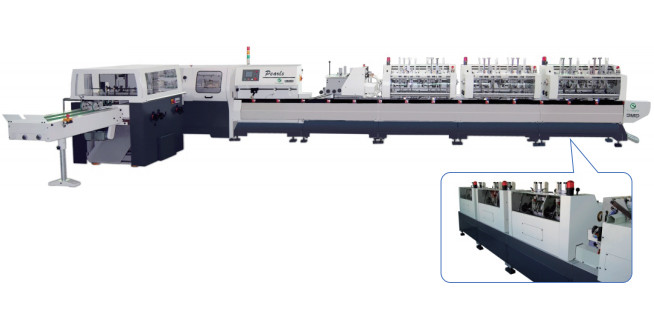

The automatic saddle stitching system Pearls-8000 provides a cost-effective solution from signature gathering, stitching to trimming. The clearly arranged, compact design and central touch screen control allow the machine operator to monitor current production conveniently. Simple operation combined with the space saving layout makes this machine an ideal choice for commercial runs.
Easy operation with touch screen control and large viewing windows
Space saving layout with simple operation
Reliable feeding, stitching, and trimming quality
Fast make-ready by position indicators
Machine Model
Pearls-8000
Max. Mechanical Speed :8000 cycles/h
Max. Untrimmed Book Size(a×b):365×305mm
Min. Untrimmed Book Size(a×b):110×85mm
Max. Trimmed Book Size(a×b):365×300mm
Min. Trimmed Book Size(a×b):105×65mm
Max. Stitching Thickness(c):5mm
Power Required:12.5kw
Machine Weight:3,880kg
Machine Dimensions(L×W×H):8300×4500×1400mm
1. Twin Feeder
Up to four compact twin feeders with large capacity flat pile hoppers can be equipped to ensure large and consistent output. Signatures with low/high folio laps or even laps in a wide range of formats can be opened by grippers or vacuum system. 1:1 or 1:2 speed modes can be chosen.
2. Folder Feeder
After the cover is scored along a predetermined line, it is folded along the scored line, fed onto the gathering chain and transported to the saddle stitcher.
3. Stitching Section
Up to four Deluxe stitching heads can be mounted on the Pearls-8000. Honher stitching heads are offered as an option. During operation the stitching heads are traveling back and forth together with the signatures.
4. Three-knife Trimmer
The three-knife trimmer is quick and easy to set up using handwheels with position indicators. Products are trimmed precisely and reliably right from the start-up. First the head and foot is trimmed, and then the book is delivered to the front cut knife where a precise side cut is made.
5. Stream Delivery
The completely trimmed books are gently carried by the transport belt into the stream delivery process.
